AVV50

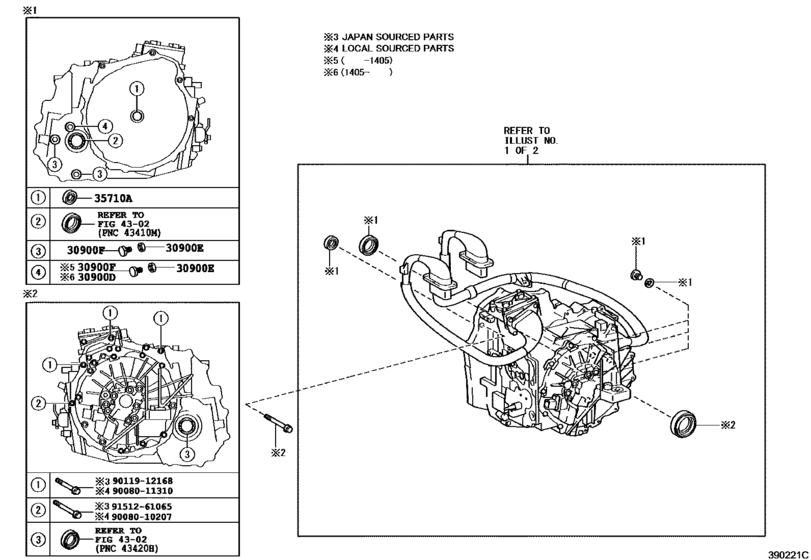

Transaxle Assy, Hv Or Fcv ([10.2011 - ] (1110- )AVV50) 9
| # | OEM | Part name |
|---|---|---|
| 30900 | 90341-18016 | Plug, W/head Straight Screw(For Transaxle Housing & Case) |
| 30900 | 90341-18078 | Plug, W/head Straight Screw(For Transaxle Housing & Case) |
| 30900 | 90430-18008 | Gasket |
| 30900 | 90430-T0021 | Gasket(For Manual Transmission Filler Plug) |
| 35710 | 90311-25027 | Seal, Type T Oil(For Hybrid Vehicle Transmission Assy) |
| 9008010207 | 90080-10207 | Bolt(For Transaxle & Engine Setting) |
| 9008011310 | 90080-11310 | Bolt(For Transaxle & Engine Setting) |
| 9011912168 | 90119-12168 | Bolt(For Transaxle & Engine Setting) |
| 9151261065 | 91512-61065 | Bolt(For Transaxle & Engine Setting) |
| OEM | Part name | Category |
|---|---|---|
| 90080-10207 | Bolt(For Transaxle & Engine Setting) | Transaxle Assy, Hv Or Fcv ([10.2011 - ] (1110- )AVV50) |
| 90080-11310 | Bolt(For Transaxle & Engine Setting) | Transaxle Assy, Hv Or Fcv ([10.2011 - ] (1110- )AVV50) |
| 90119-12168 | Bolt(For Transaxle & Engine Setting) | Transaxle Assy, Hv Or Fcv ([10.2011 - ] (1110- )AVV50) |
| 90311-25027 | Seal, Type T Oil(For Hybrid Vehicle Transmission Assy) | Transaxle Assy, Hv Or Fcv ([10.2011 - ] (1110- )AVV50) |
| 90341-18016 | Plug, W/head Straight Screw(For Transaxle Housing & Case) | Transaxle Assy, Hv Or Fcv ([10.2011 - ] (1110- )AVV50) |
| 90341-18078 | Plug, W/head Straight Screw(For Transaxle Housing & Case) | Transaxle Assy, Hv Or Fcv ([10.2011 - ] (1110- )AVV50) |
| 90430-18008 | Gasket | Transaxle Assy, Hv Or Fcv ([10.2011 - ] (1110- )AVV50) |
| 90430-T0021 | Gasket(For Manual Transmission Filler Plug) | Transaxle Assy, Hv Or Fcv ([10.2011 - ] (1110- )AVV50) |
| 91512-61065 | Bolt(For Transaxle & Engine Setting) | Transaxle Assy, Hv Or Fcv ([10.2011 - ] (1110- )AVV50) |
