Search › Model › AVV50
AVV50

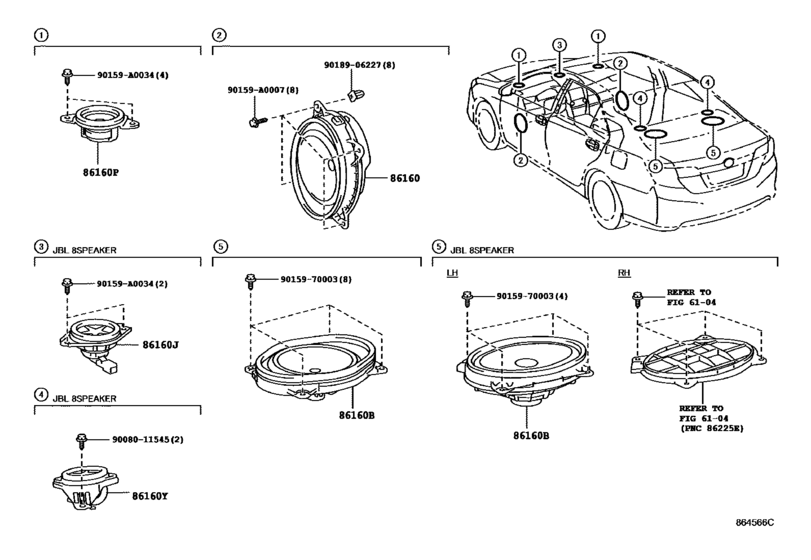

Speaker ([09.2011 - 09.2014] (1109-1409)) 8
| # | OEM | Part name |
|---|---|---|
| 86160 | 86160-06390 | Speaker Assy, Front No.1 |
| 86160 | 86160-06450 | Speaker Assy, Rear |
| 86160 | 86160-06380 | Speaker Assy, Front No.2 |
| 90159 | 90159-A0007 | New Genuine Part |
| 90159 | 90159-A0034 | SCREW WWASHER |
| 9008011545 | 90080-11545 | New Genuine Part |
| 9015970003 | 90159-70003 | Bolt, W/washer |
| 9018906227 | 90189-06227 | GROMMET SCREW |
| OEM | Part name | Category |
|---|---|---|
| 86160-06380 | Speaker Assy, Front No.2 | Speaker ([09.2011 - 09.2014] (1109-1409)) |
| 86160-06390 | Speaker Assy, Front No.1 | Speaker ([09.2011 - 09.2014] (1109-1409)) |
| 86160-06450 | Speaker Assy, Rear | Speaker ([09.2011 - 09.2014] (1109-1409)) |
| 90080-11545 | New Genuine Part | Speaker ([09.2011 - 09.2014] (1109-1409)) |
| 90159-70003 | Bolt, W/washer | Speaker ([09.2011 - 09.2014] (1109-1409)) |
| 90159-A0007 | New Genuine Part | Speaker ([09.2011 - 09.2014] (1109-1409)) |
| 90159-A0034 | SCREW WWASHER | Speaker ([09.2011 - 09.2014] (1109-1409)) |
| 90189-06227 | GROMMET SCREW | Speaker ([09.2011 - 09.2014] (1109-1409)) |
