AVV50

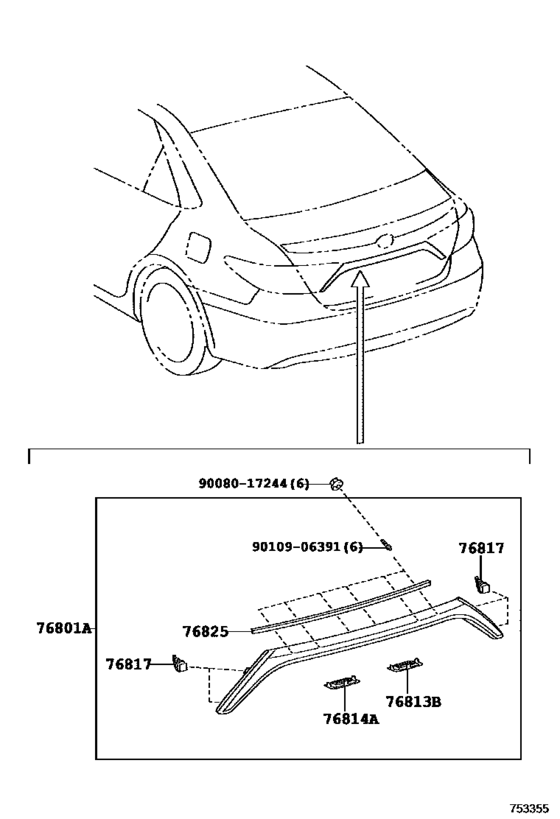

Rear Moulding ([12.2016 - ] (1612- )) 9
| # | OEM | Part name |
|---|---|---|
| 76801 | 76801-06A80 | Garnish Sub-Assy, Luggage Compartment Door, Outside |
| 76801 | 76801-06A81 | Garnish Sub-Assy, Luggage Compartment Door, Outside |
| 76813 | 76813-06010 | Garnish, Luggage Compartment Door Outside, Upper Rh |
| 76814 | 76814-06010 | Garnish, Luggage Compartment Door Outside, Upper Lh |
| 76817 | 76817-07010 | Clip, Luggage Compartment Door Moulding - BACK DOOR OUTSIDE GARNISH |
| 76817 | 76817-12060 | Clip, Back Door Outside Garnish |
| 76825 | 76825-06190 | Protector, Back Door Outside Garnish |
| 76825 | 76825-06290 | Protector, Back Door Outside Garnish |
| 9008017244 | 90080-17244 | NUT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 76801-06A80 | Garnish Sub-Assy, Luggage Compartment Door, Outside | Rear Moulding ([12.2016 - ] (1612- )) |
| 76801-06A81 | Garnish Sub-Assy, Luggage Compartment Door, Outside | Rear Moulding ([12.2016 - ] (1612- )) |
| 76813-06010 | Garnish, Luggage Compartment Door Outside, Upper Rh | Rear Moulding ([12.2016 - ] (1612- )) |
| 76814-06010 | Garnish, Luggage Compartment Door Outside, Upper Lh | Rear Moulding ([12.2016 - ] (1612- )) |
| 76817-07010 | Clip, Luggage Compartment Door Moulding - BACK DOOR OUTSIDE GARNISH | Rear Moulding ([12.2016 - ] (1612- )) |
| 76817-12060 | Clip, Back Door Outside Garnish | Rear Moulding ([12.2016 - ] (1612- )) |
| 76825-06190 | Protector, Back Door Outside Garnish | Rear Moulding ([12.2016 - ] (1612- )) |
| 76825-06290 | Protector, Back Door Outside Garnish | Rear Moulding ([12.2016 - ] (1612- )) |
| 90080-17244 | NUT FLANGE | Rear Moulding ([12.2016 - ] (1612- )) |
