AVV50

Toyota CAMRY-VISTA-AURION · 2011 · 5,315 parts · 389 categories

← Back to categories

5,315 items

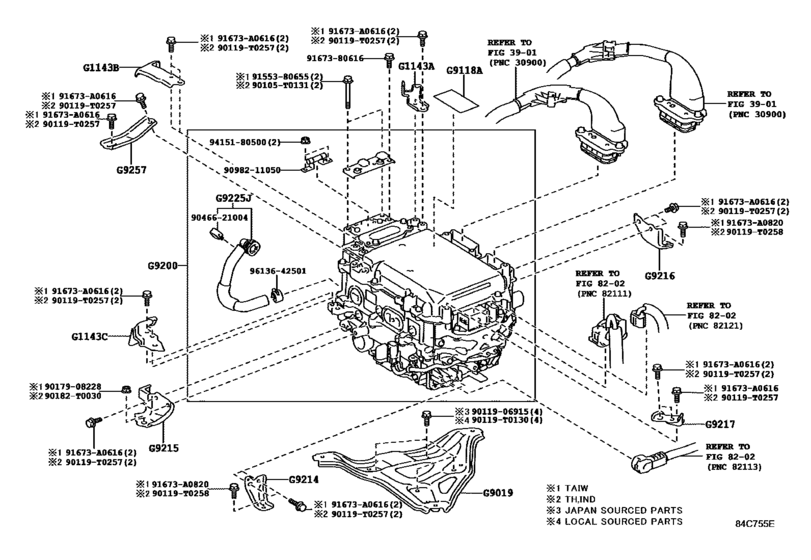

Hv Inverter ([02.2012 - ] (1202- )AVV50) 15

#	OEM	Part name
90105	90105-T0131	New Genuine Part
90119	90119-T0130	New Genuine Part
90119	90119-06915	BOLT W-WASHER
90119	90119-T0257	New Genuine Part
90119	90119-T0258	New Genuine Part
90182	90182-T0030	New Genuine Part
91673	91673-A0616	BOLT, FLANGE
91673	91673-A0820	BOLT FLANGE
9017908228	90179-08228	NUT
9046621004	90466-21004	Clamp Or Clip, Hose(For Water By-Pass Hose)
9098211050	90982-11050	Fuse, High Voltage
9155380655	91553-80655	New Genuine Part
9167380616	91673-80616	Bolt, W/washer
9415180500	94151-80500	New Genuine Part
9613642501	96136-42501	Clip(For Ventilation Hose)

OEM	Part name	Category
90105-T0131	New Genuine Part	Hv Inverter ([02.2012 - ] (1202- )AVV50)
90119-06915	BOLT W-WASHER	Hv Inverter ([02.2012 - ] (1202- )AVV50)
90119-T0130	New Genuine Part	Hv Inverter ([02.2012 - ] (1202- )AVV50)
90119-T0257	New Genuine Part	Hv Inverter ([02.2012 - ] (1202- )AVV50)
90119-T0258	New Genuine Part	Hv Inverter ([02.2012 - ] (1202- )AVV50)
90179-08228	NUT	Hv Inverter ([02.2012 - ] (1202- )AVV50)
90182-T0030	New Genuine Part	Hv Inverter ([02.2012 - ] (1202- )AVV50)
90466-21004	Clamp Or Clip, Hose(For Water By-Pass Hose)	Hv Inverter ([02.2012 - ] (1202- )AVV50)
90982-11050	Fuse, High Voltage	Hv Inverter ([02.2012 - ] (1202- )AVV50)
91553-80655	New Genuine Part	Hv Inverter ([02.2012 - ] (1202- )AVV50)
91673-80616	Bolt, W/washer	Hv Inverter ([02.2012 - ] (1202- )AVV50)
91673-A0616	BOLT, FLANGE	Hv Inverter ([02.2012 - ] (1202- )AVV50)
91673-A0820	BOLT FLANGE	Hv Inverter ([02.2012 - ] (1202- )AVV50)
94151-80500	New Genuine Part	Hv Inverter ([02.2012 - ] (1202- )AVV50)
96136-42501	Clip(For Ventilation Hose)	Hv Inverter ([02.2012 - ] (1202- )AVV50)
