Search › Model › AVV50
AVV50

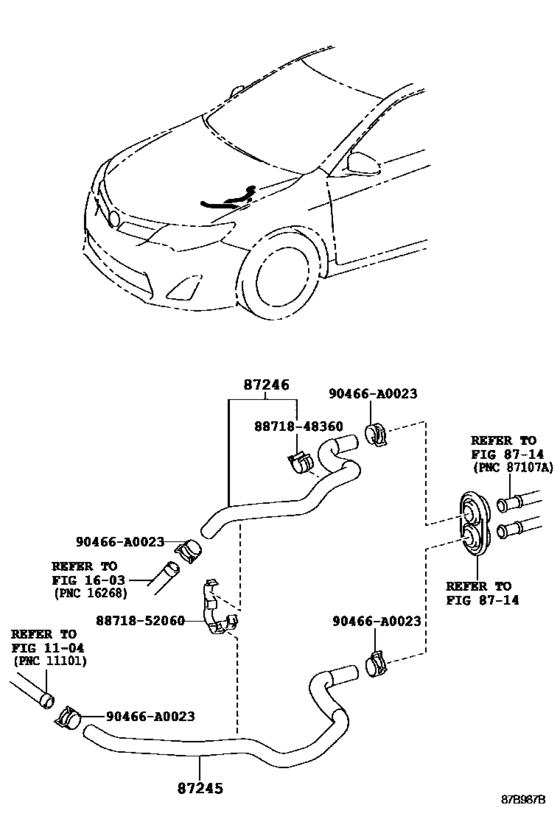

Heating & Air Conditioning - Water Piping ([10.2011 - ] (1110- )AVV50) 5
| # | OEM | Part name |
|---|---|---|
| 87245 | 87245-06850 | Hose, Heater Water, Inlet |
| 87246 | 87245-06860 | Hose, Heater Water, Outlet |
| 90466 | 90466-A0023 | Clip(For Water By-Pass Hose Assy) |
| 8871848360 | 88718-48360 | Clip Or Clamp (For Heater Water Hose) |
| 8871852060 | 88718-52060 | Pipe, Cooler Refrigerant Suction, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 87245-06850 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([10.2011 - ] (1110- )AVV50) |
| 87245-06860 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([10.2011 - ] (1110- )AVV50) |
| 88718-48360 | Clip Or Clamp (For Heater Water Hose) | Heating & Air Conditioning - Water Piping ([10.2011 - ] (1110- )AVV50) |
| 88718-52060 | Pipe, Cooler Refrigerant Suction, No.2 | Heating & Air Conditioning - Water Piping ([10.2011 - ] (1110- )AVV50) |
| 90466-A0023 | Clip(For Water By-Pass Hose Assy) | Heating & Air Conditioning - Water Piping ([10.2011 - ] (1110- )AVV50) |
