AVV50

Toyota CAMRY-VISTA-AURION · 2011 · 5,315 parts · 389 categories

← Back to categories

5,315 items

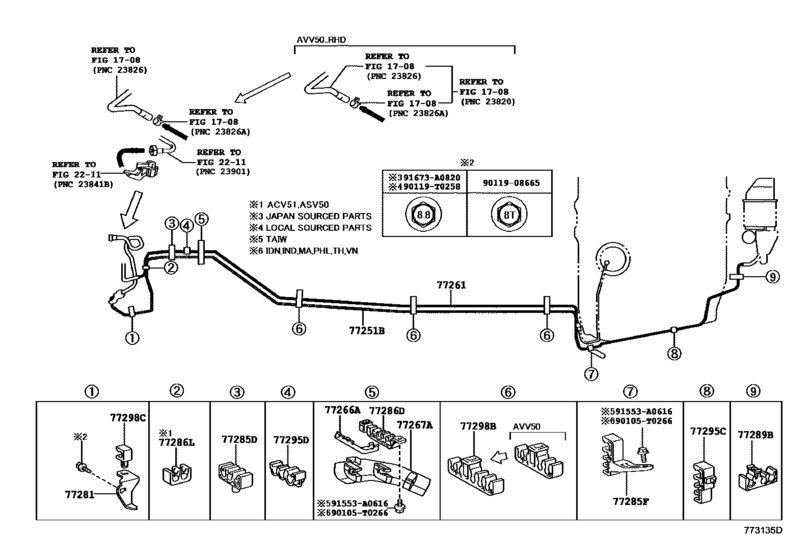

Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50) 18

#	OEM	Part name
77251	77251-06310	Tube, Fuel Main
77261	77261-06370	Tube Sub-Assy, Fuel Emission
77266	77266-33050	Protector, Fuel Tube, No.1
77267	77267-33040	Protector, Fuel Tube, No.2
77281	77281-06090	Bracket, Fuel Main Tube, No.1
77285	77285-33060	Clamp, Fuel Tube, No.1
77285	77299-33040	Clamp, Fuel Tube, No.1
77286	77286-33040	Clamp, Fuel Tube, No.2
77289	77289-33050	Clamp, Fuel Tube, No.3
77295	77295-33020	Grommet, Fuel Tube
77295	77295-42030	Grommet, Fuel Tube
77298	77298-33060	Clamp, Fuel Tube, No.4
77298	77298-30170	Clamp, Fuel Tube, No.3
90105	90105-T0266	New Genuine Part
90119	90119-T0258	New Genuine Part
91553	91553-A0616	New Genuine Part
91673	91673-A0820	BOLT FLANGE
9011908665	90119-08665	BOLT

OEM	Part name	Category
77251-06310	Tube, Fuel Main	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
77261-06370	Tube Sub-Assy, Fuel Emission	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
77266-33050	Protector, Fuel Tube, No.1	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
77267-33040	Protector, Fuel Tube, No.2	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
77281-06090	Bracket, Fuel Main Tube, No.1	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
77285-33060	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
77286-33040	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
77289-33050	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
77295-33020	Grommet, Fuel Tube	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
77295-42030	Grommet, Fuel Tube	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
77298-30170	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
77298-33060	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
77299-33040	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
90105-T0266	New Genuine Part	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
90119-08665	BOLT	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
90119-T0258	New Genuine Part	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
91553-A0616	New Genuine Part	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
91673-A0820	BOLT FLANGE	Fuel Tank & Tube ([12.2011 - ] FUEL TUBE (1112- )ACV51,ASV50,AVV50)
