| 77249-06080 |
Hose, Fuel Emission |

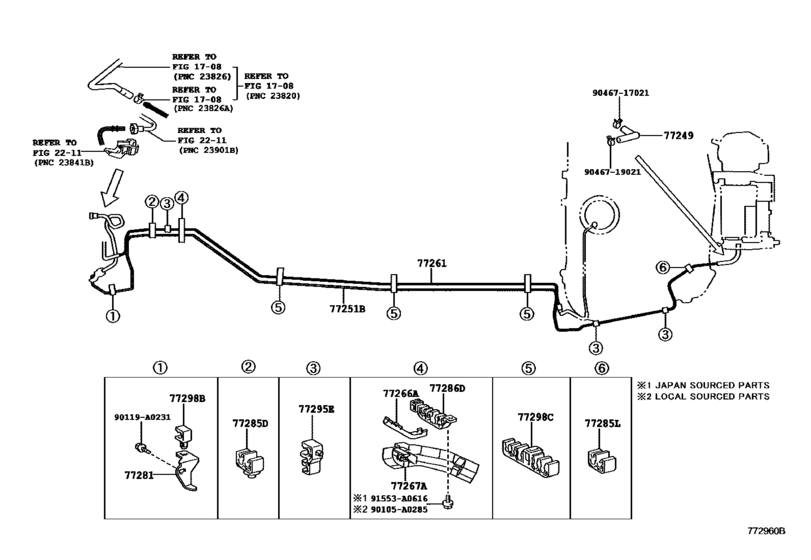

Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 77251-06130 |
Tube, Fuel Main |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 77261-06220 |
Tube Sub-Assy, Fuel Emission |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 77266-07010 |
Protector, Fuel Tube, No.1 |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 77267-33040 |
Protector, Fuel Tube, No.2 |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 77281-06020 |
Bracket, Fuel Main Tube, No.1 |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 77285-06100 |
Clamp, Fuel Tube, No.1 |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 77286-06060 |
Clamp, Fuel Tube, No.2 |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 77286-75010 |
Clamp, Fuel Tube, No.2 |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 77295-06050 |
Grommet, Fuel Tube |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 77298-06080 |
Clamp, Fuel Tube, No.4 |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 77298-30170 |
Clamp, Fuel Tube, No.3 |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 90105-A0285 |
New Genuine Part |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 90119-A0231 |
New Genuine Part |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 90467-17021 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 90467-19021 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
| 91553-A0616 |
New Genuine Part |
Fuel Tank & Tube ([10.2011 - ] FUEL TUBE (1110- )AVV50) |
