Search › Model › AVV50

AVV50

Toyota CAMRY-VISTA-AURION · 2011 · 5,315 parts · 389 categories

5,315 items

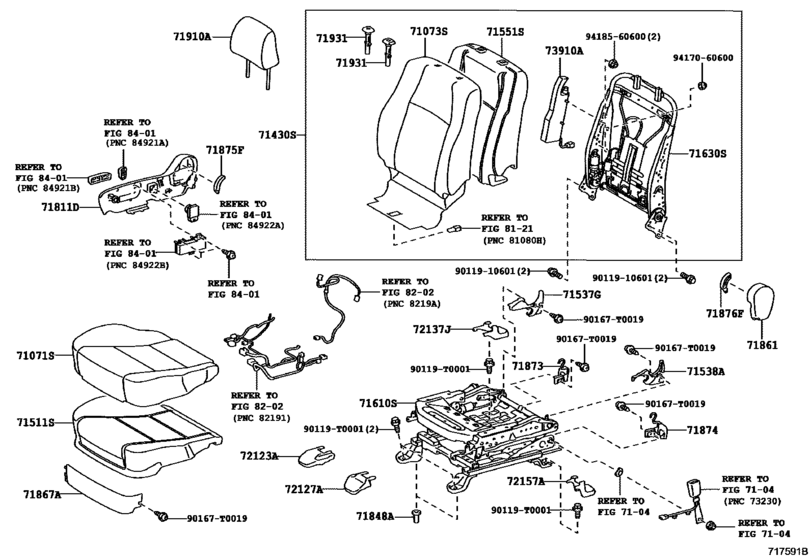

Front Seat & Seat Track ([03.2012 - ] *DRS W(SRS SIDE AIR BAG & *PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN) 38

#	OEM	Part name
71071	71071-06L51-C0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-06L51-C4	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-06Q80-C2	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0X020-C0	Cover, Front Seat Back, Rh(For Separate Type)
71430	71430-06K72-C0	Back Assy, Front Seat, Rh(For Separate Type)
71430	71430-06U20-C0	Back Assy, Front Seat, Rh(For Separate Type)
71511	71511-06750	Pad, Front Seat Cushion, Rh(For Separate Type)
71537	71537-06170-C0	Protector, Front Seat Cushion Edge, Rh(For Rh Seat)
71538	71538-06150-C0	Protector, Front Seat Cushion Edge, Lh(For Rh Seat)
71551	71551-06650	Pad, Front Seat Back, Rh(For Separate Type)
71610	71610-06611	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71630	71630-06830	Spring Assy, Front Seat Back, Rh(For Separate Type)
71811	71811-06540-C0	Shield, Front Seat Cushion, Rh
71848	71848-47010	Cap, Seat Adjuster Cover, Rh
71861	71861-06210-C0	Shield, Front Seat Cushion, Inner Rh
71867	71867-06180-C0	Shield, Front Seat Cushion, Inner No.1 Rh
71873	71873-06540	Shield, Front Seat Cushion, Lower Rh
71874	71874-06560	Shield, Front Seat Cushion, Lower Lh
71875	71875-06500-C0	Cover, Reclining Adjuster Inside, Rh (For Rh Seat)
71876	71876-06530-C0	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)
71910	71910-06A22-C2	Headrest Assy, Front Seat
71910	71910-06A23-C7	Headrest Assy, Front Seat
71910	71910-06A31-C0	Headrest Assy, Front Seat
71910	71910-06A32-C4	Headrest Assy, Front Seat
71931	71930-02370-C0	Support, Front Seat Headrest
71931	71930-06040-C0	Support, Front Seat Headrest
71931	71931-02130-C0	Support, Front Seat Headrest
72123	72123-06090-C0	Cover, Seat Track Bracket, Outer Front Rh
72127	72127-06090-C0	Cover, Seat Track Bracket, Inner Front Rh
72137	72137-06220-C0	Cover, Front Seat Track, Rh Rear Outer
72157	72157-06170-C0	Cover, Seat Track Bracket, Inner Rh
73910	73910-06100	Air Bag Assy, Front Seat, Rh
73910	73910-33030	Air Bag Assy, Front Seat, Rh
90119	90119-T0001	BOLTWWSH
90167	90167-T0019	SCREW PAN TAPPING
9011910601	90119-10601	BOLT W-WASHER
9417060600	94170-60600	NUT CAP
9418560600	94185-60600	Nut, Wire Adjusting, No.1

OEM	Part name	Category
71071-06L51-C0	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71071-06L51-C4	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71073-06Q80-C2	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71073-0X020-C0	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71430-06K72-C0	Back Assy, Front Seat, Rh(For Separate Type)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71430-06U20-C0	Back Assy, Front Seat, Rh(For Separate Type)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71511-06750	Pad, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71537-06170-C0	Protector, Front Seat Cushion Edge, Rh(For Rh Seat)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71538-06150-C0	Protector, Front Seat Cushion Edge, Lh(For Rh Seat)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71551-06650	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71610-06611	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71630-06830	Spring Assy, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71811-06540-C0	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71848-47010	Cap, Seat Adjuster Cover, Rh	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71861-06210-C0	Shield, Front Seat Cushion, Inner Rh	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71867-06180-C0	Shield, Front Seat Cushion, Inner No.1 Rh	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71873-06540	Shield, Front Seat Cushion, Lower Rh	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71874-06560	Shield, Front Seat Cushion, Lower Lh	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71875-06500-C0	Cover, Reclining Adjuster Inside, Rh (For Rh Seat)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71876-06530-C0	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71910-06A22-C2	Headrest Assy, Front Seat	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71910-06A23-C7	Headrest Assy, Front Seat	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71910-06A31-C0	Headrest Assy, Front Seat	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71910-06A32-C4	Headrest Assy, Front Seat	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71930-02370-C0	Support, Front Seat Headrest	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71930-06040-C0	Support, Front Seat Headrest	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
71931-02130-C0	Support, Front Seat Headrest	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
72123-06090-C0	Cover, Seat Track Bracket, Outer Front Rh	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
72127-06090-C0	Cover, Seat Track Bracket, Inner Front Rh	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
72137-06220-C0	Cover, Front Seat Track, Rh Rear Outer	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
72157-06170-C0	Cover, Seat Track Bracket, Inner Rh	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
73910-06100	Air Bag Assy, Front Seat, Rh	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
73910-33030	Air Bag Assy, Front Seat, Rh	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
90119-10601	BOLT W-WASHER	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
90119-T0001	BOLTWWSH	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
90167-T0019	SCREW PAN TAPPING	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
94170-60600	NUT CAP	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
94185-60600	Nut, Wire Adjusting, No.1	Front Seat & Seat Track ([03.2012 - ] DRS W(SRS SIDE AIR BAG & PSE) (1203- )ASV51..TH ; (1203- )AVV50..MA ; (1 203- )ASV50..MA,TH ; (1502- ) G..IDN)
