Search › Model › AVV50

AVV50

Toyota CAMRY-VISTA-AURION · 2011 · 5,315 parts · 389 categories

5,315 items

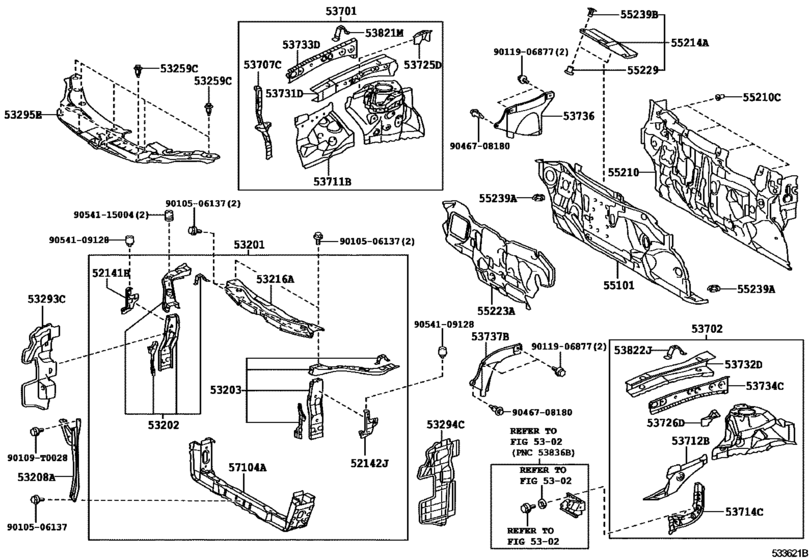

Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD) 42

#	OEM	Part name
52141	52141-06140	Arm, Front Bumper, Upper Rh
52142	52142-06120	Arm, Front Bumper, Upper Lh
53201	53201-06262	Support Sub-Assy, Radiator
53202	53202-06171	Support Sub-Assy, Radiator, Rh
53203	53203-06212	Support Sub-Assy, Radiator, Lh
53208	53208-06121	Support Sub-Assy, Hood Lock
53216	53216-06170	Support, Radiator, Upper
53259	90467-07217	Clip, Radiator Support To Frame Seal
53293	53293-06440	Deflector, Radiator Side, Rh
53294	53294-06440	Deflector, Radiator Side, Lh
53295	53295-06160	Seal, Cool Air Intake Duct
53701	53701-06210	Apron Sub-Assy, Front Fender, Rh
53702	53702-06190	Apron Sub-Assy, Front Fender, Lh
53707	53707-06040	Extension Sub-Assy, Front Fender Apron, Front Rh
53711	53711-06160	Apron, Front Fender, Front Rh
53712	53712-06120	Apron, Front Fender, Front Lh
53714	53714-06130	Extension, Front Fender Apron, Front Lh
53725	53725-06070	Reinforcement, Front Spring Support, No.2 Rh
53726	53726-06080	Apron, Front Fender No.2 Side, Lh
53731	53731-06170	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-06160	Member, Front Apron To Cowl Side, Upper Lh
53733	53733-06130	Member, Front Apron To Cowl Side, Lower Front Rh
53734	53734-06130	Member, Front Apron To Cowl Side, Lower Front Lh
53736	53736-06090	Seal, Front Fender Apron, Rh
53737	53737-06110	Seal, Front Fender Apron, Lh
53821	53821-06100	Bracket, Front Fender, Rear No.1 Rh
53822	53822-06100	Bracket, Front Fender, Rear No.1 Lh
55101	55101-06540	Panel Sub-Assy, Dash
55210	55210-06371	Insulator Assy, Dash Panel
55210	90467-T0032	Clip
55214	55214-06110	Pad, Dash Panel Insulator, No.2
55223	55223-06410	Insulator, Dash Panel, Outer
55229	55229-48020	Plate, Dash Panel Insulator, No.4
55239	55239-33020	Plate, Dash Panel Insulator, No.3
55239	55239-48020	Plate, Dash Panel Insulator, No.3
57104	57104-06031	Member Sub-Assy, Front Cross
90109	90109-T0028	BOLT
9010506137	90105-06137	BOLT, WASHER BASED H
9011906877	90119-06877	BOLT WWASHER
9046708180	90467-08180	Clip(For Front Bumper Retainer)
9054109128	90541-09128	Cushion(For Back Door Panel)
9054115004	90541-15004	Cushion, Hood Bumper

OEM	Part name	Category
52141-06140	Arm, Front Bumper, Upper Rh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
52142-06120	Arm, Front Bumper, Upper Lh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53201-06262	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53202-06171	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53203-06212	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53208-06121	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53216-06170	Support, Radiator, Upper	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53293-06440	Deflector, Radiator Side, Rh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53294-06440	Deflector, Radiator Side, Lh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53295-06160	Seal, Cool Air Intake Duct	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53701-06210	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53702-06190	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53707-06040	Extension Sub-Assy, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53711-06160	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53712-06120	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53714-06130	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53725-06070	Reinforcement, Front Spring Support, No.2 Rh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53726-06080	Apron, Front Fender No.2 Side, Lh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53731-06170	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53732-06160	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53733-06130	Member, Front Apron To Cowl Side, Lower Front Rh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53734-06130	Member, Front Apron To Cowl Side, Lower Front Lh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53736-06090	Seal, Front Fender Apron, Rh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53737-06110	Seal, Front Fender Apron, Lh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53821-06100	Bracket, Front Fender, Rear No.1 Rh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
53822-06100	Bracket, Front Fender, Rear No.1 Lh	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
55101-06540	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
55210-06371	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
55214-06110	Pad, Dash Panel Insulator, No.2	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
55223-06410	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
55229-48020	Plate, Dash Panel Insulator, No.4	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
55239-33020	Plate, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
55239-48020	Plate, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
57104-06031	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
90105-06137	BOLT, WASHER BASED H	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
90109-T0028	BOLT	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
90119-06877	BOLT WWASHER	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
90467-07217	Clip, Radiator Support To Frame Seal	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
90467-08180	Clip(For Front Bumper Retainer)	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
90467-T0032	Clip	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
90541-09128	Cushion(For Back Door Panel)	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)
90541-15004	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )AVV50..RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 389
Collected: 2026-08-02
