AVV50

Toyota CAMRY-VISTA-AURION · 2011 · 5,315 parts · 389 categories

5,315 items

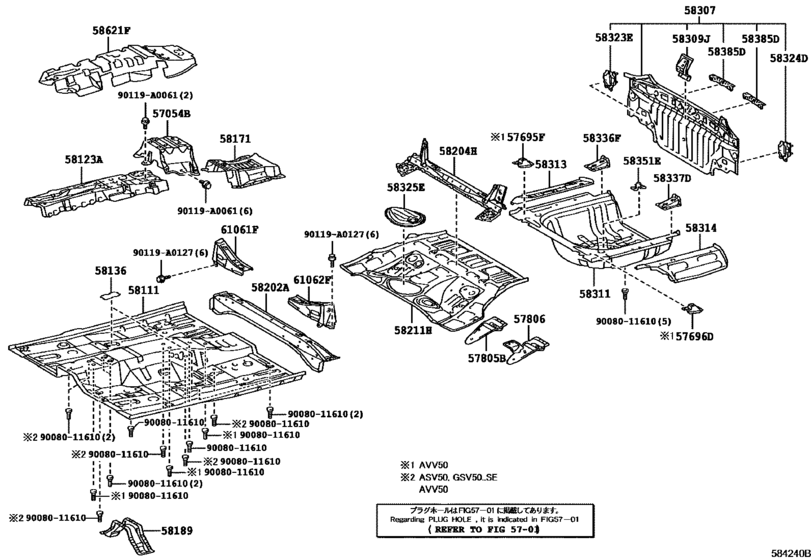

Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409)) 38

#	OEM	Part name
57054	57054-06040	Reinforcet Sub-Assy, Cross Member Floor, No.4
57695	57695-06020	Extension, Rear Floor Crossmember Rear Side, Rh
57696	57696-06010	Extension, Rear Floor Crossmember Rear Side, Lh
57805	57805-06020	Reinforcement Sub-Assy, Belt Anchor, Rh
57806	57806-06020	Reinforcement Sub-Assy, Belt Anchor, Lh
58111	58111-06060	Pan, Front Floor
58111	58111-06061	Pan, Front Floor
58123	58013-06050	Support, Shift & Select Lever
58136	58136-06050	Cover, Front Floor Hole
58171	58171-06040	Reinforcement, Parking Brake Base
58189	58189-07030	Reinforcement, Exhaust Pipe Clamp Bracket
58189	58189-33050	Reinforcement, Exhaust Pipe Clamp Bracket
58202	58202-06050	Pan Sub-Assy, Center Floor, Front
58204	58204-07010	Pan Sub-Assy, Center Floor, Rear
58211	58211-06211	Pan, Center Floor
58307	58307-06150	Panel Sub-Assy, Body Lower Back
58307	58307-06200	Panel Sub-Assy, Body Lower Back
58309	58309-06090	Retainer Sub-Assy, Luggage Door Lock Striker
58311	58311-06171	Pan, Rear Floor
58313	58313-06130	Panel, Rear Floor Side, Rh
58314	58314-06120	Panel, Rear Floor Side, Lh
58323	58303-06010	Reinforcement, Rear Bumper Arm Support, Rh
58323	58303-06020	Reinforcement, Rear Bumper Arm Support, Rh
58324	58304-06020	Reinforcement, Rear Bumper Arm Support, Lh
58324	58304-06030	Reinforcement, Rear Bumper Arm Support, Lh
58325	58325-06060	Cover, Rear Floor Service Hole
58325	58325-06061	Cover, Rear Floor Service Hole
58336	58336-06070	Reinforcement, Rear Floor Pan
58351	58351-06030	Bracket, Spare Wheel Clamp
58385	58385-06080	Bracket, Rear Bumper Cover
58385	58385-06130	Bracket, Rear Bumper Cover
58621	58621-06161	Silencer, Center Console, No.1
58621	58621-07020	Silencer, Center Console, No.1
61061	61061-06032	Gusset Sub-Assy, Quarter Wheel House, No.1
61062	61062-06032	Gusset Sub-Assy, Quarter Wheel House, No.2
90119	90119-A0061	New Genuine Part
90119	90119-A0127	New Genuine Part
9008011610	90080-11610	Bolt, Weld(For Front Floor Pan)

OEM	Part name	Category
57054-06040	Reinforcet Sub-Assy, Cross Member Floor, No.4	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
57695-06020	Extension, Rear Floor Crossmember Rear Side, Rh	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
57696-06010	Extension, Rear Floor Crossmember Rear Side, Lh	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
57805-06020	Reinforcement Sub-Assy, Belt Anchor, Rh	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
57806-06020	Reinforcement Sub-Assy, Belt Anchor, Lh	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58013-06050	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58111-06060	Pan, Front Floor	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58111-06061	Pan, Front Floor	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58136-06050	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58171-06040	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58189-07030	Reinforcement, Exhaust Pipe Clamp Bracket	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58189-33050	Reinforcement, Exhaust Pipe Clamp Bracket	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58202-06050	Pan Sub-Assy, Center Floor, Front	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58204-07010	Pan Sub-Assy, Center Floor, Rear	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58211-06211	Pan, Center Floor	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58303-06010	Reinforcement, Rear Bumper Arm Support, Rh	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58303-06020	Reinforcement, Rear Bumper Arm Support, Rh	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58304-06020	Reinforcement, Rear Bumper Arm Support, Lh	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58304-06030	Reinforcement, Rear Bumper Arm Support, Lh	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58307-06150	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58307-06200	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58309-06090	Retainer Sub-Assy, Luggage Door Lock Striker	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58311-06171	Pan, Rear Floor	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58313-06130	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58314-06120	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58325-06060	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58325-06061	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58336-06070	Reinforcement, Rear Floor Pan	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58351-06030	Bracket, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58385-06080	Bracket, Rear Bumper Cover	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58385-06130	Bracket, Rear Bumper Cover	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58621-06161	Silencer, Center Console, No.1	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
58621-07020	Silencer, Center Console, No.1	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
61061-06032	Gusset Sub-Assy, Quarter Wheel House, No.1	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
61062-06032	Gusset Sub-Assy, Quarter Wheel House, No.2	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
90080-11610	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
90119-A0061	New Genuine Part	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
90119-A0127	New Genuine Part	Floor Pan & Lower Back Panel ([09.2011 - 09.2014] FLOOR PANEL (1109-1409))
