AVV50

Toyota CAMRY-VISTA-AURION · 2011 · 5,315 parts · 389 categories

← Back to categories

5,315 items

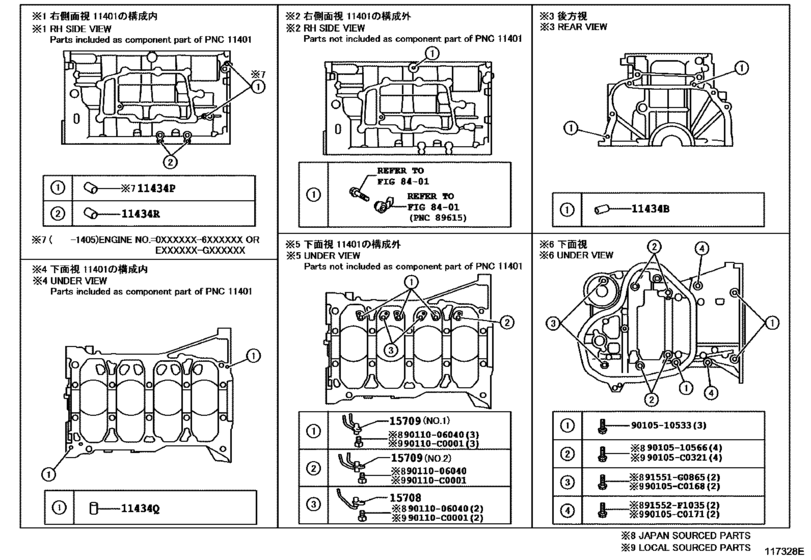

Cylinder Block ([12.2011 - ] (1112- )2AR#) 13

#	OEM	Part name
11434	90250-10113	Pin, Straight(For Timing Gear Cover Set)
11434	90250-06003	Pin, Straight
15708	15708-36010	Nozzle Sub-Assy, Oil, No.1
15709	15709-36010	Nozzle Sub-Assy, Oil, No.2
15709	15709-36020	Nozzle Sub-Assy, Oil, No.2
90105	90105-C0168	New Genuine Part
90105	90105-C0171	New Genuine Part
90110	90110-C0001	New Genuine Part
91551	91551-G0865	Bolt(For Camshaft Bearing Cap To Housing Rh, No.2)
91552	91552-F1035	BOLT FLANGE
9010510533	90105-10533	New Genuine Part
9010510566	90105-10566	New Genuine Part
9011006040	90110-06040	BOLT HEXAGON SOCKET

OEM	Part name	Category
15708-36010	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([12.2011 - ] (1112- )2AR#)
15709-36010	Nozzle Sub-Assy, Oil, No.2	Cylinder Block ([12.2011 - ] (1112- )2AR#)
15709-36020	Nozzle Sub-Assy, Oil, No.2	Cylinder Block ([12.2011 - ] (1112- )2AR#)
90105-10533	New Genuine Part	Cylinder Block ([12.2011 - ] (1112- )2AR#)
90105-10566	New Genuine Part	Cylinder Block ([12.2011 - ] (1112- )2AR#)
90105-C0168	New Genuine Part	Cylinder Block ([12.2011 - ] (1112- )2AR#)
90105-C0171	New Genuine Part	Cylinder Block ([12.2011 - ] (1112- )2AR#)
90110-06040	BOLT HEXAGON SOCKET	Cylinder Block ([12.2011 - ] (1112- )2AR#)
90110-C0001	New Genuine Part	Cylinder Block ([12.2011 - ] (1112- )2AR#)
90250-06003	Pin, Straight	Cylinder Block ([12.2011 - ] (1112- )2AR#)
90250-10113	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([12.2011 - ] (1112- )2AR#)
91551-G0865	Bolt(For Camshaft Bearing Cap To Housing Rh, No.2)	Cylinder Block ([12.2011 - ] (1112- )2AR#)
91552-F1035	BOLT FLANGE	Cylinder Block ([12.2011 - ] (1112- )2AR#)

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 389
Collected: 2026-08-02
