AVV50

Toyota CAMRY-VISTA-AURION · 2011 · 5,315 parts · 389 categories

5,315 items

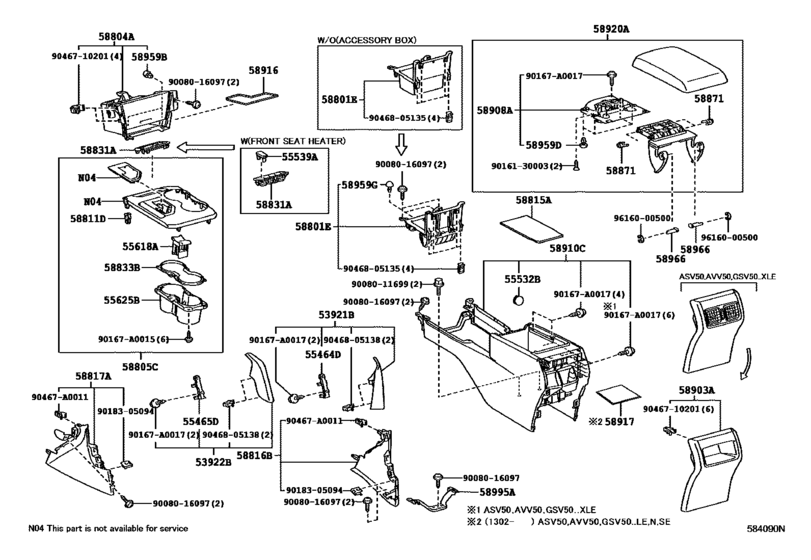

Console Box & Bracket ([09.2011 - 09.2014] (1109-1409)) 52

#	OEM	Part name
53921	53921-06010-C0	Garnish, Front Panel, Rh
53922	53922-06010-C0	Garnish, Front Panel, Lh
55464	55464-06010	Insert, Instrument Panel Lower Pad, Rh
55465	55465-06010	Insert, Instrument Panel Lower Pad, Lh
55532	55532-06010	Cover, Cigar Lighter Hole
55539	55539-52060-C0	Cover, Spare Switch Hole
55618	55618-06050	Holder, Console Box Cup
55625	55625-06100	Tray, Instrument Panel Cup Holder
55625	55625-06110	Tray, Instrument Panel Cup Holder
58801	58801-06181	Box Sub-Assy, Console, Upper
58801	58801-06270	Box Sub-Assy, Console, Upper
58801	58801-06370	Box Sub-Assy, Console, Upper
58804	58804-06241	Panel Sub-Assy, Console, Upper
58804	58804-06251	Panel Sub-Assy, Console, Upper
58804	58804-06252	Panel Sub-Assy, Console, Upper
58804	58804-06370	Panel Sub-Assy, Console, Upper
58805	58805-06351	Panel Sub-Assy, Console, Upper Rear
58805	58805-06600-B0	Panel Sub-Assy, Console, Upper Rear
58811	90467-A0011	Clip, Instrument Panel, No.1
58815	58815-06100	Carpet, Console Box
58816	58816-06050-C0	Insert, Console Box
58816	58816-06080-C0	Insert, Console Box
58817	58817-06040-C0	Insert, Console Box, Front No.2
58817	58817-06130-C0	Insert, Console Box, Front No.2
58831	58831-06600	Garnish, Console Upper Panel, Front
58833	58831-06400	Garnish, Console Upper Panel, No.1
58871	58871-30070	Cushion, Console Box
58903	58903-06141-C0	Panel Sub-Assy, Console Rear End
58908	58908-06081	Lock Sub-Assy, Console Compartment Door
58910	58910-06091-C0	Box Assy, Console, Rear
58910	58910-06170-C0	Box Assy, Console, Rear
58916	58916-06090	Mat, Box Bottom
58916	58916-06110	Mat, Box Bottom
58917	58917-06090	Mat, Box Bottom, No.2
58920	58920-06011-B1	Armrest Assy, Rear Console
58920	58920-06011-C0	Armrest Assy, Rear Console
58920	58920-06021-B3	Armrest Assy, Rear Console
58920	58920-06021-C1	Armrest Assy, Rear Console
58959	58959-60060	Cushion, Instrument Panel
58966	58966-30030	Shaft, Box Door Hinge
58995	58995-06140	Bracket, Console Box Mounting, No.1
58995	58995-06160	Bracket, Console Box Mounting, No.1
90167	90167-A0015	New Genuine Part
90167	90167-A0017	New Genuine Part
9008011699	90080-11699	Bolt, W/washer
9008016097	90080-16097	New Genuine Part
9016130003	90161-30003	SCREW COUNTERSUNK
9018305094	90183-05094	NUT
9046710201	90467-10201	Clip, Cover Sub-Assy, Position Indicator Housing
9046805135	90468-05135	Clip, Instrument Panel
9046805138	90468-05138	Clip, Instrument Panel
9616000500	96160-00500	Ring, E(For Over Center Lever)

OEM	Part name	Category
53921-06010-C0	Garnish, Front Panel, Rh	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
53922-06010-C0	Garnish, Front Panel, Lh	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
55464-06010	Insert, Instrument Panel Lower Pad, Rh	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
55465-06010	Insert, Instrument Panel Lower Pad, Lh	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
55532-06010	Cover, Cigar Lighter Hole	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
55539-52060-C0	Cover, Spare Switch Hole	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
55618-06050	Holder, Console Box Cup	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
55625-06100	Tray, Instrument Panel Cup Holder	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
55625-06110	Tray, Instrument Panel Cup Holder	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58801-06181	Box Sub-Assy, Console, Upper	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58801-06270	Box Sub-Assy, Console, Upper	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58801-06370	Box Sub-Assy, Console, Upper	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58804-06241	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58804-06251	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58804-06252	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58804-06370	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58805-06351	Panel Sub-Assy, Console, Upper Rear	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58805-06600-B0	Panel Sub-Assy, Console, Upper Rear	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58815-06100	Carpet, Console Box	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58816-06050-C0	Insert, Console Box	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58816-06080-C0	Insert, Console Box	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58817-06040-C0	Insert, Console Box, Front No.2	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58817-06130-C0	Insert, Console Box, Front No.2	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58831-06400	Garnish, Console Upper Panel, No.1	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58831-06600	Garnish, Console Upper Panel, Front	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58871-30070	Cushion, Console Box	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58903-06141-C0	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58908-06081	Lock Sub-Assy, Console Compartment Door	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58910-06091-C0	Box Assy, Console, Rear	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58910-06170-C0	Box Assy, Console, Rear	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58916-06090	Mat, Box Bottom	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58916-06110	Mat, Box Bottom	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58917-06090	Mat, Box Bottom, No.2	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58920-06011-B1	Armrest Assy, Rear Console	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58920-06011-C0	Armrest Assy, Rear Console	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58920-06021-B3	Armrest Assy, Rear Console	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58920-06021-C1	Armrest Assy, Rear Console	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58959-60060	Cushion, Instrument Panel	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58966-30030	Shaft, Box Door Hinge	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58995-06140	Bracket, Console Box Mounting, No.1	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
58995-06160	Bracket, Console Box Mounting, No.1	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
90080-11699	Bolt, W/washer	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
90080-16097	New Genuine Part	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
90161-30003	SCREW COUNTERSUNK	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
90167-A0015	New Genuine Part	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
90167-A0017	New Genuine Part	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
90183-05094	NUT	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
90467-10201	Clip, Cover Sub-Assy, Position Indicator Housing	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
90467-A0011	Clip, Instrument Panel, No.1	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
90468-05135	Clip, Instrument Panel	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
90468-05138	Clip, Instrument Panel	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
96160-00500	Ring, E(For Over Center Lever)	Console Box & Bracket ([09.2011 - 09.2014] (1109-1409))
