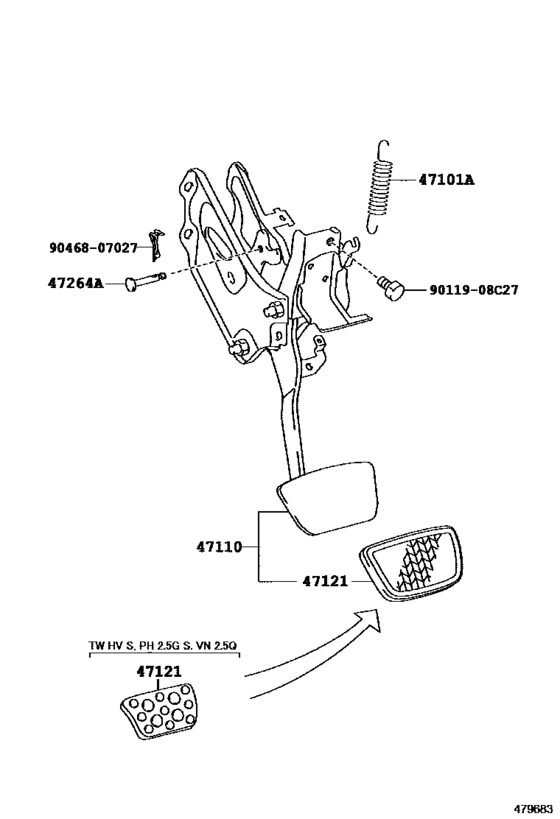

| 47110-33461 |
Support Assy, Brake Pedal |
Brake Pedal & Bracket ([12.2011 - ] (1112- ) ; (1302- )V..TAIW ; (1302- )AC V51,ASV5#..IDN,IND,MA,TAIW,TH,VN ; (1502- )G..IDN ,IND,PHL) |
| 47121-50020 |
Pad, Brake Pedal |
Brake Pedal & Bracket ([12.2011 - ] (1112- ) ; (1302- )V..TAIW ; (1302- )AC V51,ASV5#..IDN,IND,MA,TAIW,TH,VN ; (1502- )G..IDN ,IND,PHL) |
| 90119-08C27 |
BOLT WWASHER |
Brake Pedal & Bracket ([12.2011 - ] (1112- ) ; (1302- )V..TAIW ; (1302- )AC V51,ASV5#..IDN,IND,MA,TAIW,TH,VN ; (1502- )G..IDN ,IND,PHL) |
| 90240-08081 |
Pin(For Push Rod) |
Brake Pedal & Bracket ([12.2011 - ] (1112- ) ; (1302- )V..TAIW ; (1302- )AC V51,ASV5#..IDN,IND,MA,TAIW,TH,VN ; (1502- )G..IDN ,IND,PHL) |
| 90468-07027 |
Clip(For Push Rod Clevis Pin) |
Brake Pedal & Bracket ([12.2011 - ] (1112- ) ; (1302- )V..TAIW ; (1302- )AC V51,ASV5#..IDN,IND,MA,TAIW,TH,VN ; (1502- )G..IDN ,IND,PHL) |
| 90507-12046 |
Spring(For Brake Pedal Return) |
Brake Pedal & Bracket ([12.2011 - ] (1112- ) ; (1302- )V..TAIW ; (1302- )AC V51,ASV5#..IDN,IND,MA,TAIW,TH,VN ; (1502- )G..IDN ,IND,PHL) |
