Search › Model › AVV50
AVV50

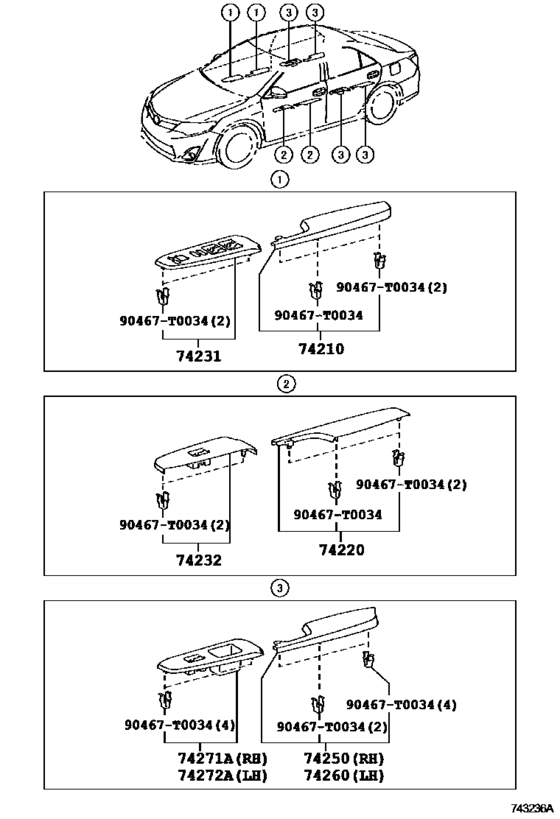

Armrest & Visor ([01.2012 - ] ARMREST (1201- )RHD) 10
| # | OEM | Part name |
|---|---|---|
| 74210 | 74210-06140-C0 | Armrest Assy, Front, Rh |
| 74220 | 74220-06140-C0 | Armrest Assy, Front, Lh |
| 74231 | 74231-06A80-E1 | Panel, Front Armrest Base, Upper Rh |
| 74231 | 74231-06C70-E0 | Panel, Front Armrest Base, Upper Rh |
| 74232 | 74232-06A20-E2 | Panel, Front Armrest Base, Upper Lh |
| 74250 | 74250-06110-C0 | Armrest Assy, Rear Rh |
| 74260 | 74260-06110-C0 | Armrest Assy, Rear Lh |
| 74271 | 74271-06760-E2 | Panel, Rear Door Armrest Base, Upper Rh |
| 74272 | 74272-06760-E2 | Panel, Rear Door Armrest Base, Upper Lh |
| 90467 | 90467-T0034 | Clip (For Quarter Panel Garnish) |
| OEM | Part name | Category |
|---|---|---|
| 74210-06140-C0 | Armrest Assy, Front, Rh | Armrest & Visor ([01.2012 - ] ARMREST (1201- )RHD) |
| 74220-06140-C0 | Armrest Assy, Front, Lh | Armrest & Visor ([01.2012 - ] ARMREST (1201- )RHD) |
| 74231-06A80-E1 | Panel, Front Armrest Base, Upper Rh | Armrest & Visor ([01.2012 - ] ARMREST (1201- )RHD) |
| 74231-06C70-E0 | Panel, Front Armrest Base, Upper Rh | Armrest & Visor ([01.2012 - ] ARMREST (1201- )RHD) |
| 74232-06A20-E2 | Panel, Front Armrest Base, Upper Lh | Armrest & Visor ([01.2012 - ] ARMREST (1201- )RHD) |
| 74250-06110-C0 | Armrest Assy, Rear Rh | Armrest & Visor ([01.2012 - ] ARMREST (1201- )RHD) |
| 74260-06110-C0 | Armrest Assy, Rear Lh | Armrest & Visor ([01.2012 - ] ARMREST (1201- )RHD) |
| 74271-06760-E2 | Panel, Rear Door Armrest Base, Upper Rh | Armrest & Visor ([01.2012 - ] ARMREST (1201- )RHD) |
| 74272-06760-E2 | Panel, Rear Door Armrest Base, Upper Lh | Armrest & Visor ([01.2012 - ] ARMREST (1201- )RHD) |
| 90467-T0034 | Clip (For Quarter Panel Garnish) | Armrest & Visor ([01.2012 - ] ARMREST (1201- )RHD) |
