Search › Model › AVV50
AVV50

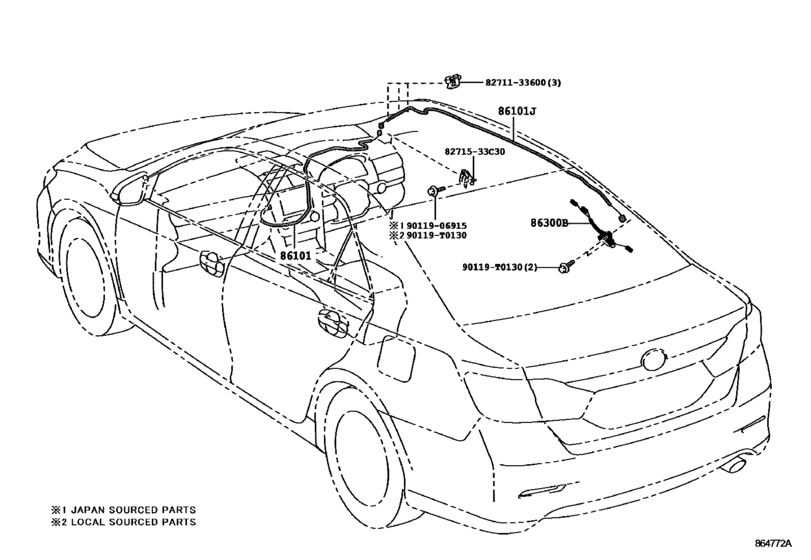

Antenna ([03.2012 - ] (1203- )RHD) 7
| # | OEM | Part name |
|---|---|---|
| 86101 | 86101-33A90 | Cord Sub-Assy, Antenna |
| 86101 | 86101-33A80 | Cord Sub-Assy, Antenna, No.2 |
| 86300 | 86300-06190 | Antenna Assy, Amplifier, No.1 |
| 90119 | 90119-T0130 | New Genuine Part |
| 90119 | 90119-06915 | BOLT W-WASHER |
| 8271533 | 82715-33C30 | Bracket,wiring Harness Clamp |
| 8271133600 | 82711-33600 | Wire, Fuse To Fuse(for Combustion Heater) |
| OEM | Part name | Category |
|---|---|---|
| 82711-33600 | Wire, Fuse To Fuse(for Combustion Heater) | Antenna ([03.2012 - ] (1203- )RHD) |
| 82715-33C30 | Bracket,wiring Harness Clamp | Antenna ([03.2012 - ] (1203- )RHD) |
| 86101-33A80 | Cord Sub-Assy, Antenna, No.2 | Antenna ([03.2012 - ] (1203- )RHD) |
| 86101-33A90 | Cord Sub-Assy, Antenna | Antenna ([03.2012 - ] (1203- )RHD) |
| 86300-06190 | Antenna Assy, Amplifier, No.1 | Antenna ([03.2012 - ] (1203- )RHD) |
| 90119-06915 | BOLT W-WASHER | Antenna ([03.2012 - ] (1203- )RHD) |
| 90119-T0130 | New Genuine Part | Antenna ([03.2012 - ] (1203- )RHD) |
