Search › Model › AVU65

AVU65

Toyota HARRIER · 2014 · 3,152 parts · 188 categories

3,152 items

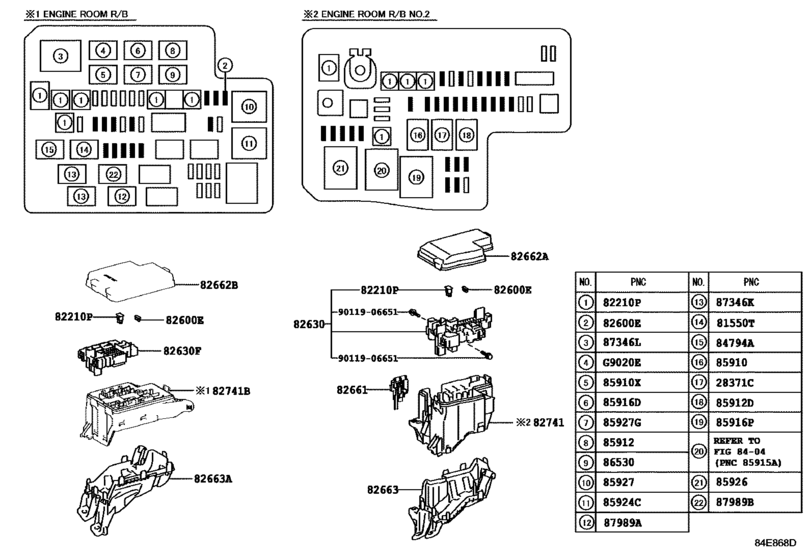

Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65) 25

#	OEM	Part name
28371	90987-02027	Relay
82210	90982-08274	Fusible Link
82210	90982-08295	Fusible Link
82210	90982-08302	Fusible Link
82210	90982-08303	Fusible Link
82210	90982-08305	Fusible Link
82600	90982-09019	Instrument Panel Fuse
82600	90982-09020	Fusible Link
82600	90982-09021	Fusible Link
82600	90982-09022	Instrument Panel Fuse
82600	90982-09023	Instrument Panel Fuse
82600	90982-09025	Instrument Panel Fuse
82630	82630-48010	Holder Assy, Fuse
82630	82631-48020	Holder Assy, Fuse
82661	82661-42040	Cover, Relay Block, No.1
82662	82662-48380	Cover, Relay Block, Upper, No.1
82662	82662-48370	Cover, Relay Block, Upper, No.2
82663	82663-42100	Cover, Relay Block, Lower
82663	82663-42110	Cover, Relay Block, Lower, No.2
82741	82741-48080	Block, Engine Room Relay
82741	82741-48090	Block, Engine Room Relay
85916	90987-02025	Relay
85927	90987-02028	Relay, Water Pump
87989	90987-04004	Relay, Starter Cut
9011906651	90119-06651	BOLT WWASHER

OEM	Part name	Category
82630-48010	Holder Assy, Fuse	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
82631-48020	Holder Assy, Fuse	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
82661-42040	Cover, Relay Block, No.1	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
82662-48370	Cover, Relay Block, Upper, No.2	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
82662-48380	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
82663-42100	Cover, Relay Block, Lower	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
82663-42110	Cover, Relay Block, Lower, No.2	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
82741-48080	Block, Engine Room Relay	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
82741-48090	Block, Engine Room Relay	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90119-06651	BOLT WWASHER	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90982-08274	Fusible Link	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90982-08295	Fusible Link	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90982-08302	Fusible Link	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90982-08303	Fusible Link	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90982-08305	Fusible Link	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90982-09019	Instrument Panel Fuse	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90982-09020	Fusible Link	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90982-09021	Fusible Link	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90982-09022	Instrument Panel Fuse	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90982-09023	Instrument Panel Fuse	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90982-09025	Instrument Panel Fuse	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90987-02025	Relay	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90987-02027	Relay	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90987-02028	Relay, Water Pump	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)
90987-04004	Relay, Starter Cut	Switch & Relay & Computer ([12.2013 - ] ENGINE ROOM (1312- )AVU65)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 188
Collected: 2026-08-03
