Search › Model › AVU65

AVU65

Toyota HARRIER · 2014 · 3,152 parts · 188 categories

← Back to categories

3,152 items

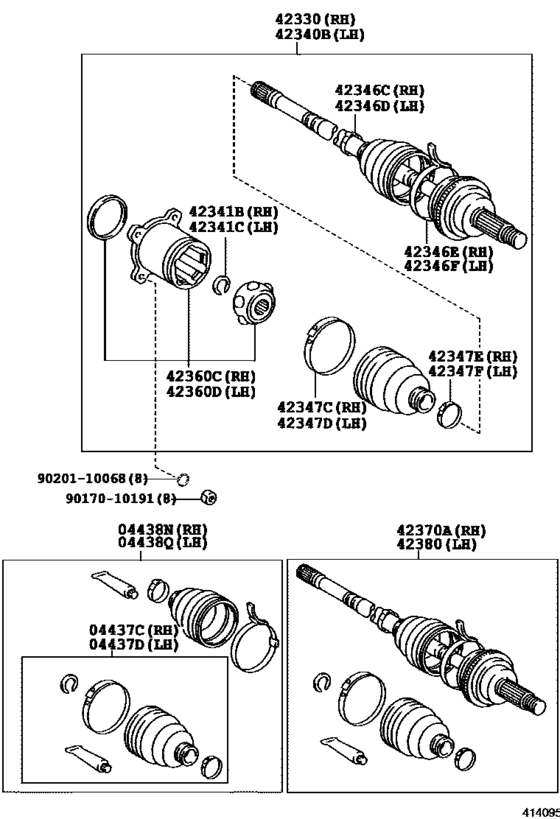

Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65) 13

#	OEM	Part name
4437	04439-12011	Boot Kit, Rear Drive Shaft Inboard Joint, Rh
4437	04439-12014	Boot Kit, Rear Drive Shaft Inboard Joint, Rh
4438	04429-48060	Boot Kit, Rear Drive Shaft, In & Outboard Joint, Rh
42330	42340-48110	Shaft Assy, Rear Drive, Rh
42341	43425-48040	Ring, Snap (For Rear Drive Shaft)
42346	42345-52270	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)
42346	42345-12280	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)
42347	42345-12120	Clamp, No. 2 (For Rear Drive Shaft Outboard Joint Boot)
42347	42345-12130	Clamp (For Rear Drive Shaft Outboard Joint Boot)
42360	42360-28010	Joint Assy, Rear Drive Shaft Inboard
42370	42370-49305	Shaft Assy, Rear Drive Outboard Joint, Rh
9017010191	90170-10191	Nut(For Rear Drive Shaft)
9020110068	90201-10068	New Genuine Part

OEM	Part name	Category
04429-48060	Boot Kit, Rear Drive Shaft, In & Outboard Joint, Rh	Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65)
04439-12011	Boot Kit, Rear Drive Shaft Inboard Joint, Rh	Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65)
04439-12014	Boot Kit, Rear Drive Shaft Inboard Joint, Rh	Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65)
42340-48110	Shaft Assy, Rear Drive, Rh	Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65)
42345-12120	Clamp, No. 2 (For Rear Drive Shaft Outboard Joint Boot)	Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65)
42345-12130	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65)
42345-12280	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)	Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65)
42345-52270	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)	Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65)
42360-28010	Joint Assy, Rear Drive Shaft Inboard	Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65)
42370-49305	Shaft Assy, Rear Drive Outboard Joint, Rh	Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65)
43425-48040	Ring, Snap (For Rear Drive Shaft)	Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65)
90170-10191	Nut(For Rear Drive Shaft)	Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65)
90201-10068	New Genuine Part	Rear Axle Shaft & Hub ([12.2013 - ] (1312- )AVU65)
