Search › Model › AVU65

AVU65

Toyota HARRIER · 2014 · 3,152 parts · 188 categories

3,152 items

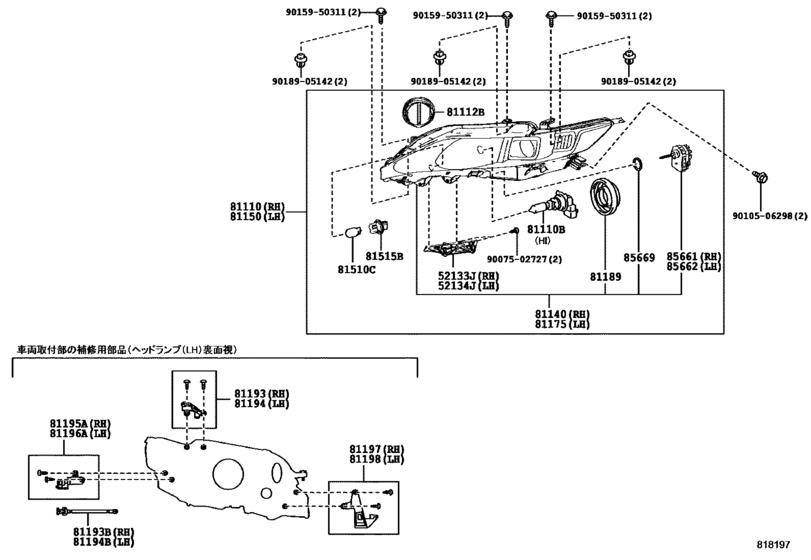

Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705)) 26

#	OEM	Part name
52133	52133-48050	Reinforcement, Front Bumper Bar, Rh
52134	52134-48050	Reinforcement, Front Bumper Bar, Lh
81110	81110-48440	Headlamp Assy, Rh
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81112	81112-47380	Ring, Cover
81140	81140-48440	Unit Assy, Headlamp Led, Rh
81150	81150-48890	Headlamp Assy, Lh
81175	81070-48890	Unit Assy, Headlamp, Lh
81189	90075-65006	Cover, Headlamp Back, No.1
81193	81193-48060	Retainer, Headlamp Protector, Upper Rh
81193	81194-48070	Retainer, Headlamp Protector, Upper Rh No.2
81194	81193-48090	Retainer, Headlamp Protector, Upper Lh
81194	81194-48090	Retainer, Headlamp Protector, Upper Lh No.2
81195	81195-48020	Retainer, Headlamp Protector, Lower Rh
81196	81196-48060	Retainer, Headlamp Protector, Lower Lh
81197	81197-48030	Bracket, Headlamp, Lower Rh
81198	81198-48030	Bracket, Headlamp, Lwr Lh
81510	90981-15021	Bulb (For Front Turn Signal Lamp)
81515	90075-60028	Socket, Headlamp, Bulb
85661	85661-12020	Motor, Headlamp Leveling, Rh
85669	90075-99120	Packing, Headlamp Leveling Motor Base
9007502727	90075-02727	Screw, Headlamp
9010506298	90105-06298	BOLT FLANGE
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
52133-48050	Reinforcement, Front Bumper Bar, Rh	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
52134-48050	Reinforcement, Front Bumper Bar, Lh	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
81070-48890	Unit Assy, Headlamp, Lh	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
81110-48440	Headlamp Assy, Rh	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
81112-47380	Ring, Cover	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
81140-48440	Unit Assy, Headlamp Led, Rh	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
81150-48890	Headlamp Assy, Lh	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
81193-48060	Retainer, Headlamp Protector, Upper Rh	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
81193-48090	Retainer, Headlamp Protector, Upper Lh	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
81194-48070	Retainer, Headlamp Protector, Upper Rh No.2	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
81194-48090	Retainer, Headlamp Protector, Upper Lh No.2	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
81195-48020	Retainer, Headlamp Protector, Lower Rh	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
81196-48060	Retainer, Headlamp Protector, Lower Lh	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
81197-48030	Bracket, Headlamp, Lower Rh	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
81198-48030	Bracket, Headlamp, Lwr Lh	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
85661-12020	Motor, Headlamp Leveling, Rh	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
90075-02727	Screw, Headlamp	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
90075-60028	Socket, Headlamp, Bulb	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
90075-65006	Cover, Headlamp Back, No.1	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
90075-99120	Packing, Headlamp Leveling Motor Base	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
90105-06298	BOLT FLANGE	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
90159-50311	SCREW	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
90159-A0034	SCREW WWASHER	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
90189-05142	GROMMET, SCREW	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
90981-15021	Bulb (For Front Turn Signal Lamp)	Headlamp ([12.2013 - 05.2017] LED HEADLAMP (1312-1705))
