Search › Model › AVU65

AVU65

Toyota HARRIER · 2014 · 3,152 parts · 188 categories

3,152 items

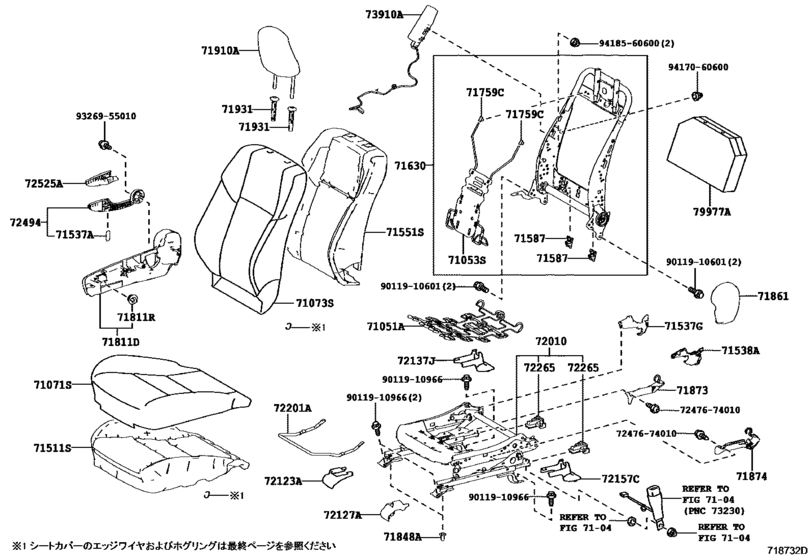

Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND) 42

#	OEM	Part name
71051	71051-47060	Spring Sub-Assy, Front Seat Cushion, Rh
71053	71053-52050	Spring Sub-Assy, Front Seat Back, Rh
71071	71071-48880-C1	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-48880-C2	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-48C20-C1	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-48C20-C3	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-48C20-C2	Cover, Front Seat Back, Rh(For Separate Type)
71511	71511-S0230	Pad, Front Seat Cushion, Rh(For Separate Type)
71537	71537-47040	Protector, Front Seat Cushion
71537	71537-42010-C0	Protector, Front Seat Cushion Edge, Rh(For Rh Seat)
71538	71538-42010-C0	Protector, Front Seat Cushion Edge, Lh(For Rh Seat)
71551	71551-S0370	Pad, Front Seat Back, Rh(For Separate Type)
71587	71587-52030	Protector, Front Seat Back Edge
71630	71630-42130	Spring Assy, Front Seat Back, Rh
71759	71759-47011	Hook, Front Seat Back
71811	71811-42110-C0	Shield, Front Seat Cushion, Rh
71811	71811-48210-C0	Shield, Front Seat Cushion, Rh
71811	71769-47020	Clip, Rear Seat Back Board
71848	71848-48050	Cap, Seat Adjuster Cover, Rh
71861	71861-42060-C0	Shield, Front Seat Cushion, Inner Rh
71873	71873-47040	Shield, Front Seat Cushion, Lower Rh
71874	71874-47040	Shield, Front Seat Cushion, Lower Lh
71910	71910-48680-C2	Headrest Assy, Front Seat
71931	71930-47020-C0	Support, Front Seat Headrest
71931	71931-47020-C0	Support, Front Seat Headrest
72010	72010-42191	Adjuster Assy, Front Seat, Rh
72123	72123-42030-C0	Cover, Seat Track Bracket, Outer Front Rh
72127	72127-42030-C0	Cover, Seat Track Bracket, Inner Front Rh
72137	72137-42050-C0	Cover, Front Seat Track, Rh Rear Outer
72157	72158-42020-C0	Cover, Front Seat Track, Rh Rear Inner
72201	72211-47020	Handle Sub-Assy, Seat Track Rh - SEAT TRACK ADJUSTING
72265	72265-42010	Cover, Seat Track Upper Rail, Rh
72494	72494-42020-C0	Handle, Vertical Adjusting, Rh
72525	72525-47010-C0	Handle, Reclining Adjuster Release, Rh
73910	73910-42040	Air Bag Assy, Front Seat, Rh
79977	79977-52120	Felt, Seat Back
7247674010	72476-74010	Screw, Horizontal Jack, Inner
9011910601	90119-10601	BOLT W-WASHER
9011910966	90119-10966	BOLT WWASHER
9326955010	93269-55010	New Genuine Part
9417060600	94170-60600	NUT CAP
9418560600	94185-60600	Nut, Wire Adjusting, No.1

OEM	Part name	Category
71051-47060	Spring Sub-Assy, Front Seat Cushion, Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71053-52050	Spring Sub-Assy, Front Seat Back, Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71071-48880-C1	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71071-48880-C2	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71073-48C20-C1	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71073-48C20-C2	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71073-48C20-C3	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71511-S0230	Pad, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71537-42010-C0	Protector, Front Seat Cushion Edge, Rh(For Rh Seat)	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71537-47040	Protector, Front Seat Cushion	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71538-42010-C0	Protector, Front Seat Cushion Edge, Lh(For Rh Seat)	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71551-S0370	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71587-52030	Protector, Front Seat Back Edge	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71630-42130	Spring Assy, Front Seat Back, Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71759-47011	Hook, Front Seat Back	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71769-47020	Clip, Rear Seat Back Board	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71811-42110-C0	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71811-48210-C0	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71848-48050	Cap, Seat Adjuster Cover, Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71861-42060-C0	Shield, Front Seat Cushion, Inner Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71873-47040	Shield, Front Seat Cushion, Lower Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71874-47040	Shield, Front Seat Cushion, Lower Lh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71910-48680-C2	Headrest Assy, Front Seat	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71930-47020-C0	Support, Front Seat Headrest	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
71931-47020-C0	Support, Front Seat Headrest	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
72010-42191	Adjuster Assy, Front Seat, Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
72123-42030-C0	Cover, Seat Track Bracket, Outer Front Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
72127-42030-C0	Cover, Seat Track Bracket, Inner Front Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
72137-42050-C0	Cover, Front Seat Track, Rh Rear Outer	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
72158-42020-C0	Cover, Front Seat Track, Rh Rear Inner	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
72211-47020	Handle Sub-Assy, Seat Track Rh - SEAT TRACK ADJUSTING	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
72265-42010	Cover, Seat Track Upper Rail, Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
72476-74010	Screw, Horizontal Jack, Inner	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
72494-42020-C0	Handle, Vertical Adjusting, Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
72525-47010-C0	Handle, Reclining Adjuster Release, Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
73910-42040	Air Bag Assy, Front Seat, Rh	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
79977-52120	Felt, Seat Back	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
90119-10601	BOLT W-WASHER	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
90119-10966	BOLT WWASHER	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
93269-55010	New Genuine Part	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
94170-60600	NUT CAP	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
94185-60600	Nut, Wire Adjusting, No.1	Front Seat & Seat Track ([12.2013 - ] ｳﾝﾃﾝｾｷ (1312- )GRAND)
