Search › Model › AVU65

AVU65

Toyota HARRIER · 2014 · 3,152 parts · 188 categories

3,152 items

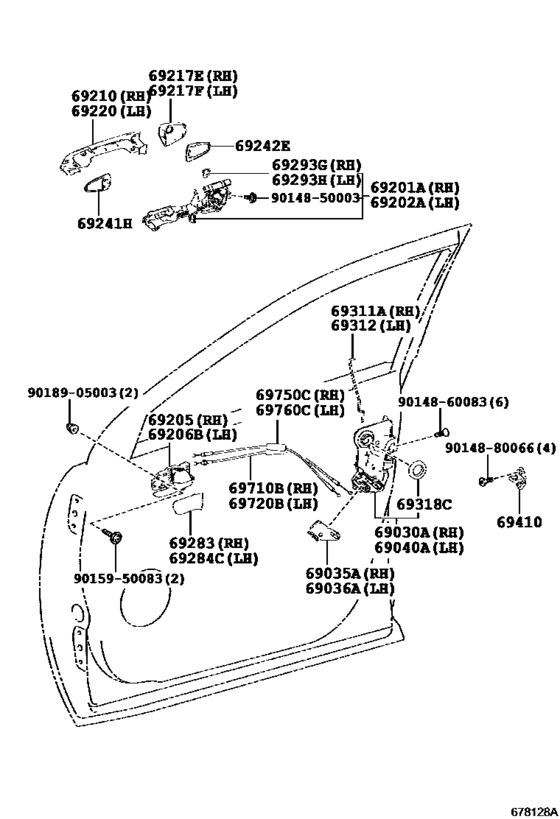

Front Door Lock & Handle ([12.2013 - ] (1312- )) 40

#	OEM	Part name
69030	69030-30A70	Lock Assy, Front Door W/motor, Rh
69035	69035-30010	Cover Sub-Assy, Front Door Lock, Rh
69036	69036-30010	Cover Sub-Assy, Front Door Lock, Lh
69040	69040-30A80	Lock Assy, Front Door W/motor, Lh
69201	69201-42070	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-42040	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-30210-C0	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-30210-C1	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-30210-C0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-30210-C1	Handle Sub-Assy, Front Door Inside, Lh
69210	69210-30350-A1	Handle Assy, Front Door, Outside Rh
69210	69210-30350-B0	Handle Assy, Front Door, Outside Rh
69210	69210-30350-B2	Handle Assy, Front Door, Outside Rh
69210	69210-30350-C0	Handle Assy, Front Door, Outside Rh
69210	69210-30350-C2	Handle Assy, Front Door, Outside Rh
69210	69210-30350-C3	Handle Assy, Front Door, Outside Rh
69210	69210-30350-D1	Handle Assy, Front Door, Outside Rh
69210	69210-30350-E0	Handle Assy, Front Door, Outside Rh
69217	69217-30120	Cover, Front Door Outside Handle, Rh
69217	69250-30090	Cover, Front Door Outside Handle, Lh
69241	69241-30120	Pad, Rear Door Outside Handle, Front
69242	69242-30100	Pad, Front Door Outside Handle, Rear
69283	69283-30060-C1	Plug, Front Door Inside Handle Bezel, Rh
69283	69283-30060-C2	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-30060-C1	Plug, Front Door Inside Handle Bezel, Lh
69284	69284-30060-C2	Plug, Front Door Inside Handle Bezel, Lh
69293	69293-12030	Snap, Front Door Outside Handle
69293	69293-12040	Snap, Front Door Outside Handle
69311	69311-48070	Rod, Front Door Lock Open, Rh
69312	69312-48070	Rod, Front Door Lock Open, Lh
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69410	69410-20110	Plate Assy, Front Door Lock Striker
69710	69710-48070	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-48080	Cable Assy, Front Door Inside Locking, Rh
69750	69750-48081	Cable Assy, Front Door Inside Locking, Rh
9014850003	90148-50003	Screw Hex Lobular
9014860083	90148-60083	SCREW HEXALOBULAR
9014880066	90148-80066	SCREW HEXALOBULAR
9015950083	90159-50083	SCREW
9018905003	90189-05003	CLIP

OEM	Part name	Category
69030-30A70	Lock Assy, Front Door W/motor, Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69035-30010	Cover Sub-Assy, Front Door Lock, Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69036-30010	Cover Sub-Assy, Front Door Lock, Lh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69040-30A80	Lock Assy, Front Door W/motor, Lh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69201-42070	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69202-42040	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69205-30210-C0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69205-30210-C1	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69206-30210-C0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69206-30210-C1	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69210-30350-A1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69210-30350-B0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69210-30350-B2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69210-30350-C0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69210-30350-C2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69210-30350-C3	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69210-30350-D1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69210-30350-E0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69217-30120	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69241-30120	Pad, Rear Door Outside Handle, Front	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69242-30100	Pad, Front Door Outside Handle, Rear	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69250-30090	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69283-30060-C1	Plug, Front Door Inside Handle Bezel, Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69283-30060-C2	Plug, Front Door Inside Handle Bezel, Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69284-30060-C1	Plug, Front Door Inside Handle Bezel, Lh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69284-30060-C2	Plug, Front Door Inside Handle Bezel, Lh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69293-12030	Snap, Front Door Outside Handle	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69293-12040	Snap, Front Door Outside Handle	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69311-48070	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69312-48070	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69410-20110	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69710-48070	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69750-48080	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
69750-48081	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([12.2013 - ] (1312- ))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([12.2013 - ] (1312- ))
90148-60083	SCREW HEXALOBULAR	Front Door Lock & Handle ([12.2013 - ] (1312- ))
90148-80066	SCREW HEXALOBULAR	Front Door Lock & Handle ([12.2013 - ] (1312- ))
90159-50083	SCREW	Front Door Lock & Handle ([12.2013 - ] (1312- ))
90189-05003	CLIP	Front Door Lock & Handle ([12.2013 - ] (1312- ))
