Search › Model › AVU65

AVU65

Toyota HARRIER · 2014 · 3,152 parts · 188 categories

3,152 items

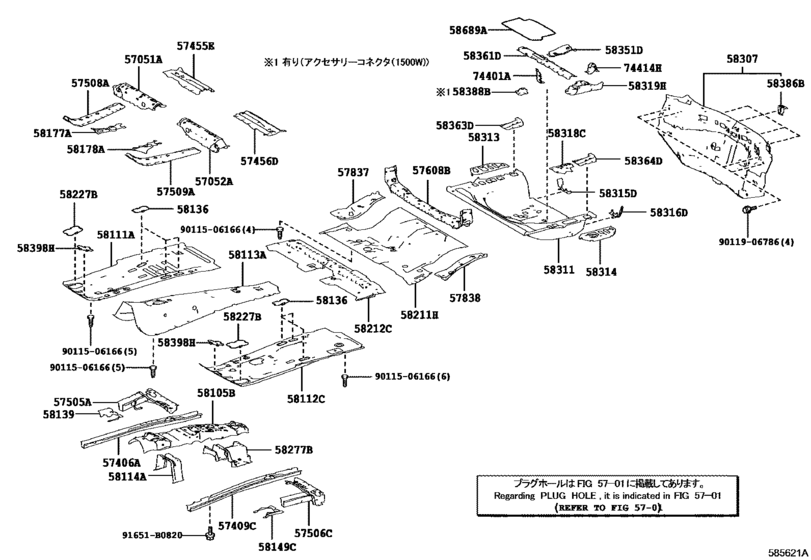

Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65) 52

#	OEM	Part name
57051	57051-42011	Member Sub-Assy, Front Floor Cross, Rh
57052	57052-42011	Member Sub-Assy, Front Floor Cross, Lh
57406	57406-42011	Member Sub-Assy, Main Floor Side, Rh
57409	57409-42010	Member Sub-Assy, Main Floor Side, Lh
57455	57455-42030	Plate, Front Floor Cross Member, No.3 Rh
57456	57456-42010	Plate, Front Floor Cross Member, No.3 Lh
57505	57505-42110	Reinforcement Sub-Assy, Front Floor Under
57506	57506-42050	Reinforcement Sub-Assy, Front Floor Under
57508	57508-42010	Reinforcement Sub-Assy, Front Floor, Rh
57509	57509-42010	Reinforcement Sub-Assy, Front Floor, Lh
57608	57608-48030	Member Sub-Assy, Rear Floor Cross, No.4
57608	57608-78010	Member Sub-Assy, Rear Floor Cross, No.4
57837	57837-48050	Reinforcement, Rear No.1 Seat Leg, Rear No.3
57838	57838-48050	Reinforcement, Rear No.1 Seat Leg, Rear No.4
58105	58105-48070	Panel Sub-Assy, Front Floor Rear Upper Sub
58111	58111-42201	Pan, Front Floor, Rh
58112	58112-42011	Pan, Front Floor, Lh
58113	58113-42012	Panel, Front Floor, Center
58114	58114-42041	Reinforcement, Front Floor Panel
58136	58136-42020	Cover, Front Floor Hole
58139	58139-42010	Cover, Front Floor Side, Rear
58149	58149-42011	Plate, Front Floor Side, Rear Lh
58177	58177-42010	Extension, Front Floor Panel, Rh
58178	58178-42010	Extention, Front Floor Panel, Lh
58211	58211-48080	Pan, Center Floor
58212	58202-42020	Pan, Center Floor, Front
58212	58202-78020	Pan Sub-Assy, Center Floor, Front
58227	58227-42010	Plate, Front Floor Panel Side, Rh
58277	58209-48010	Reinforce Sub-Assy, Drive Shaft Center Support, Rear
58307	58307-48100	Panel Sub-Assy, Body Lower Back
58311	58311-42130	Pan, Rear Floor
58311	58311-42132	Pan, Rear Floor
58313	58313-42040	Panel, Rear Floor Side, Rh
58314	58314-42040	Panel, Rear Floor Side, Lh
58315	58315-42070	Extension, Rear Floor Pan, Rh
58316	58316-42080	Extension, Rear Floor Pan, Lh
58318	58318-42021	Bracket, Rear Floor Crossmember
58319	58319-48020	Plate, Sub Floor
58351	58351-48020	Reinforcement, Rear Floor Panel
58361	58361-42020	Reinforcement, Rear Floor Panel, No.1 Rh
58363	58363-42010	Reinforcement, Rear Floor Panel, No.2 Rh
58364	58364-42030	Reinforcement, Rear Floor Panel, No.2 Lh
58386	58386-74010	Bracket, Rear Bumper Cover, No.2
58388	58388-48010	Bracket, Plate Rear Floor
58398	58398-42010	Cover, Floor Under, No.1
58689	58689-48010	Weight, Rear Floor
74401	74401-48010	Bracket Sub-Assy, Battery, Front
74414	74414-48010	Panel, Battery Carrier, Rear
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011906786	90119-06786	BOLT WWASHER

OEM	Part name	Category
57051-42011	Member Sub-Assy, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
57052-42011	Member Sub-Assy, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
57406-42011	Member Sub-Assy, Main Floor Side, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
57409-42010	Member Sub-Assy, Main Floor Side, Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
57455-42030	Plate, Front Floor Cross Member, No.3 Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
57456-42010	Plate, Front Floor Cross Member, No.3 Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
57505-42110	Reinforcement Sub-Assy, Front Floor Under	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
57506-42050	Reinforcement Sub-Assy, Front Floor Under	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
57508-42010	Reinforcement Sub-Assy, Front Floor, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
57509-42010	Reinforcement Sub-Assy, Front Floor, Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
57608-48030	Member Sub-Assy, Rear Floor Cross, No.4	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
57608-78010	Member Sub-Assy, Rear Floor Cross, No.4	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
57837-48050	Reinforcement, Rear No.1 Seat Leg, Rear No.3	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
57838-48050	Reinforcement, Rear No.1 Seat Leg, Rear No.4	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58105-48070	Panel Sub-Assy, Front Floor Rear Upper Sub	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58111-42201	Pan, Front Floor, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58112-42011	Pan, Front Floor, Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58113-42012	Panel, Front Floor, Center	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58114-42041	Reinforcement, Front Floor Panel	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58136-42020	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58139-42010	Cover, Front Floor Side, Rear	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58149-42011	Plate, Front Floor Side, Rear Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58177-42010	Extension, Front Floor Panel, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58178-42010	Extention, Front Floor Panel, Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58202-42020	Pan, Center Floor, Front	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58202-78020	Pan Sub-Assy, Center Floor, Front	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58209-48010	Reinforce Sub-Assy, Drive Shaft Center Support, Rear	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58211-48080	Pan, Center Floor	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58227-42010	Plate, Front Floor Panel Side, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58307-48100	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58311-42130	Pan, Rear Floor	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58311-42132	Pan, Rear Floor	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58313-42040	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58314-42040	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58315-42070	Extension, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58316-42080	Extension, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58318-42021	Bracket, Rear Floor Crossmember	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58319-48020	Plate, Sub Floor	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58351-48020	Reinforcement, Rear Floor Panel	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58361-42020	Reinforcement, Rear Floor Panel, No.1 Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58363-42010	Reinforcement, Rear Floor Panel, No.2 Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58364-42030	Reinforcement, Rear Floor Panel, No.2 Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58386-74010	Bracket, Rear Bumper Cover, No.2	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58388-48010	Bracket, Plate Rear Floor	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58398-42010	Cover, Floor Under, No.1	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
58689-48010	Weight, Rear Floor	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
74401-48010	Bracket Sub-Assy, Battery, Front	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
74414-48010	Panel, Battery Carrier, Rear	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
90080-11347	New Genuine Part	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
90119-06786	BOLT WWASHER	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)
91651-B0820	Bolt, Radiator Side Support Plate	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 188
Collected: 2026-08-03
