AVU65

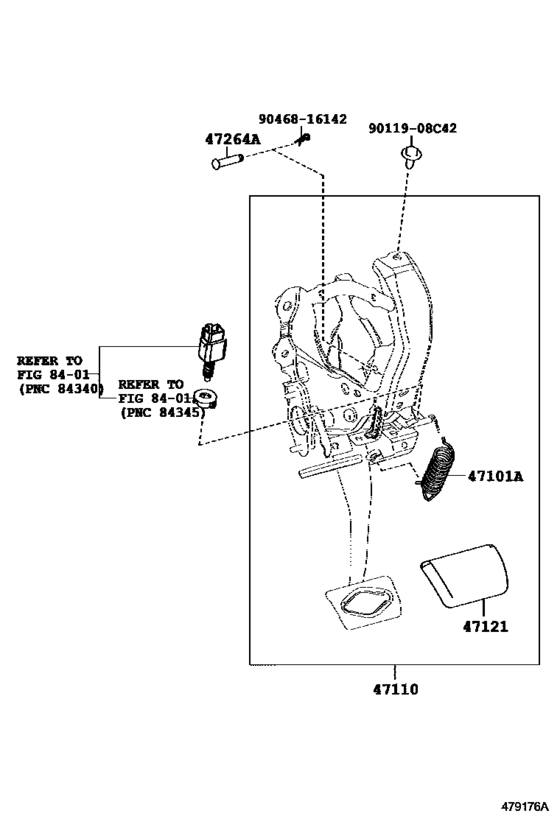

Brake Pedal & Bracket ([12.2013 - ] (1312- )AVU65) 9
| # | OEM | Part name |
|---|---|---|
| 47101 | 47146-42030 | Spring(For Brake Pedal Return) |
| 47101 | 47146-78010 | Spring(For Brake Pedal Return) |
| 47101 | 47146-78020 | Spring(For Brake Pedal Return) |
| 47110 | 47110-48260 | Support Assy, Brake Pedal |
| 47121 | 47121-42010 | Pad, Brake Pedal |
| 47121 | 47121-42020 | Pad, Brake Pedal |
| 47264 | 90249-08256 | Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) |
| 9011908 | 90119-08C42 | New Genuine Part |
| 9046816142 | 90468-16142 | Clip(For Push Rod Clevis Pin) |
| OEM | Part name | Category |
|---|---|---|
| 47110-48260 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([12.2013 - ] (1312- )AVU65) |
| 47121-42010 | Pad, Brake Pedal | Brake Pedal & Bracket ([12.2013 - ] (1312- )AVU65) |
| 47121-42020 | Pad, Brake Pedal | Brake Pedal & Bracket ([12.2013 - ] (1312- )AVU65) |
| 47146-42030 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([12.2013 - ] (1312- )AVU65) |
| 47146-78010 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([12.2013 - ] (1312- )AVU65) |
| 47146-78020 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([12.2013 - ] (1312- )AVU65) |
| 90119-08C42 | New Genuine Part | Brake Pedal & Bracket ([12.2013 - ] (1312- )AVU65) |
| 90249-08256 | Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) | Brake Pedal & Bracket ([12.2013 - ] (1312- )AVU65) |
| 90468-16142 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([12.2013 - ] (1312- )AVU65) |
