Search › Model › AVE35

AVE35

Lexus IS · 2015 · 4,678 parts · 205 categories

4,678 items

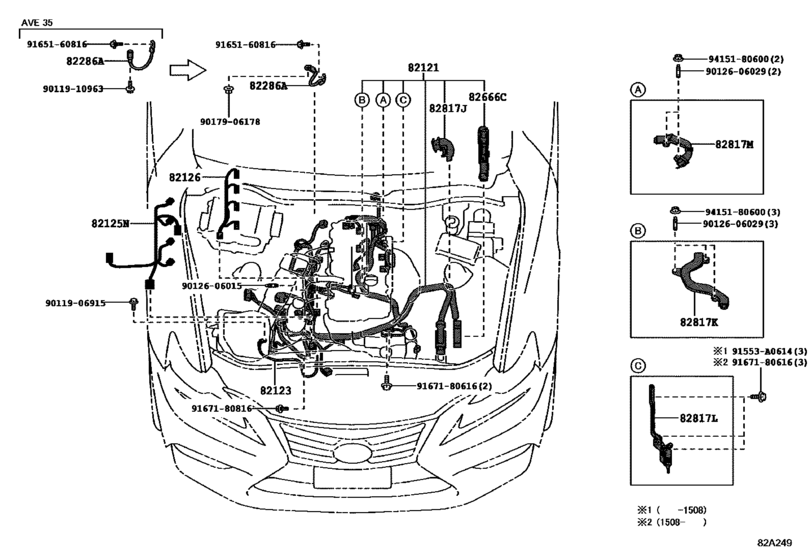

Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#) 23

#	OEM	Part name
82121	82121-53580	Wire, Engine
82123	82123-30580	Wire, Engine, No.3
82125	82125-30560	Wire, Engine, No.5
82126	82126-30060	Wire, Engine
82286	82286-30120	Wire, Earth, No.2
82666	82666-30C90	Holder, Connector No.2
82817	82817-30R10	Protector, Wiring Harness, No.8
82817	82817-30W90	Protector, Wiring Harness, No.6
82817	82817-30X00	Protector, Wiring Harness, No.10
82817	82817-3AA80	Protector, Wiring Harness, No.11
82817	82817-30X10	Protector, Wiring Harness, No.5
91553	91553-A0614	BOLT FLANGE
9011906915	90119-06915	BOLT W-WASHER
9011910963	90119-10963	New Genuine Part
9012606015	90126-06015	Bolt, Stud(For Oil Pan)
9012606029	90126-06029	Bolt, Stud(For Vacuum Transmitting Pipe)
9012606029	90126-A0014	Bolt, Stud(For Oil Strainer)
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9167180616	91671-80616	BOLT FLANGE
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
82121-53580	Wire, Engine	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
82123-30580	Wire, Engine, No.3	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
82125-30560	Wire, Engine, No.5	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
82126-30060	Wire, Engine	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
82286-30120	Wire, Earth, No.2	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
82666-30C90	Holder, Connector No.2	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
82817-30R10	Protector, Wiring Harness, No.8	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
82817-30W90	Protector, Wiring Harness, No.6	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
82817-30X00	Protector, Wiring Harness, No.10	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
82817-30X10	Protector, Wiring Harness, No.5	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
82817-3AA80	Protector, Wiring Harness, No.11	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
90080-11396	Bolt	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
90119-10963	New Genuine Part	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
90126-06015	Bolt, Stud(For Oil Pan)	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
90126-06029	Bolt, Stud(For Vacuum Transmitting Pipe)	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
90126-A0014	Bolt, Stud(For Oil Strainer)	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
90179-06178	Nut (For Rear Wiper Arm Setting)	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
91553-A0614	BOLT FLANGE	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
91651-60816	BOLT	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
91671-80616	BOLT FLANGE	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Wiring & Clamp ([04.2013 - ] ｴﾝｼﾞﾝ (1304- )AVE3#)
