Search › Model › AVE35
AVE35

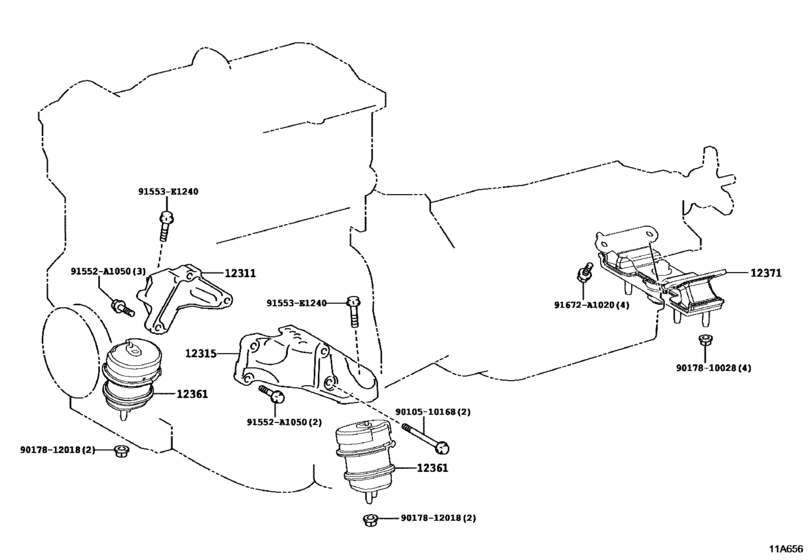

Mounting ([08.2015 - ] (1508- )2ARFSE..AVE35) 10
| # | OEM | Part name |
|---|---|---|
| 0 | 91553-E1240 | Bolt |
| 12311 | 12311-36140 | Bracket, Engine Mounting, Front No.1 Rh |
| 12315 | 12315-36050 | Bracket, Engine Mounting, Front No.1 Lh |
| 12361 | 12361-36181 | Insulator, Engine Mounting, Front |
| 12371 | 12371-36140 | Insulator, Engine Mounting, Rear No.1 |
| 91552 | 91552-A1050 | New Genuine Part |
| 91672 | 91672-A1020 | New Genuine Part |
| 9010510168 | 90105-10168 | New Genuine Part |
| 9017810028 | 90178-10028 | New Genuine Part |
| 9017812018 | 90178-12018 | NUT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 12311-36140 | Bracket, Engine Mounting, Front No.1 Rh | Mounting ([08.2015 - ] (1508- )2ARFSE..AVE35) |
| 12315-36050 | Bracket, Engine Mounting, Front No.1 Lh | Mounting ([08.2015 - ] (1508- )2ARFSE..AVE35) |
| 12361-36181 | Insulator, Engine Mounting, Front | Mounting ([08.2015 - ] (1508- )2ARFSE..AVE35) |
| 12371-36140 | Insulator, Engine Mounting, Rear No.1 | Mounting ([08.2015 - ] (1508- )2ARFSE..AVE35) |
| 90105-10168 | New Genuine Part | Mounting ([08.2015 - ] (1508- )2ARFSE..AVE35) |
| 90178-10028 | New Genuine Part | Mounting ([08.2015 - ] (1508- )2ARFSE..AVE35) |
| 90178-12018 | NUT FLANGE | Mounting ([08.2015 - ] (1508- )2ARFSE..AVE35) |
| 91552-A1050 | New Genuine Part | Mounting ([08.2015 - ] (1508- )2ARFSE..AVE35) |
| 91553-E1240 | Bolt | Mounting ([08.2015 - ] (1508- )2ARFSE..AVE35) |
| 91672-A1020 | New Genuine Part | Mounting ([08.2015 - ] (1508- )2ARFSE..AVE35) |
