Search › Model › AVE35
AVE35

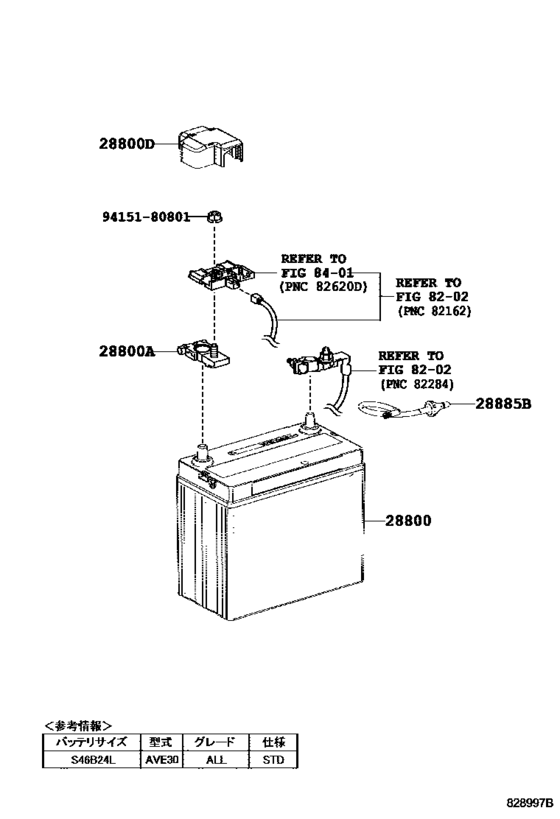

Battery & Battery Cable ([04.2013 - ] 12Vﾊﾞｯﾃﾘ (1304- )AVE3#) 5
| # | OEM | Part name |
|---|---|---|
| 28800 | 28800-36100 | Battery |
| 28800 | 90982-05060 | Terminal, Battery Positive |
| 28800 | 82821-53090 | Cover, Connector(For Battery Terminal) |
| 28885 | 28885-36040 | Hose, Battery |
| 9415180801 | 94151-80801 | NUT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 28800-36100 | Battery | Battery & Battery Cable ([04.2013 - ] 12Vﾊﾞｯﾃﾘ (1304- )AVE3#) |
| 28885-36040 | Hose, Battery | Battery & Battery Cable ([04.2013 - ] 12Vﾊﾞｯﾃﾘ (1304- )AVE3#) |
| 82821-53090 | Cover, Connector(For Battery Terminal) | Battery & Battery Cable ([04.2013 - ] 12Vﾊﾞｯﾃﾘ (1304- )AVE3#) |
| 90982-05060 | Terminal, Battery Positive | Battery & Battery Cable ([04.2013 - ] 12Vﾊﾞｯﾃﾘ (1304- )AVE3#) |
| 94151-80801 | NUT FLANGE | Battery & Battery Cable ([04.2013 - ] 12Vﾊﾞｯﾃﾘ (1304- )AVE3#) |
