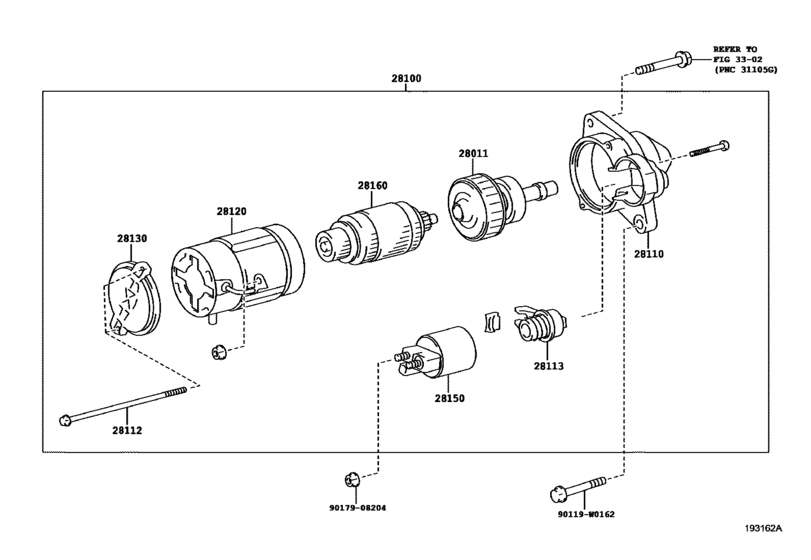

| 28011-0R020 |
Clutch Sub-Assy, Starter |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28011-0R021 |
Clutch Sub-Assy, Starter |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28100-0R010 |
Starter Assy |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28100-0R020 |
Starter Assy |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28100-0R021 |
Starter Assy |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28100-0R030 |
Starter Assy |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28110-0R010 |
Housing Assy, Starter Drive |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28110-0R020 |
Housing Assy, Starter Drive |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28110-0R021 |
Housing Assy, Starter Drive |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28112-0R020 |
Bolt, Housing Set |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28113-0R020 |
Lever, Starter Pinion Drive |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28120-0R020 |
Yoke Assy, Starter |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28120-0R021 |
Yoke Assy, Starter |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28120-38020 |
Yoke Assy, Starter |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28130-0R010 |
Frame Assy, Starter Commutator End |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28130-0R020 |
Frame Assy, Starter Commutator End |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28150-0R020 |
Switch Assy, Magnet Starter |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28150-37020 |
Switch Assy, Magnet Starter |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28160-0G020 |
Armature Assy, Starter |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 28160-0R020 |
Armature Assy, Starter |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 90080-18070 |
NUT, WWASHER |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 90119-W0162 |
Bolt(For Transaxle & Engine Setting) |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
| 90179-08204 |
Nut |
Starter ([04.2009 - 10.2010] 12V 2.0KW VALEO (0902-0904)1ADFTV,2ADFHV ; (0904-1010)1ADFTV,2AD FHV..E ; (1010-1503)1ADFTV,2ADFHV) |
