Search › Model › AUR10

AUR10

Toyota COROLLA-VERSO · 2005 · 3,257 parts · 180 categories

3,257 items

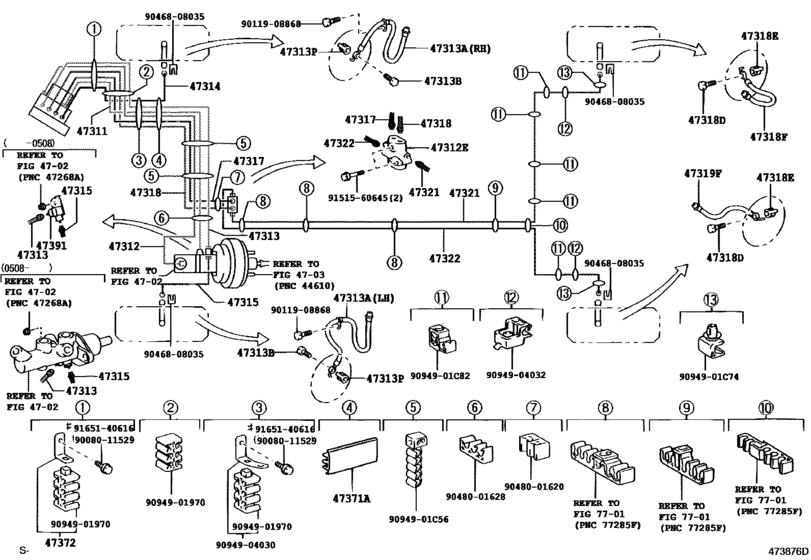

Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA) 37

#	OEM	Part name
47311	47311-0F030	Tube, Front Brake, No.1
47311	47311-0F060	Tube, Front Brake, No.1
47312	47312-0F030	Tube, Front Brake, No.2
47312	47312-0F061	Tube, Front Brake, No.2
47312	90904-12082	Way, No.2(For Front Brake Tube)
47313	47313-0F030	Tube, Front Brake, No.3
47313	47313-0F060	Tube, Front Brake, No.3
47313	90947-02D22	Hose, Flexible, No.1(For Front)
47313	90947-02D23	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-0F030	Tube, Front Brake, No.4
47314	47314-0F060	Tube, Front Brake, No.4
47315	47315-05150	Tube, Front Brake, No.5
47317	47317-0F030	Tube, Front Brake, No.7
47317	47317-0F060	Tube, Front Brake, No.7
47318	47318-0F030	Tube, Front Brake, No.8
47318	47318-0F060	Tube, Front Brake, No.8
47318	90947-02E84	Hose, Flexible(For Rear Rh)
47321	47321-0F010	Tube, Rear Brake, No.1
47322	47322-0F010	Tube, Rear Brake, No.2
47371	47371-12230	Clamp, Brake Tube, No.1
47372	47374-12050	Clamp, Brake Tube, No.1
9094901	90949-01C56	Clamp, Brake Tube, No.2
9094901	90949-01C74	Clamp, Brake Tube, No.8
9094901	90949-01C82	Clamp(For Clutch Master Cylinder Tube)
9008011529	90080-11529	New Genuine Part
9008011529	91651-40616	BOLT
9011908868	90119-08868	BOLT WWASHER
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9048001620	90480-01620	Grommet, No.1(For Front Brake Tube)
9048001628	90480-01628	Grommet(For Brake Tube)
9094901970	90949-01970	Clamp, Brake Tube, No.3
9094904030	90949-04030	Clamp, Brake Tube, No.10
9094904032	90949-04032	Clamp, Brake Tube, No.7
9151560645	91515-60645	New Genuine Part

OEM	Part name	Category
47311-0F030	Tube, Front Brake, No.1	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47311-0F060	Tube, Front Brake, No.1	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47312-0F030	Tube, Front Brake, No.2	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47312-0F061	Tube, Front Brake, No.2	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47313-0F030	Tube, Front Brake, No.3	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47313-0F060	Tube, Front Brake, No.3	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47314-0F030	Tube, Front Brake, No.4	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47314-0F060	Tube, Front Brake, No.4	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47315-05150	Tube, Front Brake, No.5	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47317-0F030	Tube, Front Brake, No.7	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47317-0F060	Tube, Front Brake, No.7	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47318-0F030	Tube, Front Brake, No.8	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47318-0F060	Tube, Front Brake, No.8	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47321-0F010	Tube, Rear Brake, No.1	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47322-0F010	Tube, Rear Brake, No.2	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47371-12230	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47374-12050	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90080-11529	New Genuine Part	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90468-08035	CLIP	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90480-01620	Grommet, No.1(For Front Brake Tube)	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90480-01628	Grommet(For Brake Tube)	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90904-12082	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90947-02D22	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90947-02D23	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90947-02E84	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90949-01970	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90949-01C56	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90949-01C74	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90949-01C82	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90949-04030	Clamp, Brake Tube, No.10	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
90949-04032	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
91515-60645	New Genuine Part	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
91651-40616	BOLT	Brake Tube & Clamp ([02.2004 - ] (0402- )LHD..TERRA)
