Search › Model › AT221

AT221

Toyota AVENSIS · 1997 · 4,587 parts · 209 categories

4,587 items

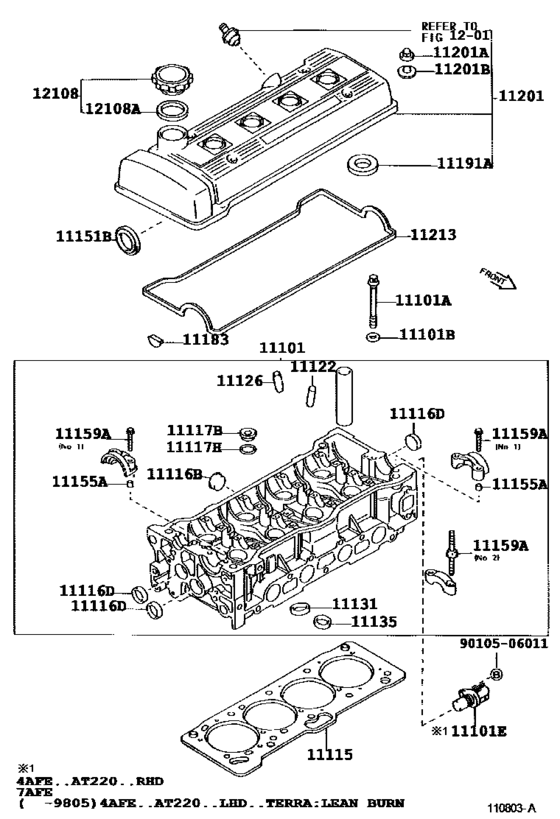

Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) 39

#	OEM	Part name
11101	11101-09100	Head Sub-Assy, Cylinder
11101	11101-19495	Head Sub-Assy, Cylinder
11101	90109-10058	Bolt(For Cylinder Head Set)
11101	90910-02120	Bolt(For Cylinder Head Set)
11101	90109-10059	Bolt(For Cylinder Head Set)
11101	90910-02121	Bolt(For Cylinder Head Set)
11101	90201-10344	Washer, Plate(For Cylinder Head Set)
11101	90919-05024	Sensor, Cam Position
11115	11115-16121	Gasket, Cylinder Head
11116	96411-42500	Plug, Tight, No.1
11116	96411-42800	Plug, Tight, No.1
11117	90341-20002	Plug, W/head Taper Screw, No.1
11117	90430-20004	Gasket(For Cylinder Head Screw Plug)
11122	11122-02030	Bush, Intake Valve Guide
11122	11122-15030	Bush, Intake Valve Guide
11122	11123-02030	Bush, Intake Valve Guide
11122	11123-15030	Bush, Intake Valve Guide
11131	11131-02040	Seat, Intake Valve
11131	11132-02040	Seat, Intake Valve
11135	11135-02030	Seat, Exhaust Valve
11135	11136-02030	Seat, Exhaust Valve
11151	90311-35022	Seal, Oil(For Camshaft Setting)
11151	90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)
11155	90253-09001	Pin, Ring W/head
11159	90109-06080	Bolt, Stud(For Head To Cylinder Head Cover)
11159	90109-06222	Bolt(For Head To Camshaft Bearing Cap)
11183	11183-15020	Plug, Semicircular
11191	11193-02010	Gasket(For Spark Plug Tube)
11191	11193-15010	Gasket(For Spark Plug Tube)
11191	11193-76020	Gasket, Spark Plug Tube
11201	11210-02040	Cover Sub-Assy, Cylinder Head
11201	11210-15071	Cover Sub-Assy, Cylinder Head
11201	90176-06028	Nut, Cap(For Cylinder Head Cover)
11201	90210-06010	Washer, Seal(For Cylinder Head Cover)
11213	11213-02070	Gasket, Cylinder Head Cover
12108	12180-02020	Cap Sub-Assy, Oil Filler
12108	90080-43020	Gasket(For Oil Filler Cap)
12108	90430-37140	Gasket(For Oil Filler Cap)
9010506011	90105-06011	BOLT

OEM	Part name	Category
11101-09100	Head Sub-Assy, Cylinder	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11101-19495	Head Sub-Assy, Cylinder	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11115-16121	Gasket, Cylinder Head	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11122-02030	Bush, Intake Valve Guide	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11122-15030	Bush, Intake Valve Guide	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11123-02030	Bush, Intake Valve Guide	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11123-15030	Bush, Intake Valve Guide	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11131-02040	Seat, Intake Valve	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11132-02040	Seat, Intake Valve	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11135-02030	Seat, Exhaust Valve	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11136-02030	Seat, Exhaust Valve	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11183-15020	Plug, Semicircular	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11193-02010	Gasket(For Spark Plug Tube)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11193-15010	Gasket(For Spark Plug Tube)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11193-76020	Gasket, Spark Plug Tube	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11210-02040	Cover Sub-Assy, Cylinder Head	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11210-15071	Cover Sub-Assy, Cylinder Head	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
11213-02070	Gasket, Cylinder Head Cover	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
12180-02020	Cap Sub-Assy, Oil Filler	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90080-43020	Gasket(For Oil Filler Cap)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90105-06011	BOLT	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90109-06080	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90109-06222	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90109-10058	Bolt(For Cylinder Head Set)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90109-10059	Bolt(For Cylinder Head Set)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90176-06028	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90201-10344	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90210-06010	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90253-09001	Pin, Ring W/head	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90311-35022	Seal, Oil(For Camshaft Setting)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90430-20004	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90910-02120	Bolt(For Cylinder Head Set)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90910-02121	Bolt(For Cylinder Head Set)	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
90919-05024	Sensor, Cam Position	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
96411-42500	Plug, Tight, No.1	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
96411-42800	Plug, Tight, No.1	Cylinder Head ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE)
