| 15011-15080 |
Body Sub-Assy, Oil Pump |

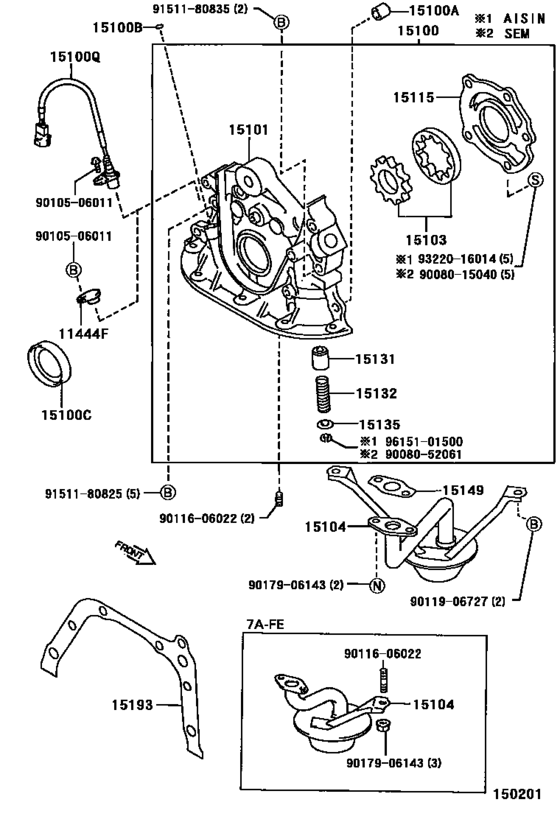

Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15100-02050 |
Pump Assy, Oil |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15100-15080 |
Pump Assy, Oil |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15101-02050 |
Body Sub-Assy, Oil Pump |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15103-02030 |
Gear Set, Oil Pump |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15103-02100 |
Gear Set, Oil Pump |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15103-15020 |
Gear Set, Oil Pump |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15104-15090 |
Strainer Sub-Assy, Oil |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15115-02030 |
Cover, Oil Pump |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15115-15020 |
Cover, Oil Pump |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15131-02030 |
Valve, Oil Pump Relief |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15131-24010 |
Valve, Oil Pump Relief |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15132-02030 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15132-40010 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15135-02030 |
Retainer, Oil Pump Relief Valve |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15135-15010 |
Retainer, Oil Pump Relief Valve |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15149-02020 |
Gasket, Oil Strainer Flange |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15197-15030 |
Gasket, Oil Pump |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 15197-16030 |
Gasket, Oil Pump |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 90080-11177 |
New Genuine Part |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 90080-15040 |
New Genuine Part |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 90080-52061 |
New Genuine Part |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 90105-06011 |
BOLT |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 90116-06022 |
Bolt, Stud(For Valve Push Rod Cover) |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 90119-06727 |
BOLT W-WASHER |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 90179-06143 |
NUT |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 90253-11021 |
Pin, Ring |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 90311-32002 |
Seal(For Oil Pump) |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 90311-32020 |
Oil Seal |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 90919-05011 |
Sensor, Crank Position |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 91511-80825 |
BOLTFLANGE |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 91511-80835 |
Bolt(For Transaxle Case & Engine Setting) |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 91511-C0835 |
Bolt(For Transaxle Case & Engine Setting) |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 93220-16014 |
SCREW |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 96151-01500 |
Ring, Hole Snap (For Pressure Regulator Valve Set) |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
| 96721-19010 |
Ring, O(For Oil Level Gage Guide) |
Engine Oil Pump ([10.1997 - 07.2000] (9710-0007)4AFE,7AFE) |
