Search › Model › AT212

AT212

Toyota CARINA · 1996 · 4,863 parts · 210 categories

4,863 items

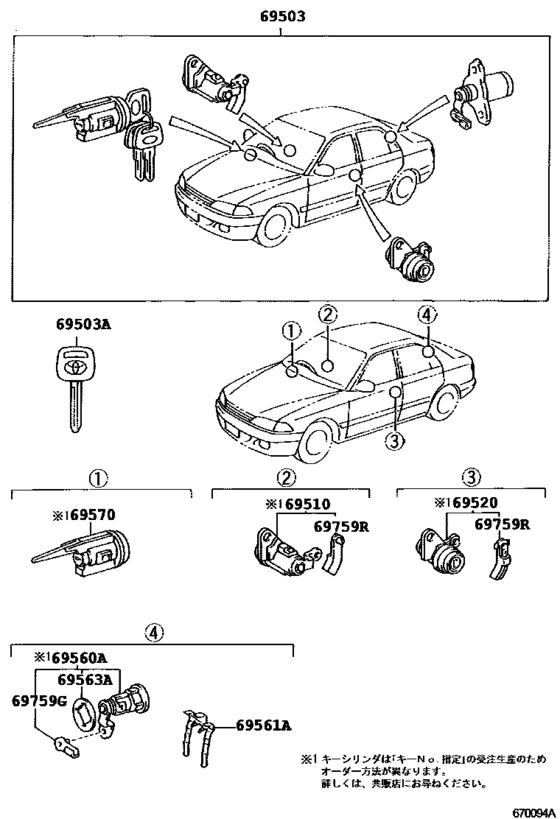

Lock Cylinder Set ([08.1996 - ] (9608- )) 20

#	OEM	Part name
69503	69005-2B540	Cylinder Set, Lock
69503	69005-2B630	Cylinder Set, Lock
69503	69005-2B550	Cylinder Set, Lock
69503	69005-2B640	Cylinder Set, Lock
69503	90999-00185	Key, Blank
69510	69510-44020	Cylinder Assy, Front Door Lock, Rh
69510	69510-20210	Cylinder Assy, Front Door Lock, Rh
69520	69520-44010	Cylinder Assy, Front Door Lock, Lh
69520	69520-20200	Cylinder Assy, Front Door Lock, Lh
69560	69560-20400	Cylinder Assy, Luggage Compartment Door Lock
69561	69511-16030	Retainer, Front Door Lock Cylinder
69563	69563-32020	Pad, Back Door Lock Cylinder
69570	69570-12150	Cylinder Assy, Ignition Switch Lock
69570	69570-20220	Cylinder Assy, Ignition Switch Lock
69570	69570-12220	Cylinder Assy, Ignition Switch Lock
69759	69759-20080	Snap, Door Lock Control Link
69759	69759-44010	Snap, Front Door Lock Cylinder
69759	69759-12080	Snap, Front Door Lock Cylinder
69759	69759-44020	Snap, Front Door Lock Cylinder
69759	69759-12090	Snap, Front Door Lock Cylinder

OEM	Part name	Category
69005-2B540	Cylinder Set, Lock	Lock Cylinder Set ([08.1996 - ] (9608- ))
69005-2B550	Cylinder Set, Lock	Lock Cylinder Set ([08.1996 - ] (9608- ))
69005-2B630	Cylinder Set, Lock	Lock Cylinder Set ([08.1996 - ] (9608- ))
69005-2B640	Cylinder Set, Lock	Lock Cylinder Set ([08.1996 - ] (9608- ))
69510-20210	Cylinder Assy, Front Door Lock, Rh	Lock Cylinder Set ([08.1996 - ] (9608- ))
69510-44020	Cylinder Assy, Front Door Lock, Rh	Lock Cylinder Set ([08.1996 - ] (9608- ))
69511-16030	Retainer, Front Door Lock Cylinder	Lock Cylinder Set ([08.1996 - ] (9608- ))
69520-20200	Cylinder Assy, Front Door Lock, Lh	Lock Cylinder Set ([08.1996 - ] (9608- ))
69520-44010	Cylinder Assy, Front Door Lock, Lh	Lock Cylinder Set ([08.1996 - ] (9608- ))
69560-20400	Cylinder Assy, Luggage Compartment Door Lock	Lock Cylinder Set ([08.1996 - ] (9608- ))
69563-32020	Pad, Back Door Lock Cylinder	Lock Cylinder Set ([08.1996 - ] (9608- ))
69570-12150	Cylinder Assy, Ignition Switch Lock	Lock Cylinder Set ([08.1996 - ] (9608- ))
69570-12220	Cylinder Assy, Ignition Switch Lock	Lock Cylinder Set ([08.1996 - ] (9608- ))
69570-20220	Cylinder Assy, Ignition Switch Lock	Lock Cylinder Set ([08.1996 - ] (9608- ))
69759-12080	Snap, Front Door Lock Cylinder	Lock Cylinder Set ([08.1996 - ] (9608- ))
69759-12090	Snap, Front Door Lock Cylinder	Lock Cylinder Set ([08.1996 - ] (9608- ))
69759-20080	Snap, Door Lock Control Link	Lock Cylinder Set ([08.1996 - ] (9608- ))
69759-44010	Snap, Front Door Lock Cylinder	Lock Cylinder Set ([08.1996 - ] (9608- ))
69759-44020	Snap, Front Door Lock Cylinder	Lock Cylinder Set ([08.1996 - ] (9608- ))
90999-00185	Key, Blank	Lock Cylinder Set ([08.1996 - ] (9608- ))
