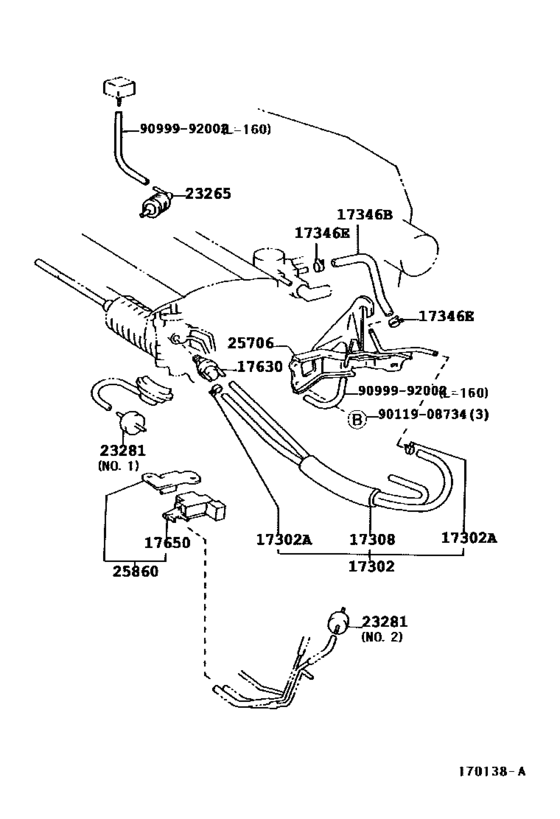

| 17302-16040 |
Hose Sub-Assy, Air |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 17308-16040 |
Hose Sub-Assy, Vacuum(For Idle-Up) |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 17346-16020 |
Hose, Air, No.6 |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 17630-16040 |
Valve Assy, Air Control |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 25706-16420 |
Pipe Sub-Assy, Vacuum Transmitting, No.1 |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 25860-16141 |
Valve Assy, Vacuum Switching, No.1 |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 25860-16142 |
Valve Assy, Vacuum Switching, No.1 |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 90119-08373 |
Bolt, W/washer(For Transmission Case Cover) |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 90119-08734 |
Bolt, W/washer(For Transmission Case Cover) |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 90467-10099 |
Clip Or Clamp(For Ventilation Hose) |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 90910-12110 |
Valve Assy, Vacuum Switching |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 90910-12218 |
Valve Assy, Vacuum Switching |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 90917-11009 |
Filter, Gas, No.1 |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 90925-01091 |
Valve, Vacuum Transmitting, No.1 |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 90925-01095 |
Valve, Vacuum Transmitting, No.1 |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 90999-92002 |
Air Hose (300 mm) |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 96132-41000 |
Clip, No.1(For Idle-Up Hose) |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
| 96132-51000 |
Clip Or Clamp(For Ventilation Hose) |
Vacuum Piping ([08.1996 - ] (9608- )4AGE) |
