Search › Model › AT210

AT210

Toyota CARINA · 1996 · 4,472 parts · 199 categories
AT210 ×

← Back to categories

4,472 items

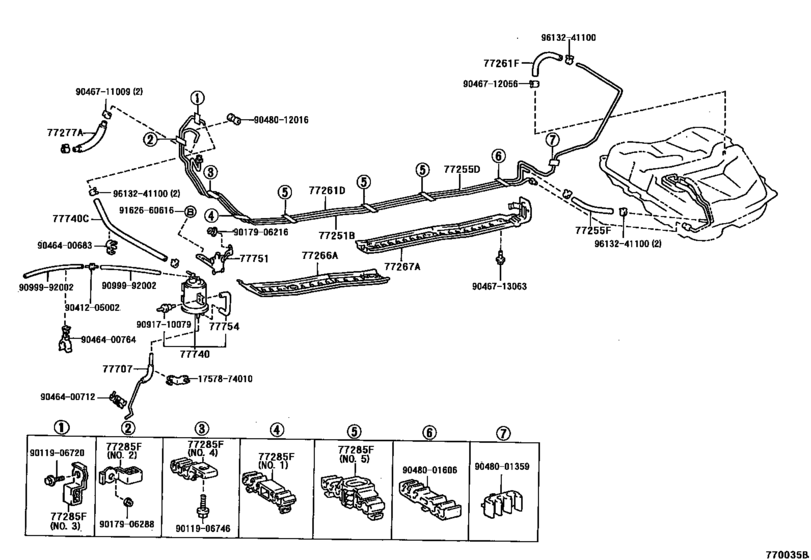

Fuel Tank & Tube ([08.1996 - ] (9608- )AT21#) 48
#OEMPart name
77251 77251-20751 Tube, Fuel Main
77251 77251-20750 Tube, Fuel Main
77255 77255-20620 Tube, Fuel Return
77255 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77255 95337-06020 Hose, Differential Pressure Control
77261 77261-20371 Tube, Fuel Tank To Canister
77261 77259-20180 Hose, Fuel, No.2 (For Fuel Tank To Canister Tube)
77261 77261-20370 Tube, Fuel Tank To Canister
77266 77266-20120 Protector, Fuel Tube, No.1
77267 77267-20110 Protector, Fuel Tube, No.2
77277 90447-12153 Hose, Fuel, No.1(For Return Tube, No.1)
77285 77285-12020 Clamp, Fuel Tube W/grommet, No.1
77285 77285-20150 Clamp, Fuel Tube W/grommet, No.1
77285 77285-20170 Clamp, Fuel Tube, No.1
77285 77286-21030 Clamp, Fuel Tube, No.1
77285 77298-20040 Clamp, Fuel Tube, No.1
77285 77286-20090 Clamp, Fuel Tube, No.1
77285 77298-12030 Clamp, Fuel Tube, No.1
77707 77707-20050 Tube Sub-Assy, Charcoal Canister Outlet
77740 77740-20420 Canister Assy, Charcoal
77740 90445-12267 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77751 77751-20310 Bracket, Charcoal Canister Base
77754 77754-20370 Hose, Charcoal Canister Outlet, No.1
1757874010 17578-74010 Clamp, Pipe
9011906720 90119-06720 New Genuine Part
9011906746 90119-06746 New Genuine Part
9011906746 91631-J0612 BRACKET
9017906216 90179-06216 Direct
9017906216 90179-06274 Nut
9017906288 90179-06288 NUT
9041205002 90412-05002 Way, 2(For Fuel Expansion Tank)
9046400683 90464-00683 New Genuine Part
9046400712 90464-00712 New Genuine Part
9046400764 90464-00764 New Genuine Part
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9046713063 90467-13063 New Genuine Part
9048001359 90480-01359 New Genuine Part
9048001606 90480-01606 GROMMET
9048012016 90480-12016 New Genuine Part
9091710079 90917-10079 Valve, Check, No.1
9099992002 90999-92002 Air Hose (300 mm)
9162660616 91626-60616 New Genuine Part
9162660616 91621-J0612 BOLT W-WASHER
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
