AT210

Toyota CARINA · 1996 · 4,472 parts · 199 categories

4,472 items

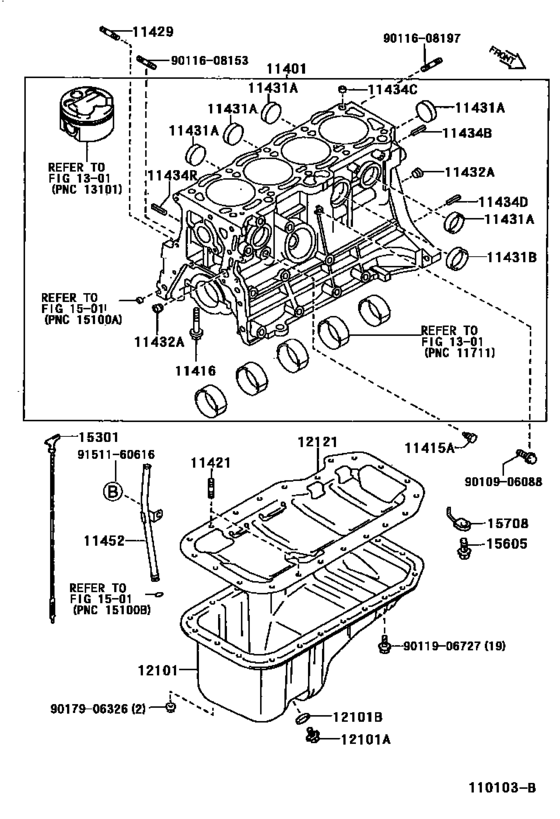

Cylinder Block ([08.1996 - ] (9608- )4AGE) 30

#	OEM	Part name
11401	11401-80001	Block Sub-Assy, Cylinder
11415	90345-52003	Cock Sub-Assy, Water Drain(For Cylinder Block)
11416	90105-10007	Bolt(For Crankshaft Bearing Cap Set)
11421	90116-06022	Bolt, Stud(For Valve Push Rod Cover)
11429	90116-08170	Bolt, Stud(For Alternator Bracket)
11431	96411-43500	Plug, Tight, No.1
11431	96411-44000	Plug, Tight, No.1
11432	90344-53006	Plug, Tight, No.1(For Timing Gear Cover)
11434	90250-10113	Pin, Straight(For Timing Gear Cover Set)
11434	90253-13017	Pin, Ring W/head
11434	90250-06003	Pin, Straight
11452	11452-16040	Guide, Oil Level Gage
12101	12101-16100	Pan Sub-Assy, Oil
12101	90341-12026	Plug, Drain
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12121	12122-16031	Plate, Oil Pan Baffle, No.1
15301	15301-16070	Gage Sub-Assy, Oil Level
15605	15703-16010	Valve Sub-Assy, Oil Check
15708	15708-16010	Nozzle Sub-Assy, Oil, No.1
15708	15708-16020	Nozzle Sub-Assy, Oil, No.1
9010906088	90109-06088	New Genuine Part
9011608153	90116-08153	New Genuine Part
9011608197	90116-08197	Bolt, Stud(For Rocker Support)
9011906727	90119-06727	BOLT W-WASHER
9011906727	90080-11177	New Genuine Part
9017906326	90179-06326	NUT W-WASHER
9017906326	90182-A0010	New Genuine Part
9151160616	91511-60616	BOLTFLANGE
9151160616	91511-B0616	BOLT, FLANGE

OEM	Part name	Category
11401-80001	Block Sub-Assy, Cylinder	Cylinder Block ([08.1996 - ] (9608- )4AGE)
11452-16040	Guide, Oil Level Gage	Cylinder Block ([08.1996 - ] (9608- )4AGE)
12101-16100	Pan Sub-Assy, Oil	Cylinder Block ([08.1996 - ] (9608- )4AGE)
12122-16031	Plate, Oil Pan Baffle, No.1	Cylinder Block ([08.1996 - ] (9608- )4AGE)
15301-16070	Gage Sub-Assy, Oil Level	Cylinder Block ([08.1996 - ] (9608- )4AGE)
15703-16010	Valve Sub-Assy, Oil Check	Cylinder Block ([08.1996 - ] (9608- )4AGE)
15708-16010	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([08.1996 - ] (9608- )4AGE)
15708-16020	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90080-11177	New Genuine Part	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90105-10007	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90109-06088	New Genuine Part	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90116-06022	Bolt, Stud(For Valve Push Rod Cover)	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90116-08153	New Genuine Part	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90116-08170	Bolt, Stud(For Alternator Bracket)	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90116-08197	Bolt, Stud(For Rocker Support)	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90119-06727	BOLT W-WASHER	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90179-06326	NUT W-WASHER	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90182-A0010	New Genuine Part	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90250-06003	Pin, Straight	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90250-10113	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90253-13017	Pin, Ring W/head	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90341-12026	Plug, Drain	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90344-53006	Plug, Tight, No.1(For Timing Gear Cover)	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90345-52003	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([08.1996 - ] (9608- )4AGE)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([08.1996 - ] (9608- )4AGE)
91511-60616	BOLTFLANGE	Cylinder Block ([08.1996 - ] (9608- )4AGE)
91511-B0616	BOLT, FLANGE	Cylinder Block ([08.1996 - ] (9608- )4AGE)
96411-43500	Plug, Tight, No.1	Cylinder Block ([08.1996 - ] (9608- )4AGE)
96411-44000	Plug, Tight, No.1	Cylinder Block ([08.1996 - ] (9608- )4AGE)
