Search › Model › AT200

AT200

Toyota CELICA · 1993 · 4,525 parts · 208 categories

4,525 items

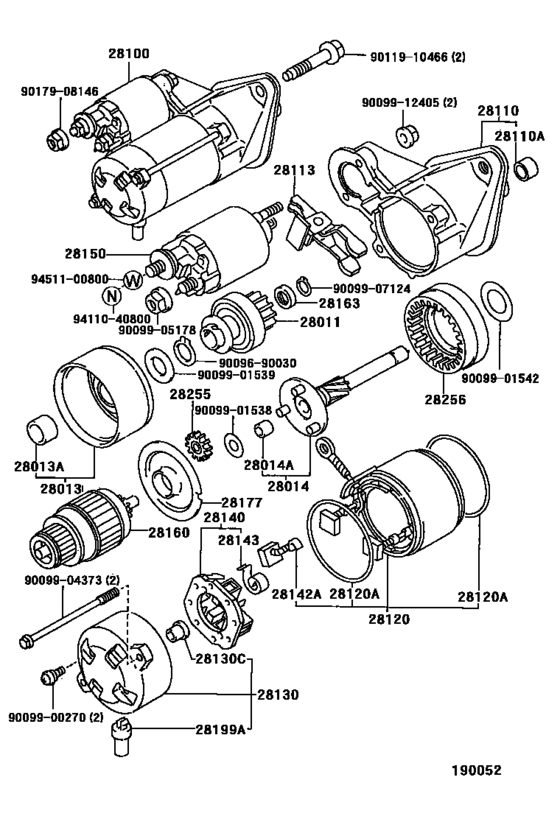

Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE) 55

#	OEM	Part name
28011	28011-70020	Clutch Sub-Assy, Starter
28011	28011-76070	Clutch Sub-Assy, Starter
28013	28013-70020	Bearing, Starter Center & Shock Absorber, No.1
28013	28013-70030	Bearing, Starter Center & Shock Absorber, No.1
28013	90099-10181	Bearing, Starter Center & Shock Absorber, No.2
28014	28014-70020	Shaft Sub-Assy, Planet Carrier
28014	90099-10180	Bush Or Bearing, Planet Carrier Shaft
28100	28100-16180	Starter Assy
28100	28100-16240	Starter Assy
28100	28100-16230	Starter Assy
28110	28110-16071	Housing Assy, Starter Drive
28110	28110-16130	Housing Assy, Starter Drive
28110	90099-10171	Bearing(For Starter Housing)
28113	28113-16070	Lever, Starter Pinion Drive
28120	28120-16180	Yoke Assy, Starter
28120	28120-70020	Yoke Assy, Starter
28120	90099-14064	Rubber(For Starter Yoke)
28120	90099-14092	Ring, O(For Starter Yoke)
28120	28120-76061	Yoke Assy, Starter
28130	28130-16070	Frame Assy, Starter Commutator End
28130	28130-16180	Frame Assy, Starter Commutator End
28130	90099-10183	Bearing, Starter Flange
28140	28140-70020	Holder Assy, Starter Brush
28140	28140-76060	Holder Assy, Starter Brush
28142	28142-70020	Brush, Starter
28143	28143-70020	Spring, Starter Brush
28143	28143-76060	Spring, Starter Brush
28150	28150-16160	Switch Assy, Magnet Starter
28150	28150-16181	Switch Assy, Magnet Starter
28150	28150-72230	Switch Assy, Magnetic
28150	28150-16180	Switch Assy, Magnet Starter
28160	28160-70021	Armature Assy, Starter
28160	28160-76060	Armature Assy, Starter
28163	28163-70020	Nut Or Collar, Pinion Stop, Starter
28177	28177-70020	Plate(For Starter Armature)
28199	28199-46080	Cover, Starter End Frame
28199	28199-74110	Cover, Starter End Frame
28255	28255-70020	Gear, Planet
28256	28256-70020	Gear, Starter Internal
9009690030	90096-90030	Ring, Snap, Starter Clutch Housing Disc
9009900270	90099-00270	Screw, Starter
9009901538	90099-01538	New Genuine Part
9009901539	90099-01539	New Genuine Part
9009901542	90099-01542	New Genuine Part
9009904373	90099-04373	BOLTTHROUGH
9009905178	90099-05178	New Genuine Part
9009907124	90099-07124	Bearing(For Starter Housing)
9009912405	90099-12405	New Genuine Part
9011910466	90119-10466	Bolt(For Transaxle & Engine Setting)
9011910466	91612-61050	Bolt(For Transaxle & Engine Setting)
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-70020	Clutch Sub-Assy, Starter	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28011-76070	Clutch Sub-Assy, Starter	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28013-70020	Bearing, Starter Center & Shock Absorber, No.1	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28013-70030	Bearing, Starter Center & Shock Absorber, No.1	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28014-70020	Shaft Sub-Assy, Planet Carrier	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28100-16180	Starter Assy	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28100-16230	Starter Assy	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28100-16240	Starter Assy	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28110-16071	Housing Assy, Starter Drive	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28110-16130	Housing Assy, Starter Drive	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28113-16070	Lever, Starter Pinion Drive	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28120-16180	Yoke Assy, Starter	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28120-70020	Yoke Assy, Starter	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28120-76061	Yoke Assy, Starter	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28130-16070	Frame Assy, Starter Commutator End	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28130-16180	Frame Assy, Starter Commutator End	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28140-70020	Holder Assy, Starter Brush	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28140-76060	Holder Assy, Starter Brush	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28142-70020	Brush, Starter	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28143-70020	Spring, Starter Brush	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28143-76060	Spring, Starter Brush	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28150-16160	Switch Assy, Magnet Starter	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28150-16180	Switch Assy, Magnet Starter	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28150-16181	Switch Assy, Magnet Starter	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28150-72230	Switch Assy, Magnetic	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28160-70021	Armature Assy, Starter	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28160-76060	Armature Assy, Starter	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28163-70020	Nut Or Collar, Pinion Stop, Starter	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28177-70020	Plate(For Starter Armature)	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28199-46080	Cover, Starter End Frame	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28199-74110	Cover, Starter End Frame	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28255-70020	Gear, Planet	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
28256-70020	Gear, Starter Internal	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90096-90030	Ring, Snap, Starter Clutch Housing Disc	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-00270	Screw, Starter	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-01538	New Genuine Part	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-01539	New Genuine Part	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-01542	New Genuine Part	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-04373	BOLTTHROUGH	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-05178	New Genuine Part	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-07124	Bearing(For Starter Housing)	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-10171	Bearing(For Starter Housing)	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-10180	Bush Or Bearing, Planet Carrier Shaft	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-10181	Bearing, Starter Center & Shock Absorber, No.2	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-10183	Bearing, Starter Flange	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-12405	New Genuine Part	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-14064	Rubber(For Starter Yoke)	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90099-14092	Ring, O(For Starter Yoke)	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90119-10466	Bolt(For Transaxle & Engine Setting)	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90179-08146	Nut	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
90179-08204	Nut	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
91612-61050	Bolt(For Transaxle & Engine Setting)	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
94110-40800	Nut(For Steering Damper)	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
94511-00800	WASHERSPRING	Starter ([11.1993 - ] 12V 0.8KW (9311- )7AFE)
