Search › Model › AT200

AT200

Toyota CELICA · 1993 · 4,525 parts · 208 categories

← Back to categories

4,525 items

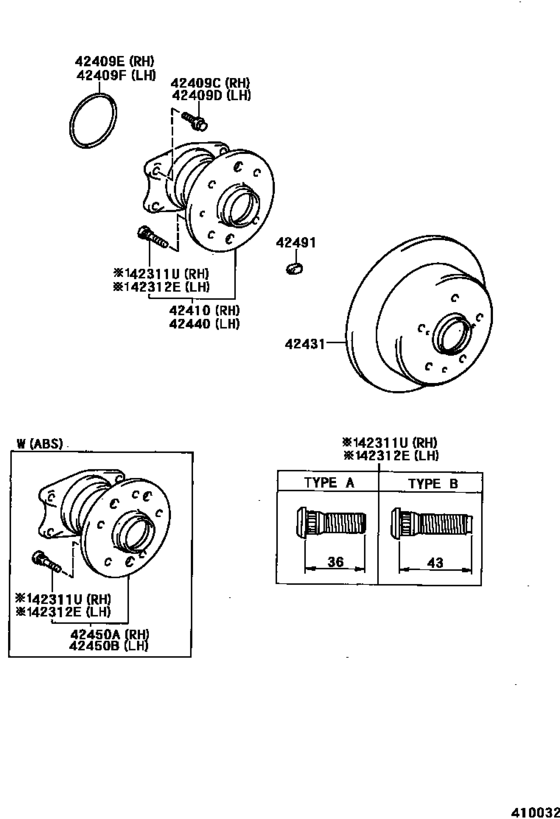

Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202) 14

#	OEM	Part name
42311	90942-02047	Bolt, Hub
42311	90942-02070	Bolt, Hub
42311	90942-02049	Bolt, Hub
42311	90942-02082	Bolt, Hub
42409	90105-10124	Bolt (For Axle Bearing)
42409	90301-63003	Ring, O (For Rear Axle Bearing Rh)
42409	90301-63006	Ring, O (For Rear Axle Bearing Rh)
42410	42410-20150	Hub & Bearing Assy, Rear Axle, Rh
42431	42431-20300	Disc, Rear
42431	42431-20360	Disc, Rear
42431	42431-20320	Disc, Rear
42450	42450-20050	Hub & Bearing Assy, Rear Axle, Rh
42450	42450-20051	Hub & Bearing Assy, Rear Axle, Rh
42491	47491-22020	Plug, Shoe Adjusting Hole (For Parking Brake)

OEM	Part name	Category
42410-20150	Hub & Bearing Assy, Rear Axle, Rh	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
42431-20300	Disc, Rear	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
42431-20320	Disc, Rear	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
42431-20360	Disc, Rear	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
42450-20050	Hub & Bearing Assy, Rear Axle, Rh	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
42450-20051	Hub & Bearing Assy, Rear Axle, Rh	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
47491-22020	Plug, Shoe Adjusting Hole (For Parking Brake)	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
90105-10124	Bolt (For Axle Bearing)	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
90301-63003	Ring, O (For Rear Axle Bearing Rh)	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
90301-63006	Ring, O (For Rear Axle Bearing Rh)	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
90942-02047	Bolt, Hub	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
90942-02049	Bolt, Hub	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
90942-02070	Bolt, Hub	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
90942-02082	Bolt, Hub	Rear Axle Shaft & Hub ([11.1993 - ] (9311- )AT200,ST202)
