Search › Model › AT200

AT200

Toyota CELICA · 1993 · 4,525 parts · 208 categories

4,525 items

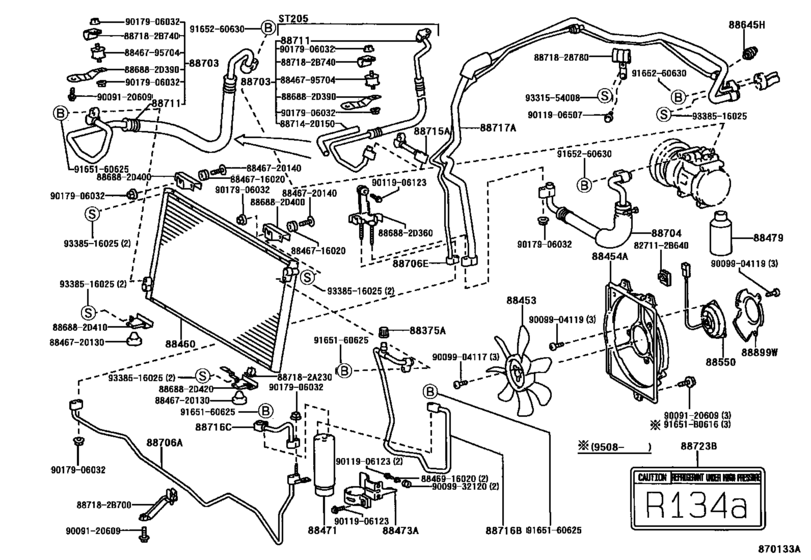

Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD) 55

#	OEM	Part name
88375	88375-30280	Cap, Service Valve (For Cooler Pipe)
88453	88453-20070	Fan, Cooling (For Condenser)
88454	88454-20140	Shroud, Fan
88460	88460-20440	Condenser Assy, Cooler
88460	88460-20470	Condenser Assy, Cooler
88471	88471-20050	Receiver & Dryer Assy, Cooler
88471	88471-34010	Receiver & Dryer Assy, Cooler
88473	88472-20170	Holder, Receiver
88479	90986-02007	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479	90986-02008	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88550	16363-46030	Motor, Cooling Fan
88550	88550-12130	Motor, Cooling Fan
88645	88645-20050	Switch, Pressure
88703	88703-20170	Hose Sub-Assy, Discharge
88704	88712-2B450	Hose Sub-Assy, Suction
88706	88706-20140	Tube Sub-Assy, Liquid, A
88706	88716-2D300	Tube Sub-Assy, Liquid, A
88706	88716-2D310	Tube Sub-Assy, Liquid, E
88711	88711-2B270	Hose, Cooler Refrigerant Discharge, No.1
88716	88706-20130	Pipe, Cooler Refrigerant Liquid, B
88716	88706-20170	Pipe, Cooler Refrigerant Liquid, C
88717	88717-2B480	Pipe, Cooler Refrigerant Suction, A
88723	88723-20040	Label, Cooler Service Caution
88899	88899-20280	Support Sub-Assy, B
91651	91651-B0616	BOLT WWASHER
827112	82711-2B640	Wire, Fuse To Fuse(for Combustion Heater)
886882	88688-2D360	Bracket, Cooler Diaphragm
886882	88688-2D390	Bracket, Cooler Diaphragm
886882	88688-2D400	Bracket, Cooler Diaphragm
886882	88688-2D410	Bracket, Cooler Diaphragm
886882	88688-2D420	Bracket, Cooler Diaphragm
887182	88718-2A230	Clamp(For Cooler Refrigerant Pipe), No.3
887182	88718-2B700	Pipe, Cooler Refrigerant Suction, No.2
887182	88718-2B740	Pipe, Cooler Refrigerant Suction, No.2
8846716020	88467-16020	Cushion, Cooler Condenser, No.2
8846720130	88467-20130	Cushion, Cooler Condenser, No.1
8846720140	88467-20140	Cushion, Cooler Condenser, No.1
8846795704	88467-95704	Cushion, Cooler Condenser, No.1
8846916020	88469-16020	Insulator, Cooler Condenser Mounting
8871420150	88714-20150	Hose, Cooler Refrigerant Liquid, No.1
8871828780	88718-28780	Pipe, Cooler Refrigerant Suction, No.2
9009120609	90091-20609	BOLT
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009904119	90099-04119	BOLT WASHER HEAD
9009932120	90099-32120	Cushion, Cooler Condenser, No.2
9009932120	90099-32130	Grommet (For Power Take-Off Cable Bracket)
9011906123	90119-06123	New Genuine Part
9011906123	90119-06465	BOLT
9011906507	90119-06507	New Genuine Part
9017906032	90179-06032	Direct
9017906032	90179-06274	Nut
9165160625	91651-60625	New Genuine Part
9165260630	91652-60630	New Genuine Part
9331554008	93315-54008	New Genuine Part
9338516025	93385-16025	New Genuine Part

OEM	Part name	Category
16363-46030	Motor, Cooling Fan	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
82711-2B640	Wire, Fuse To Fuse(for Combustion Heater)	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88375-30280	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88453-20070	Fan, Cooling (For Condenser)	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88454-20140	Shroud, Fan	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88460-20440	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88460-20470	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88467-16020	Cushion, Cooler Condenser, No.2	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88467-20130	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88467-20140	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88467-95704	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88469-16020	Insulator, Cooler Condenser Mounting	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88471-20050	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88471-34010	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88472-20170	Holder, Receiver	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88550-12130	Motor, Cooling Fan	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88645-20050	Switch, Pressure	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88688-2D360	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88688-2D390	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88688-2D400	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88688-2D410	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88688-2D420	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88703-20170	Hose Sub-Assy, Discharge	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88706-20130	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88706-20140	Tube Sub-Assy, Liquid, A	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88706-20170	Pipe, Cooler Refrigerant Liquid, C	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88711-2B270	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88712-2B450	Hose Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88714-20150	Hose, Cooler Refrigerant Liquid, No.1	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88716-2D300	Tube Sub-Assy, Liquid, A	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88716-2D310	Tube Sub-Assy, Liquid, E	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88717-2B480	Pipe, Cooler Refrigerant Suction, A	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88718-28780	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88718-2A230	Clamp(For Cooler Refrigerant Pipe), No.3	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88718-2B700	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88718-2B740	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88723-20040	Label, Cooler Service Caution	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
88899-20280	Support Sub-Assy, B	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
90091-20609	BOLT	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
90099-04117	Bolt, Radiator Side Support Plate	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
90099-04119	BOLT WASHER HEAD	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
90099-32120	Cushion, Cooler Condenser, No.2	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
90099-32130	Grommet (For Power Take-Off Cable Bracket)	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
90119-06123	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
90119-06465	BOLT	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
90119-06507	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
90179-06032	Direct	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
90179-06274	Nut	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
90986-02007	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
90986-02008	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
91651-60625	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
91651-B0616	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
91652-60630	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
93315-54008	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
93385-16025	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1993 - ] DEALER OPTION (9311- )LHD)
