AT192

Toyota CARINA · 1992 · 4,802 parts · 202 categories
AT192 ×

← Back to categories

4,802 items

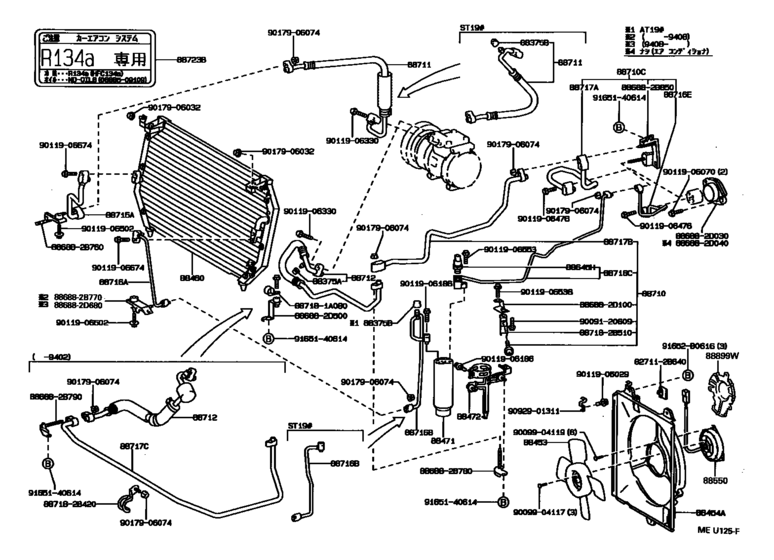

Heating & Air Conditioning - Cooler Piping ([08.1992 - ] MAKER OPTION,ｱﾘ(ABS) (9208- )AT19#,ST19#) 81
#OEMPart name
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88453 88453-20080 Fan, Rh
88454 88454-20020 Shroud, Fan
88460 88460-20370 Condenser Assy, Cooler
88460 88460-20390 Condenser Assy, Cooler
88471 88471-20050 Receiver & Dryer Assy, Cooler
88471 88471-34010 Receiver & Dryer Assy, Cooler
88472 88472-20160 Bracket, Receiver Tank, No.1
88550 16363-46030 Motor, Cooling Fan
88550 88550-12130 Motor, Cooling Fan
88645 88645-20050 Switch, Pressure
88710 88710-20230 Tube Assy, Air Conditioner
88710 88710-20250 Tube Assy, Air Conditioner
88711 88711-20860 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-2B120 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-2B121 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-2B210 Hose, Cooler Refrigerant Suction, No.1
88712 88712-2B430 Hose, Cooler Refrigerant Suction, No.1
88712 88712-2B780 Hose, Cooler Refrigerant Suction, No.1
88715 88715-20120 Pipe, Cooler Refrigerant Discharge, A
88715 88715-20170 Pipe, Cooler Refrigerant Discharge, A
88716 88716-2D140 Pipe, Cooler Refrigerant Liquid, A
88716 88716-2D180 Pipe, Cooler Refrigerant Liquid, B
88716 88716-2D181 Pipe, Cooler Refrigerant Liquid, B
88716 88710-20370 Pipe, Cooler Refrigerant Liquid, C
88716 88716-2D090 Pipe, Cooler Refrigerant Liquid, C
88716 88716-2D220 Pipe, Cooler Refrigerant Liquid, C
88716 88716-2D170 Pipe, Cooler Refrigerant Liquid, E
88717 88717-2B230 Pipe, Cooler Refrigerant Suction, A
88717 88717-2B160 Pipe, Cooler Refrigerant Suction, B
88717 88717-2B450 Pipe, Cooler Refrigerant Suction, A
88717 88717-2B220 Pipe, Cooler Refrigerant Suction, C
88717 88717-2B221 Pipe, Cooler Refrigerant Suction, C
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
88899 88899-20270 Support Sub-Assy, B
91652 91652-B0616 New Genuine Part
91652 91651-B0616 BOLT WWASHER
827112 82711-2B640 Wire, Fuse To Fuse(for Combustion Heater)
886882 88688-2B760 Bracket, Cooler Diaphragm
886882 88469-28010 Collar, Condenser Bracket, No.1
886882 88688-2D060 Bracket, Cooler Diaphragm
886882 90099-32130 Grommet (For Power Take-Off Cable Bracket)
886882 88688-2B770 Bracket, Cooler Diaphragm
886882 88688-2B780 Bracket, Cooler Diaphragm
886882 88688-2B790 Bracket, Cooler Diaphragm
886882 88688-2B791 Bracket, Cooler Diaphragm
886882 88688-2B850 Bracket, Cooler Diaphragm
886882 88688-2D030 Bracket, Cooler Diaphragm
886882 88688-2D040 Bracket, Cooler Diaphragm
886882 88688-2D100 Bracket, Cooler Diaphragm
886882 88688-2D500 Bracket, Cooler Diaphragm
886882 88688-2D680 Bracket, Cooler Diaphragm
887181 88718-1A080 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2B420 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2B510 Pipe, Cooler Refrigerant Suction, No.2
9009120609 90091-20609 BOLT
9009904117 90099-04117 Bolt, Radiator Side Support Plate
9009904119 90099-04119 BOLT WASHER HEAD
9011906029 90119-06029 New Genuine Part
9011906029 91651-G0616 BOLT WWASHER
9011906070 90119-06070 BOLT
9011906070 90119-06442 BOLT WWASHER
9011906186 90119-06186 BOLT
9011906186 90119-06420 BOLT WWASHER
9011906330 90119-06330 Bolt
9011906476 90119-06476 New Genuine Part
9011906476 91652-60630 New Genuine Part
9011906502 90119-06502 New Genuine Part
9011906538 90119-06538 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9011906538 91611-G0612 Bolt
9011906553 90119-06553 New Genuine Part
9011906553 91651-F0625 BOLT WWASHER
9011906674 90119-06674 New Genuine Part
9011906674 91651-G0645 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017906074 90179-06074 Nut(For Suspension Control Oil Cooler)
9092901311 90929-01311 New Genuine Part
9165140614 91651-40614 Bolt
