Search › Model › AT192

AT192

Toyota CARINA · 1992 · 4,802 parts · 202 categories

4,802 items

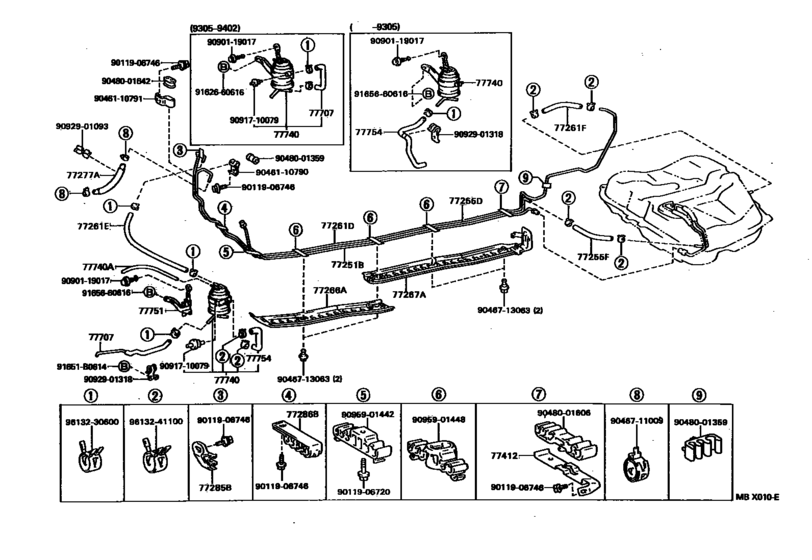

Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190) 50

#	OEM	Part name
77251	77251-20620	Tube, Fuel Main
77251	77251-20590	Tube, Fuel Main
77255	77255-20550	Tube, Fuel Return
77255	77255-20460	Tube, Fuel Return
77255	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77255	95337-06020	Hose, Differential Pressure Control
77261	77261-20250	Tube, Fuel Tank To Canister
77261	90445-12267	Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77266	77266-20120	Protector, Fuel Tube, No.1
77267	77267-20110	Protector, Fuel Tube, No.2
77277	90447-12081	Hose, Fuel
77285	77285-20080	Clamp, Fuel Tube W/grommet, No.1
77286	77286-20070	Clamp, Fuel Tube W/grommet, No.2
77412	77412-20040	Support, Fuel Tube Grommet, No.2
77707	77707-20030	Tube Sub-Assy, Charcoal Canister Outlet
77707	77707-20040	Tube Sub-Assy, Charcoal Canister Outlet
77740	77740-20370	Canister Assy, Charcoal
77740	77751-20310	Bracket, Charcoal Canister Base
77740	77740-20460	Canister Assy, Charcoal
77740	90999-92002	Air Hose (300 mm)
77740	77740-20410	Canister Assy, Charcoal
77751	77751-20360	Bracket, Charcoal Canister Base
77754	77754-20250	Hose, Charcoal Canister Outlet, No.1
77754	77754-20260	Hose, Charcoal Canister Outlet, No.1
77754	77754-20370	Hose, Charcoal Canister Outlet, No.1
91651	91651-B0614	BOLT WWASHER
9011906720	90119-06720	New Genuine Part
9011906746	90119-06746	New Genuine Part
9011906746	91631-J0612	BRACKET
9046110790	90461-10790	New Genuine Part
9046110791	90461-10791	New Genuine Part
9046711009	90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009	96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)
9046713063	90467-13063	New Genuine Part
9048001359	90480-01359	New Genuine Part
9048001606	90480-01606	GROMMET
9048001642	90480-01642	New Genuine Part
9090119017	90901-19017	New Genuine Part
9090119017	91621-J0612	BOLT W-WASHER
9091710079	90917-10079	Valve, Check, No.1
9092901093	90929-01093	New Genuine Part
9092901318	90929-01318	New Genuine Part
9095901442	90959-01442	CLAMP
9095901448	90959-01448	CLAMP
9162660616	91626-60616	New Genuine Part
9165660616	91656-60616	BOLT
9165660616	91651-60616	BOLT
9613230600	96132-30600	Clip(For Actuator Hose)
9613230600	96132-51100	Clip (For Hose)
9613241100	96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)

OEM	Part name	Category
77251-20590	Tube, Fuel Main	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77251-20620	Tube, Fuel Main	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77255-20460	Tube, Fuel Return	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77255-20550	Tube, Fuel Return	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77261-20250	Tube, Fuel Tank To Canister	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77266-20120	Protector, Fuel Tube, No.1	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77267-20110	Protector, Fuel Tube, No.2	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77285-20080	Clamp, Fuel Tube W/grommet, No.1	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77286-20070	Clamp, Fuel Tube W/grommet, No.2	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77412-20040	Support, Fuel Tube Grommet, No.2	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77707-20030	Tube Sub-Assy, Charcoal Canister Outlet	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77707-20040	Tube Sub-Assy, Charcoal Canister Outlet	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77740-20370	Canister Assy, Charcoal	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77740-20410	Canister Assy, Charcoal	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77740-20460	Canister Assy, Charcoal	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77751-20310	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77751-20360	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77754-20250	Hose, Charcoal Canister Outlet, No.1	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77754-20260	Hose, Charcoal Canister Outlet, No.1	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
77754-20370	Hose, Charcoal Canister Outlet, No.1	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90119-06720	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90119-06746	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90445-12267	Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90447-12081	Hose, Fuel	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90461-10790	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90461-10791	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90467-13063	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90480-01359	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90480-01606	GROMMET	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90480-01642	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90901-19017	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90917-10079	Valve, Check, No.1	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90929-01093	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90929-01318	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90959-01442	CLAMP	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90959-01448	CLAMP	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
90999-92002	Air Hose (300 mm)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
91621-J0612	BOLT W-WASHER	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
91626-60616	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
91631-J0612	BRACKET	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
91651-60616	BOLT	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
91651-B0614	BOLT WWASHER	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
91656-60616	BOLT	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
96132-30600	Clip(For Actuator Hose)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,ST190)
