AT192

Toyota CARINA · 1992 · 4,802 parts · 202 categories

4,802 items

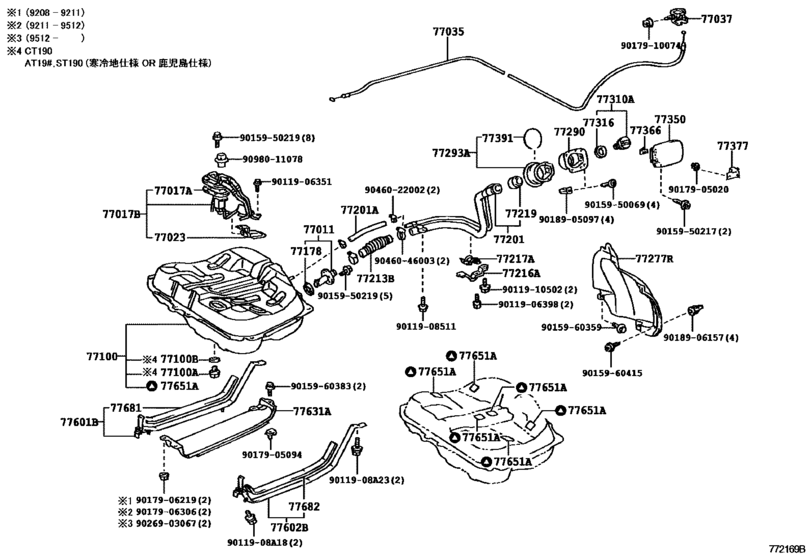

Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190) 70

#	OEM	Part name
77011	77011-10050	Pipe Sub-Assy, Fuel Tank Filler, Lower
77035	77035-20390	Cable Sub-Assy, Fuel Lid Lock Control
77035	77035-20430	Cable Sub-Assy, Fuel Lid Lock Control
77037	77037-20070	Lock Sub-Assy, Fuel Filler Opening Lid
77100	77001-20940	Tank Assy, Fuel
77100	77001-20943	Tank Assy, Fuel
77100	77001-29295	Tank Assy, Fuel
77100	77001-29296	Tank Assy, Fuel
77100	90105-12116	Plug(For Fuel Tank)
77100	90341-20004	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77100	90430-20007	Gasket(For Fuel Tank)
77178	77178-20030	Gasket, Fuel Tank Filler Pipe, Lower
77201	77201-20390	Pipe Sub-Assy, Fuel Tank Inlet
77201	90445-22024	Hose, Fuel, No.1(For Fuel Tank)
77213	77213-18010	Hose, Fuel Tank To Filler Pipe
77216	77216-20100	Support, Fuel Tank Filler Pipe, No.1
77216	77216-20170	Support, Fuel Tank Filler Pipe, No.1
77217	77217-20050	Support, Fuel Tank Filler Pipe, No.2
77217	77217-32030	Support, Fuel Tank Filler Pipe, No.2
77219	77219-32030	Cover, Fuel Tank Filler Pipe
77277	77277-20230	Protector, Fuel Tank Filler Pipe
77290	77290-20140	Shield Assy, Fuel Tank Filler Pipe
77293	77293-20090	Shield, Fuel Tank Filler Pipe, No.3
77310	77310-16011	Cap Assy, Fuel Tank
77310	77310-12140	Cap Assy, Fuel Tank
77316	77316-16010	Gasket (For Fuel Tank Cap)
77350	77350-20230	Lid Assy, Fuel Filler Opening
77366	77360-20030	Spring, Fuel Filler Opening Lid Hinge
77377	77377-20060	Retainer, Fuel Filler Opening Lid Lock
77391	77391-20020	Ring, Fuel Inlet Box
77601	77601-20090	Band Sub-Assy, Fuel Tank, No.1 Rh
77601	77601-20220	Band Sub-Assy, Fuel Tank, No.1 Rh
77601	90269-03067	RIVET
77602	77602-20140	Band Sub-Assy, Fuel Tank, No.1 Lh
77631	77631-20070	Protector, Fuel Tank, Lower Center
77631	77631-20090	Protector, Fuel Tank, Lower Center
77651	77651-32050	Cushion, Fuel Tank, No.1
77681	77681-32040	Seat, Fuel Tank Band, Rh
77681	77681-32060	Seat, Fuel Tank Band, Rh
77681	77681-32070	Seat, Fuel Tank Band, Rh
9011908	90119-08A18	New Genuine Part
9011908	90129-08001	BOLT WWASHER
9011908	90119-08A23	New Genuine Part
9011906351	90119-06351	New Genuine Part
9011906398	90119-06398	BOLT WWASHER
9011908511	90119-08511	BOLT
9011910502	90119-10502	BOLT WWASHER
9015950069	90159-50069	SCREW
9015950217	90159-50217	SCREW WWASHER
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9015960359	90159-60359	New Genuine Part
9015960383	90159-60383	SCREW WWASHER
9015960383	90159-A0010	SCREW WWASHER TAPP
9015960415	90159-60415	SCREW WWASHER
9017905020	90179-05020	NUT
9017905020	90179-05011	NUT
9017905094	90179-05094	New Genuine Part
9017906219	90179-06219	Nut
9017906219	90182-A0005	Nut
9017906306	90179-06306	NUT
9017910074	90179-10074	New Genuine Part
9018905097	90189-05097	GROMMET SCREW
9018906157	90189-06157	GROMMET SCREW
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046003	90460-46003	Clamp (For Fuel Filler Pipe)
9046046003	90460-46005	Clamp (For Fuel Filler Pipe)
9098011078	90980-11078	HOUSING CONNECTOR

OEM	Part name	Category
77001-20940	Tank Assy, Fuel	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77001-20943	Tank Assy, Fuel	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77001-29295	Tank Assy, Fuel	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77001-29296	Tank Assy, Fuel	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77011-10050	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77035-20390	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77035-20430	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77037-20070	Lock Sub-Assy, Fuel Filler Opening Lid	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77178-20030	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77201-20390	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77213-18010	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77216-20100	Support, Fuel Tank Filler Pipe, No.1	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77216-20170	Support, Fuel Tank Filler Pipe, No.1	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77217-20050	Support, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77217-32030	Support, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77219-32030	Cover, Fuel Tank Filler Pipe	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77277-20230	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77290-20140	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77293-20090	Shield, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77310-12140	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77310-16011	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77350-20230	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77360-20030	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77377-20060	Retainer, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77391-20020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77601-20090	Band Sub-Assy, Fuel Tank, No.1 Rh	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77601-20220	Band Sub-Assy, Fuel Tank, No.1 Rh	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77602-20140	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77631-20070	Protector, Fuel Tank, Lower Center	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77631-20090	Protector, Fuel Tank, Lower Center	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77651-32050	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77681-32040	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77681-32060	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
77681-32070	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90105-12116	Plug(For Fuel Tank)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90119-06351	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90119-06398	BOLT WWASHER	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90119-08511	BOLT	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90119-08A18	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90119-08A23	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90119-10502	BOLT WWASHER	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90129-08001	BOLT WWASHER	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90159-50069	SCREW	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90159-50217	SCREW WWASHER	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90159-50219	BOLT	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90159-60359	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90159-60383	SCREW WWASHER	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90159-60415	SCREW WWASHER	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90159-A0010	SCREW WWASHER TAPP	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90159-A0057	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90179-05011	NUT	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90179-05020	NUT	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90179-05094	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90179-06219	Nut	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90179-06306	NUT	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90179-10074	New Genuine Part	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90182-A0005	Nut	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90189-05097	GROMMET SCREW	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90189-06157	GROMMET SCREW	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90269-03067	RIVET	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90341-20004	Plug(For Fuel Tank)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90430-20007	Gasket(For Fuel Tank)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90445-22024	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90460-22001	CLAMP	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90460-22002	CLAMP	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90460-46003	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
90980-11078	HOUSING CONNECTOR	Fuel Tank & Tube ([08.1992 - ] (9208- )AT19#,CT190,ST190)
