AT192

Toyota CARINA · 1992 · 4,802 parts · 202 categories

4,802 items

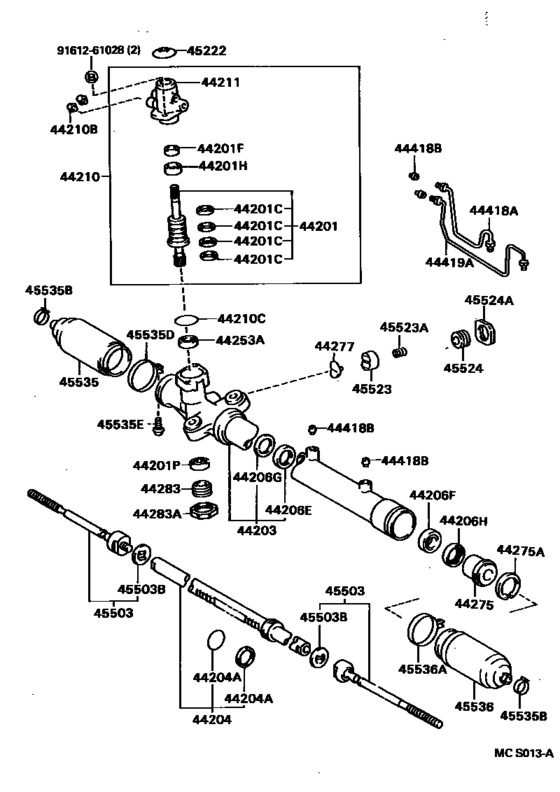

Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190) 53

#	OEM	Part name
44201	44201-20290	Valve Sub-Assy, Power Steering Control
44201	44201-20390	Valve Sub-Assy, Power Steering Control
44201	44201-44050	Valve Sub-Assy, Power Steering Control
44201	90562-33002	Ring(For Power Steering Control Valve)
44201	90311-19006	Seal, Oil(For Power Steering Control Valve)
44201	90363-19002	Bearing(For Power Steering Control Valve)
44201	90363-13002	Bearing(For Power Steering Control Valve Lower)
44203	44203-20400	Housing Sub-Assy, Power Steering Rack
44203	44203-20410	Housing Sub-Assy, Power Steering Rack
44204	44204-20260	Rack Sub-Assy, Power Steering
44204	90301-35002	Ring(For Rack Steering Piston)
44204	90562-38004	Ring(For Rack Steering Piston)
44206	90310-23006	Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206	90310-25025	Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206	90560-26015	Spacer, No.1(For Power Steering Cylinder Tube)
44210	44210-20370	Valve Assy, Power Steering Control
44210	44210-20380	Valve Assy, Power Steering Control
44210	44210-44050	Valve Assy, Power Steering Control
44210	90410-04006	Seat, Union(For Power Steering Control Valve)
44210	90410-06002	Seat, Union(For Power Steering Control Valve)
44210	96711-24060	Ring, O(For Power Steering Control Valve)
44211	44211-20100	Housing, Control Valve
44253	90310-28001	Seal, Oil(For Power Steering Control Valve)
44253	90310-28003	Seal, Oil(For Power Steering Rack Housing)
44275	44275-20120	Stopper, Cylinder End
44275	44275-20130	Stopper, Cylinder End
44275	90521-51004	Ring, Hole Snap(For Cylinder End Stopper)
44277	44277-20040	Seat, Rack Guide
44283	45524-50010	Cap, Rack Housing
44283	90179-36002	Nut(For Power Steering Pinion Cap)
44418	44418-20230	Tube, Steering Right Turn Pressure
44418	90410-04003	Seat, Union(For Power Steering Control Valve)
44418	96390-71200	Seat, Union(For Steering Turn Pressure Tube)
44419	44419-20220	Tube, Steering Left Turn Pressure
44419	44419-20320	Tube, Steering Left Turn Pressure
45222	45222-32010	Cover, Dust(For Power Steering Gear)
45503	45503-29435	End Sub-Assy, Steering Rack
45503	45503-29615	End Sub-Assy, Steering Rack
45503	90214-14002	Washer, Claw(For Power Steering Rack End)
45523	45523-20040	Guide, Rack(For Steering Gear)
45523	90501-23007	Spring(For Power Steering Rack Guide)
45523	90501-29036	Spring(For Steering Gear Rack Guide)
45535	45535-20080	Boot, Steering Rack, No.1
45535	45535-20190	Boot, Steering Rack, No.1
45535	90467-19018	Clip(For Power Steering Rack Boot)
45535	90467-19021	Clamp Or Clip, Hose(For Water By-Pass Hose)
45535	90460-49002	Clamp(For Power Steering Rack Boot)
45535	90149-30009	Screw(For Steering Rack Boot Clamp)
45535	93269-63020	Screw(For Steering Rack Boot Clamp)
45536	45535-20140	Boot, Steering Rack, No.2
45536	45535-20170	Boot, Steering Rack, No.2
45536	90460-52001	Clamp(For Power Steering Rack Boot)
9161261028	91612-61028	Bolt(For Transaxle Case & Engine Setting)

OEM	Part name	Category
44201-20290	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44201-20390	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44201-44050	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44203-20400	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44203-20410	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44204-20260	Rack Sub-Assy, Power Steering	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44210-20370	Valve Assy, Power Steering Control	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44210-20380	Valve Assy, Power Steering Control	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44210-44050	Valve Assy, Power Steering Control	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44211-20100	Housing, Control Valve	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44275-20120	Stopper, Cylinder End	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44275-20130	Stopper, Cylinder End	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44277-20040	Seat, Rack Guide	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44418-20230	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44419-20220	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
44419-20320	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
45222-32010	Cover, Dust(For Power Steering Gear)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
45503-29435	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
45503-29615	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
45523-20040	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
45524-50010	Cap, Rack Housing	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
45535-20080	Boot, Steering Rack, No.1	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
45535-20140	Boot, Steering Rack, No.2	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
45535-20170	Boot, Steering Rack, No.2	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
45535-20190	Boot, Steering Rack, No.1	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90149-30009	Screw(For Steering Rack Boot Clamp)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90179-36002	Nut(For Power Steering Pinion Cap)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90214-14002	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90301-35002	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90310-23006	Seal, Oil, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90310-25025	Seal, Oil, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90310-28001	Seal, Oil(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90310-28003	Seal, Oil(For Power Steering Rack Housing)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90311-19006	Seal, Oil(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90363-13002	Bearing(For Power Steering Control Valve Lower)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90363-19002	Bearing(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90410-04003	Seat, Union(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90410-04006	Seat, Union(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90410-06002	Seat, Union(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90460-49002	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90460-52001	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90467-19018	Clip(For Power Steering Rack Boot)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90467-19021	Clamp Or Clip, Hose(For Water By-Pass Hose)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90501-23007	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90501-29036	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90521-51004	Ring, Hole Snap(For Cylinder End Stopper)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90560-26015	Spacer, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90562-33002	Ring(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
90562-38004	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
91612-61028	Bolt(For Transaxle Case & Engine Setting)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
93269-63020	Screw(For Steering Rack Boot Clamp)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
96390-71200	Seat, Union(For Steering Turn Pressure Tube)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
96711-24060	Ring, O(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190)
