Search › Model › AT192

AT192

Toyota CARINA · 1992 · 4,802 parts · 202 categories

← Back to categories

4,802 items

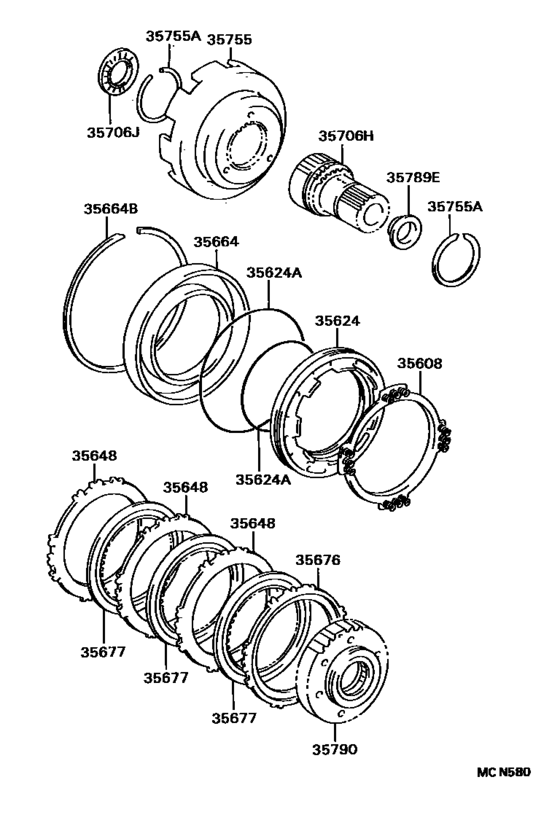

Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM) 18

#	OEM	Part name
35608	35608-32010	Spring Sub-Assy, 2Nd Brake Piston Return
35624	35624-32010	Piston, 2Nd Brake
35624	90301-99021	Ring, O (For 2Nd Brake Piston)
35624	90301-99023	Ring, O (For 2Nd Brake Piston)
35648	35648-12010	Plate, Clutch (For 2Nd Brake)
35664	35664-32010	Cylinder, 2Nd Brake
35664	90520-99013	Ring, Hole Snap (For 2Nd Brake Cylinder)
35676	35676-12010	Flange, Brake (For 2Nd Brake)
35676	35676-12030	Flange, Brake (For 2Nd Brake)
35677	35677-20060	Disc, Clutch (For 2Nd Brake)
35706	35706-12010	Gear Sub-Assy, Planetary Sun
35706	90374-28011	Bearing, Thrust Needle Roller (For Planetary Sun Gear)
35755	35755-32020	Drum, Sun Gear Input
35755	90520-44002	Ring, Shaft Snap (For Sun Gear Input Drum)
35755	90520-46010	Ring, Shaft Snap (For Sun Gear Input Drum)
35755	90520-47003	Ring, Shaft Snap (For Sun Gear Input Drum)
35789	35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)
35790	35790-32050	Clutch Assy, 1 Way

OEM	Part name	Category
35608-32010	Spring Sub-Assy, 2Nd Brake Piston Return	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
35624-32010	Piston, 2Nd Brake	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
35648-12010	Plate, Clutch (For 2Nd Brake)	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
35664-32010	Cylinder, 2Nd Brake	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
35676-12010	Flange, Brake (For 2Nd Brake)	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
35676-12030	Flange, Brake (For 2Nd Brake)	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
35677-20060	Disc, Clutch (For 2Nd Brake)	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
35706-12010	Gear Sub-Assy, Planetary Sun	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
35755-32020	Drum, Sun Gear Input	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
35790-32050	Clutch Assy, 1 Way	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
90301-99021	Ring, O (For 2Nd Brake Piston)	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
90301-99023	Ring, O (For 2Nd Brake Piston)	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
90374-28011	Bearing, Thrust Needle Roller (For Planetary Sun Gear)	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
90520-44002	Ring, Shaft Snap (For Sun Gear Input Drum)	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
90520-46010	Ring, Shaft Snap (For Sun Gear Input Drum)	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
90520-47003	Ring, Shaft Snap (For Sun Gear Input Drum)	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
90520-99013	Ring, Hole Snap (For 2Nd Brake Cylinder)	Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM)
