AT191

Toyota CALDINA · 1996 · 3,770 parts · 191 categories
AT191 ×

← Back to categories

3,770 items

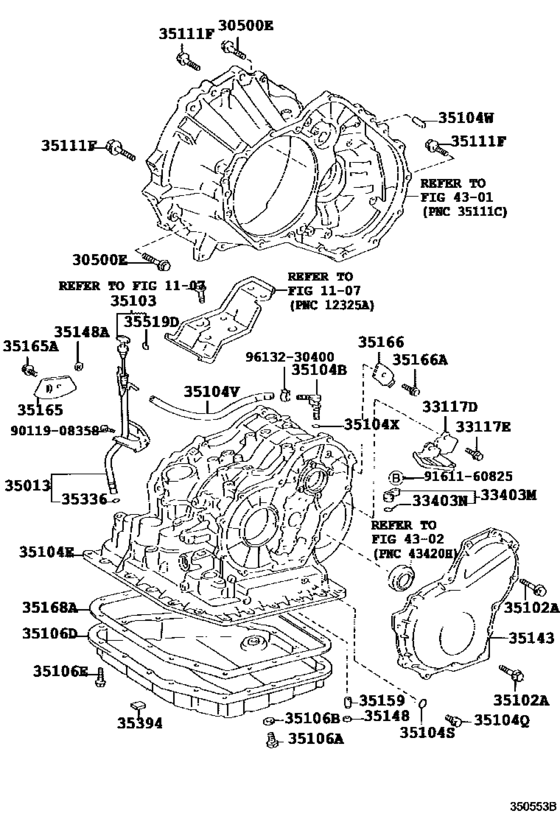

Transmission Case & Oil Pan (Atm) ([01.1996 - 08.1997] A245E (9601-9708)AT191..4FC) 45
#OEMPart name
30500 90105-10077 Bolt(For Transaxle Case Protector)
30500 90119-12168 Bolt(For Transaxle & Engine Setting)
30500 91619-61245 Bolt(For Transaxle & Engine Setting)
33117 33117-12030 Protector, Transaxle Case
33117 90105-08040 Bolt(For Plate Bolt Lock)
33117 91641-H0820 Bolt
33403 33403-35230 Cover Sub-Assy, Speedometer Driven Hole
33403 96711-24030 Ring,o (For Speedometer Driven Hole Cover)
35013 35013-20660 Tube Sub-Assy, Transmission Oil Filler
35102 90105-06198 Bolt (For Transaxle Rear Cover Setting)
35102 91511-80625 Bolt (For Transaxle Rear Cover Setting)
35103 35103-20380 Gage Sub-Assy, Transmission Oil Level
35104 90930-03132 Plug, Breather, No.1 (Atm)
35104 90930-03146 Plug, Breather, No.1 (Atm)
35104 35104-20100 Case Sub-Assy, Automatic Transaxle
35104 90341-08001 Plug, Transaxle Case, No.1
35104 90301-06196 O Ring, Transaxle Case, No.1
35104 90447-11031 Hose (For Breather Plug)
35104 90250-10021 Pin, Straight (For Transaxle Case)
35104 90301-06010 Ring, O(For Breather Plug)
35106 90341-10011 Drain Plug (No Type)
35106 35178-30010 Drain Plug Gasket
35106 35106-12120 Pan Sub-Assy, Automatic Transaxle Oil
35106 35106-12090 Pan Sub-Assy, Automatic Transaxle Oil
35106 90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35111 90105-08071 Bolt (For Transaxle Rear Cover Setting)
35111 90105-08288 Bolt (For Transaxle Housing & Transaxle Case Setting)
35143 35143-12030 Cover, Transmission Case, Rear
35148 35148-16010 Gasket (For Automatic Transfer Case)
35148 35148-12010 Gasket, Governor Apply, No.2
35159 35159-20010 Gasket, Brake Drum
35165 35165-12010 Plate, Transmission Case, No.1
35165 90105-06049 Bolt(For Transmission Case No.2 Plate)
35166 35166-12020 Plate, Transmission Case, No.3
35168 35168-12030 Gasket, Automatic Transaxle Oil Pan
35336 90301-09173 Ring, O(For Transmission Oil Filler Tube)
35394 35394-30011 Magnet, Oil Cleaner (For Transmission)
35519 35519-20020 Label, Automatic Transmission Information
35519 35519-30010 Label, Automatic Transmission Information
9011908358 90119-08358 BOLT WWASHER
9011908358 91621-G0816 BOLT WWASHER
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
