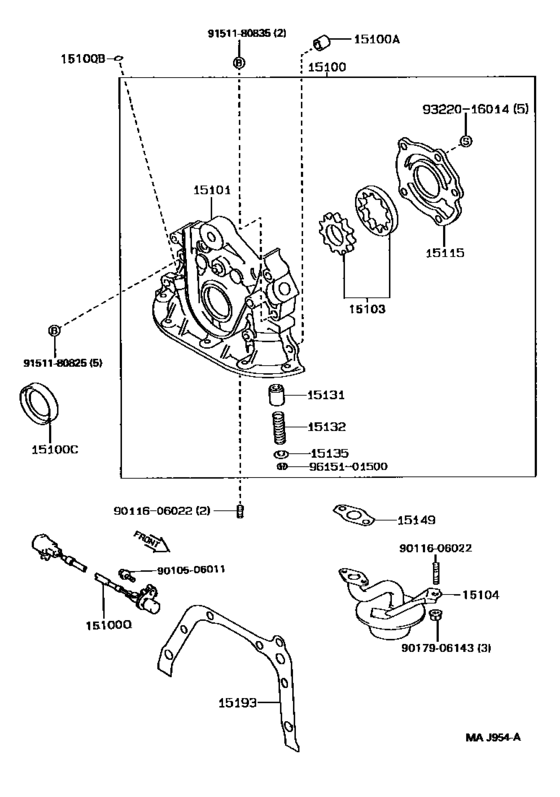

| 15011-16070 |
Body Sub-Assy, Oil Pump |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 15100-16070 |
Pump Assy, Oil |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 15103-15020 |
Gear Set, Oil Pump |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 15104-16060 |
Strainer Sub-Assy, Oil |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 15115-15020 |
Cover, Oil Pump |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 15131-24010 |
Valve, Oil Pump Relief |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 15132-40010 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 15135-15010 |
Retainer, Oil Pump Relief Valve |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 15149-16010 |
Gasket, Oil Strainer Flange |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 15197-16010 |
Gasket, Oil Pump |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 90105-06011 |
BOLT |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 90116-06022 |
Bolt, Stud(For Valve Push Rod Cover) |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 90179-06143 |
NUT |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 90253-11021 |
Pin, Ring |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 90311-32018 |
Seal(For Oil Pump) |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 90311-32020 |
Oil Seal |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 90919-05011 |
Sensor, Crank Position |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 91511-80825 |
BOLTFLANGE |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 91511-80835 |
Bolt(For Transaxle Case & Engine Setting) |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 91511-C0835 |
Bolt(For Transaxle Case & Engine Setting) |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 93220-16014 |
SCREW |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 96151-01500 |
Ring, Hole Snap (For Pressure Regulator Valve Set) |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
| 96721-19010 |
Ring, O(For Oil Level Gage Guide) |
Engine Oil Pump ([01.1996 - 08.1997] (9601-9708)7AFE) |
