Search › Model › AT180
AT180

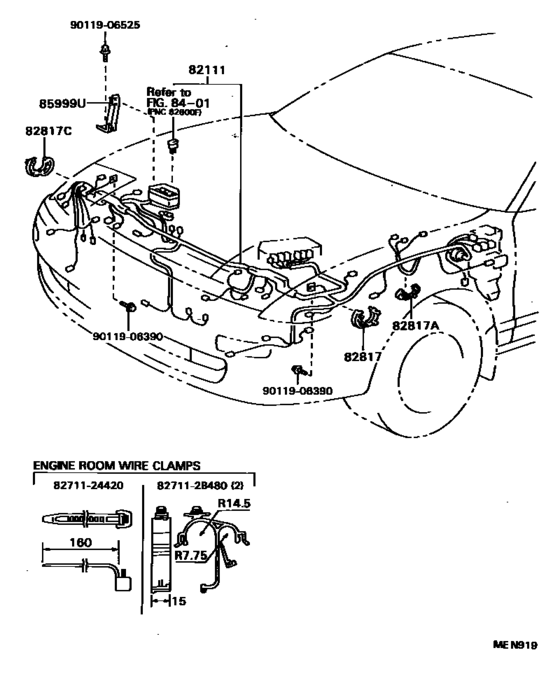

Wiring & Clamp ([10.1989 - ] ENGINE ROOM WIRE (8910- )LHD) 9
| # | OEM | Part name |
|---|---|---|
| 82111 | 82111-2G080 | Wire, Engine Room Main |
| 82817 | 82817-2B200 | Protector, Wiring Harness, No.1 |
| 82817 | 82817-2B730 | Protector, Wiring Harness, No.1 |
| 85999 | 85999-20360 | Bracket, Relay Block |
| 827112 | 82711-2B480 | Wire, Fuse To Fuse(for Combustion Heater) |
| 8271124420 | 82711-24420 | Wire, Fuse To Fuse(for Combustion Heater) |
| 9011906390 | 90119-06390 | BOLT WWASHER |
| 9011906525 | 90119-06525 | New Genuine Part |
| 9011906525 | 90119-06311 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 82111-2G080 | Wire, Engine Room Main | Wiring & Clamp ([10.1989 - ] ENGINE ROOM WIRE (8910- )LHD) |
| 82711-24420 | Wire, Fuse To Fuse(for Combustion Heater) | Wiring & Clamp ([10.1989 - ] ENGINE ROOM WIRE (8910- )LHD) |
| 82711-2B480 | Wire, Fuse To Fuse(for Combustion Heater) | Wiring & Clamp ([10.1989 - ] ENGINE ROOM WIRE (8910- )LHD) |
| 82817-2B200 | Protector, Wiring Harness, No.1 | Wiring & Clamp ([10.1989 - ] ENGINE ROOM WIRE (8910- )LHD) |
| 82817-2B730 | Protector, Wiring Harness, No.1 | Wiring & Clamp ([10.1989 - ] ENGINE ROOM WIRE (8910- )LHD) |
| 85999-20360 | Bracket, Relay Block | Wiring & Clamp ([10.1989 - ] ENGINE ROOM WIRE (8910- )LHD) |
| 90119-06311 | BOLT | Wiring & Clamp ([10.1989 - ] ENGINE ROOM WIRE (8910- )LHD) |
| 90119-06390 | BOLT WWASHER | Wiring & Clamp ([10.1989 - ] ENGINE ROOM WIRE (8910- )LHD) |
| 90119-06525 | New Genuine Part | Wiring & Clamp ([10.1989 - ] ENGINE ROOM WIRE (8910- )LHD) |
