Search › Model › AT180

AT180

Toyota CELICA · 1989 · 5,245 parts · 281 categories

5,245 items

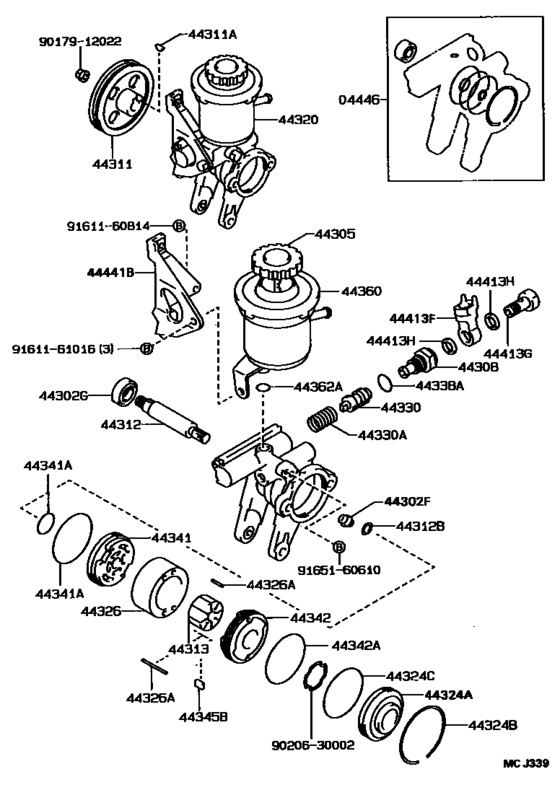

Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180) 66

#	OEM	Part name
4446	04446-20030	Gasket Kit, Power Steering Pump
4446	04446-20031	Gasket Kit, Power Steering Pump
44302	90410-05035	Seat, Union(For Valve Body Housing)
44302	90311-18007	Seal, Oil, No.2(For Vane Pump Housing)
44305	44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-20020	Union Sub-Assy, Pressure Port
44311	44311-12040	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	44312-12030	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-22040	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44320	44320-20241	Pump Assy, Vane
44324	44324-12031	Housing Sub-Assy, Vane Pump, Rear
44324	90521-62002	Ring, Snap, No.1(For Vane Pump Housing)
44324	90301-52001	Ring, O(For Pump Housing Rear)
44326	44325-12110	Ring, Fixed(For Vane Pump)
44326	44325-12120	Ring, Fixed(For Vane Pump)
44326	44325-12130	Ring, Fixed(For Vane Pump)
44326	44325-12140	Ring, Fixed(For Vane Pump)
44326	44325-12150	Ring, Fixed(For Vane Pump)
44326	90250-04047	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-04049	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-20250	Valve Assy, Flow Control
44330	44330-32730	Valve Assy, Flow Control
44330	44330-20260	Valve Assy, Flow Control
44330	44330-32740	Valve Assy, Flow Control
44330	44330-20270	Valve Assy, Flow Control
44330	44330-32750	Valve Assy, Flow Control
44330	44330-20280	Valve Assy, Flow Control
44330	44330-32760	Valve Assy, Flow Control
44330	44330-20290	Valve Assy, Flow Control
44330	44330-32770	Valve Assy, Flow Control
44330	44330-20300	Valve Assy, Flow Control
44330	44330-32780	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44338	90301-19003	Ring, O(For Pressure Port Union)
44338	90301-19018	Ring, O(For Pressure Port Union)
44341	44341-32010	Plate, Vane Pump Side, Front
44341	90301-25001	Ring, O(For Vane Pump Front Side Plate)
44341	90301-25008	Ring, O(For Vane Pump Front Side Plate)
44342	44342-32010	Plate, Vane Pump Side, Rear
44345	44345-12010	Plate, Vane Pump
44345	44345-12020	Plate, Vane Pump
44345	44345-12030	Plate, Vane Pump
44345	44345-12040	Plate, Vane Pump
44345	44345-12050	Plate, Vane Pump
44360	44306-20091	Reservoir Assy, Vane Pump Oil
44360	44306-20071	Reservoir Assy, Vane Pump Oil
44362	90301-12003	Ring, O(For Power Steering Suction Port)
44362	90301-11016	Ring, O(For Power Steering Suction Port)
44413	44413-12150	Tube, Pressure Feed, No.2
44413	90401-16008	Bolt, Union(For Pressure Feed Tube)
44413	90430-16242	Gasket, W/head Straight Screw Plug
44441	44441-12040	Bracket, Pump, Front
9017912022	90179-12022	Nut(For Vane Pump Pulley)
9020630002	90206-30002	New Genuine Part
9161160814	91611-60814	Bolt
9161161016	91611-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161016	91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9165160610	91651-60610	BOLT
9165160610	91651-B0610	BOLTWWASHER

OEM	Part name	Category
04446-20030	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
04446-20031	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44306-20071	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44306-20091	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44308-20020	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44311-12040	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44312-12030	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44320-20241	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44324-12031	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44325-12110	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44325-12120	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44325-12130	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44325-12140	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44325-12150	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44330-20250	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44330-20260	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44330-20270	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44330-20280	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44330-20290	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44330-20300	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44330-32730	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44330-32740	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44330-32750	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44330-32760	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44330-32770	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44330-32780	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44341-32010	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44342-32010	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44413-12150	Tube, Pressure Feed, No.2	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
44441-12040	Bracket, Pump, Front	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90179-12022	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90206-30002	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90250-04047	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90250-04049	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90301-12003	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90301-19003	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90301-25001	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90301-25008	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90301-52001	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90311-18007	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90401-16008	Bolt, Union(For Pressure Feed Tube)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90410-05035	Seat, Union(For Valve Body Housing)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90430-16242	Gasket, W/head Straight Screw Plug	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
90521-62002	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
91611-60814	Bolt	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
91611-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
91651-60610	BOLT	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
91651-B0610	BOLTWWASHER	Vane Pump & Reservoir (Power Steering) ([08.1990 - ] (9008- )AT180)
