Search › Model › AT175

AT175

Toyota CARINA · 1988 · 4,897 parts · 196 categories

4,897 items

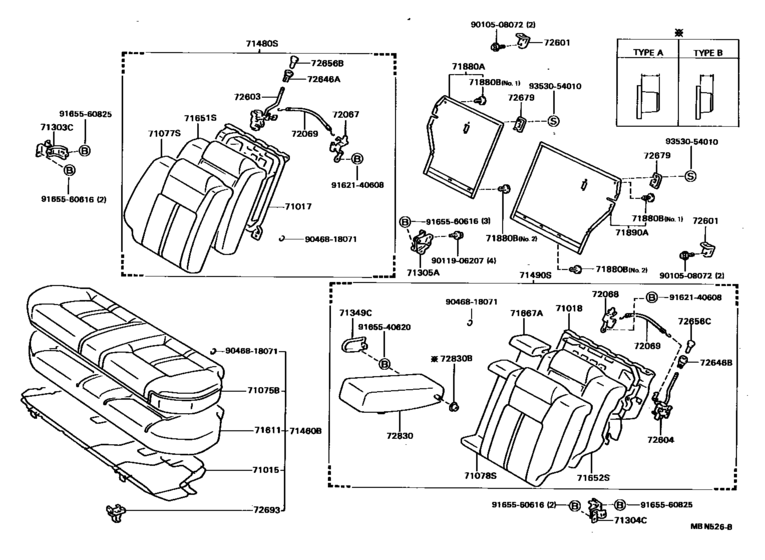

Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE) 24

#	OEM	Part name
71015	71015-20300	Frame Sub-Assy, Rear Seat Cushion
71075	71075-2B550-03	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-2B550-04	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-2B550-06	Cover, Rear Seat Cushion (For Bench Type)
71460	71560-2B040-03	Cushion Assy, Rear Seat (For Bench Type)
71460	71560-2B040-04	Cushion Assy, Rear Seat (For Bench Type)
71460	71560-2B040-06	Cushion Assy, Rear Seat (For Bench Type)
71611	71611-20530	Pad, Rear Seat Cushion
72693	72693-20010	Hook, Rear Seat Cushion Lock
9010508072	90105-08072	New Genuine Part
9010508072	90105-08145	BOLT
9011906207	90119-06207	Bolt(For Transaxle Case Receiver)
9011906207	91611-B0616	Bolt(For Transaxle Case Receiver)
9046818071	90468-18071	Clip (For Front Seat Cushion Cover)
9046818071	90468-16019	Clip (For Rear Seat Back)
9162140608	91621-40608	New Genuine Part
9165540620	91655-40620	Bolt(For Oil Receiver Pipe)
9165540620	91651-60618	Bolt(For Oil Receiver Pipe)
9165560616	91655-60616	Bolt (For Rear Differential Breather Plug Oil Deflector)
9165560616	91651-60614	Bolt
9165560825	91655-60825	Bolt, Radiator Side Support Plate
9165560825	91651-B0820	Bolt, Radiator Side Support Plate
9353054010	93530-54010	SCREW
9353054010	90084-16012	SCREW

OEM	Part name	Category
71015-20300	Frame Sub-Assy, Rear Seat Cushion	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
71075-2B550-03	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
71075-2B550-04	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
71075-2B550-06	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
71560-2B040-03	Cushion Assy, Rear Seat (For Bench Type)	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
71560-2B040-04	Cushion Assy, Rear Seat (For Bench Type)	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
71560-2B040-06	Cushion Assy, Rear Seat (For Bench Type)	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
71611-20530	Pad, Rear Seat Cushion	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
72693-20010	Hook, Rear Seat Cushion Lock	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
90084-16012	SCREW	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
90105-08072	New Genuine Part	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
90105-08145	BOLT	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
90119-06207	Bolt(For Transaxle Case Receiver)	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
90468-16019	Clip (For Rear Seat Back)	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
90468-18071	Clip (For Front Seat Cushion Cover)	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
91611-B0616	Bolt(For Transaxle Case Receiver)	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
91621-40608	New Genuine Part	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
91651-60614	Bolt	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
91651-60618	Bolt(For Oil Receiver Pipe)	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
91651-B0820	Bolt, Radiator Side Support Plate	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
91655-40620	Bolt(For Oil Receiver Pipe)	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
91655-60616	Bolt (For Rear Differential Breather Plug Oil Deflector)	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
91655-60825	Bolt, Radiator Side Support Plate	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
93530-54010	SCREW	Rear Seat & Seat Track ([05.1988 - ] (8805- )GLIM,S,SE)
