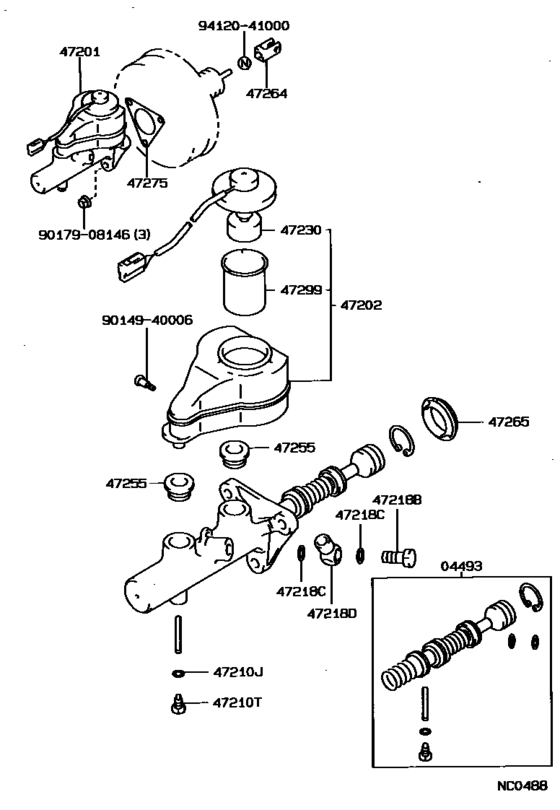

| 04493-12170 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 04493-32040 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 04493-33030 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 47201-20630 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 47201-20770 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 47202-20320 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 47202-20350 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 47255-16010 |
Grommet, Master Cylinder Reservoir |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 47264-20040 |
Clevis, Master Cylinder Push Rod |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 47265-20050 |
Boot, Clutch Master Cylinder |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 47275-32010 |
Gasket, Brake Master Cylinder |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 47299-32010 |
Strainer, Brake Master Cylinder Reservoir |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 84460-12070 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 90109-06008 |
Bolt(For Brake Master Cylinder) |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 90109-06077 |
Bolt(For Brake Master Cylinder) |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 90149-40006 |
Bolt |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 90170-A0002 |
Nut |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 90179-08146 |
Nut |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 90179-08204 |
Nut |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 90401-10023 |
Bolt, Union(For Master Cylinder Fluid Outlet) |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 90405-10073 |
Union(For Clutch Master Cylinder) |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 90430-06104 |
Gasket(For Brake Actuator) |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 90430-10074 |
Gasket(For Oil Pressure Regulator) |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
| 94120-41000 |
Nut(For Clutch Pedal Stopper) |
Brake Master Cylinder ([08.1988 - ] ｱﾘ(ESC) (8805- )AT171 ; (8808- )AT170,175,ST170..S E,SG,SGEXT,SX) |
