Search › Model › AT171

AT171

Toyota CARINA · 1987 · 5,067 parts · 194 categories

5,067 items

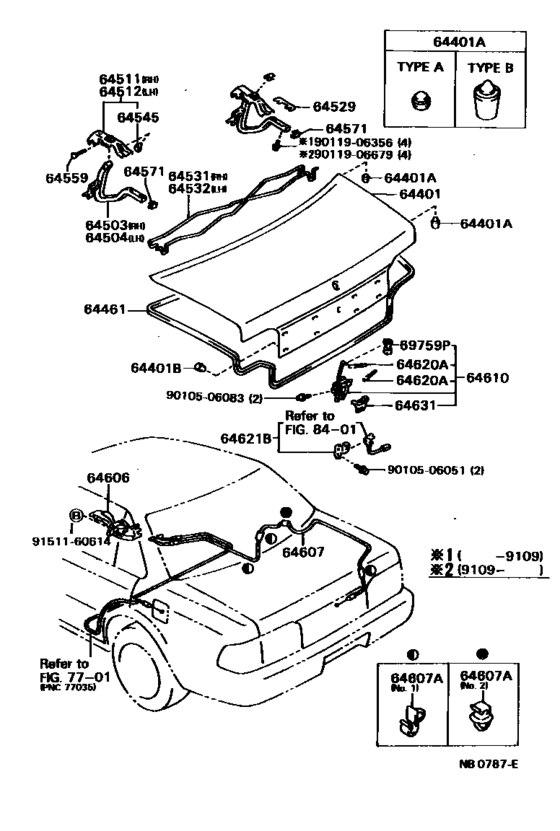

Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED) 42

#	OEM	Part name
64401	64401-2B431	Panel Sub-Assy, Luggage Compartment Door
64401	90541-06076	Cushion(For Luggage Compartment Door Panel)
64401	90541-06056	Cushion(For Luggage Compartment Door Panel)
64401	90541-09043	Cushion(For Luggage Compartment Door Panel)
64401	90950-01036	Plug, Hole(For Luggage Compartment Door Panel)
64461	64461-20300	Weatherstrip, Luggage Compartment Door
64503	64503-20050	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
64511	64511-20150	Support, Luggage Compartment Door Hinge, Rh
64512	64512-20150	Support, Luggage Compartment Door Hinge, Lh
64529	64529-14010	Spacer, Luggage Compartment Door Hinge
64531	64531-20230	Bar, Luggage Door Hinge Torsion, Rh
64531	64531-20250	Bar, Luggage Door Hinge Torsion, Rh
64531	64531-20350	Bar, Luggage Door Hinge Torsion, Rh
64531	64531-20360	Bar, Luggage Door Hinge Torsion, Rh
64532	64532-20230	Bar, Luggage Door Hinge Torsion, Lh
64532	64532-20250	Bar, Luggage Door Hinge Torsion, Lh
64532	64532-20350	Bar, Luggage Door Hinge Torsion, Lh
64532	64532-20360	Bar, Luggage Door Hinge Torsion, Lh
64545	90541-07016	Cushion, Luggage Door Hinge
64559	64559-32010	Pin, Luggage Door Hinge
64571	64571-30020	Cover, Luggage Compartment Door Hinge
64606	64606-20080	Lever Sub-Assy, Luggage Door Lock Open
64606	64606-20081	Lever Sub-Assy, Luggage Door Lock Open
64607	64607-20500	Cable Sub-Assy, Luggage Door Lock Control
64607	64607-20720	Cable Sub-Assy, Luggage Door Lock Control
64607	69749-12010	Clamp(For Hood Lock Control Cable)
64610	64610-20180	Lock Assy, Luggage Compartment Door
64620	90506-05001	Spring, Tension(For Lock)
64620	90506-05002	Spring, Tension(For Lock)
64621	64620-20110	Striker, Luggage Compartment Door Lock
64621	64621-12070	Striker Assy, Luggage Compartment Door
64621	84231-20290	Switch Assy, Courtesy Lamp(For Luggage Compartment Room)
64621	93315-15010	New Genuine Part
64631	64631-20010	Protector, Luggage Door Lock
69759	69759-20100	Snap, Tail Gate Handle
9010506051	90105-06051	New Genuine Part
9010506051	90105-06168	BOLT WASHER BASED
9010506083	90105-06083	New Genuine Part
9011906356	90119-06356	New Genuine Part
9011906679	90119-06679	New Genuine Part
9151160614	91511-60614	LEXBOLT
9151160614	91511-B0614	BOLT, FLANGE

OEM	Part name	Category
64401-2B431	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64461-20300	Weatherstrip, Luggage Compartment Door	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64503-20050	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64511-20150	Support, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64512-20150	Support, Luggage Compartment Door Hinge, Lh	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64529-14010	Spacer, Luggage Compartment Door Hinge	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64531-20230	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64531-20250	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64531-20350	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64531-20360	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64532-20230	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64532-20250	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64532-20350	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64532-20360	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64559-32010	Pin, Luggage Door Hinge	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64571-30020	Cover, Luggage Compartment Door Hinge	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64606-20080	Lever Sub-Assy, Luggage Door Lock Open	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64606-20081	Lever Sub-Assy, Luggage Door Lock Open	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64607-20500	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64607-20720	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64610-20180	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64620-20110	Striker, Luggage Compartment Door Lock	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64621-12070	Striker Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
64631-20010	Protector, Luggage Door Lock	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
69749-12010	Clamp(For Hood Lock Control Cable)	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
69759-20100	Snap, Tail Gate Handle	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
84231-20290	Switch Assy, Courtesy Lamp(For Luggage Compartment Room)	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
90105-06051	New Genuine Part	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
90105-06083	New Genuine Part	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
90105-06168	BOLT WASHER BASED	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
90119-06356	New Genuine Part	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
90119-06679	New Genuine Part	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
90506-05001	Spring, Tension(For Lock)	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
90506-05002	Spring, Tension(For Lock)	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
90541-06056	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
90541-06076	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
90541-07016	Cushion, Luggage Door Hinge	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
90541-09043	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
90950-01036	Plug, Hole(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
91511-60614	LEXBOLT	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
91511-B0614	BOLT, FLANGE	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
93315-15010	New Genuine Part	Luggage Compartment Door & Lock ([05.1988 - ] (8805- )SED)
