Search › Model › AT171

AT171

Toyota CARINA · 1987 · 5,067 parts · 194 categories

5,067 items

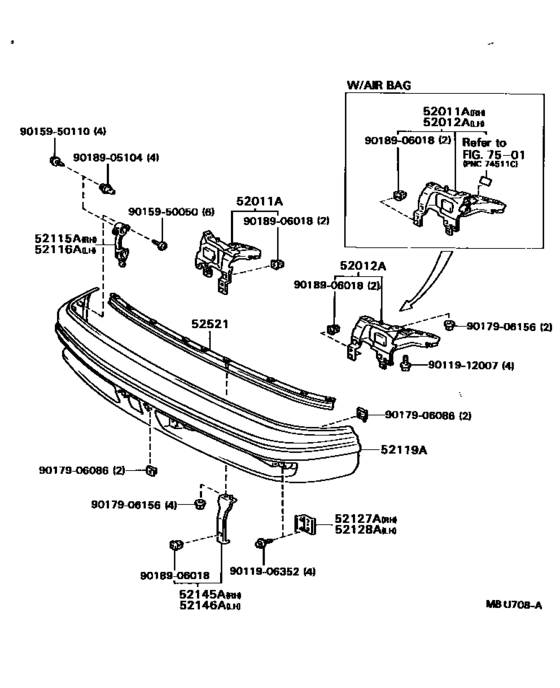

Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170) 39

#	OEM	Part name
52011	52011-20250	Arm Sub-Assy, Front Bumper, Rh
52011	52011-20260	Arm Sub-Assy, Front Bumper, Rh
52012	52012-20210	Arm Sub-Assy, Front Bumper, Lh
52012	52012-20220	Arm Sub-Assy, Front Bumper, Lh
52115	52115-20250	Support, Front Bumper Side, Rh
52119	52119-20511-02	Cover, Front Bumper
52119	52119-20710	Cover, Front Bumper
52119	52119-20511-04	Cover, Front Bumper
52119	52119-20511-08	Cover, Front Bumper
52119	52119-20511-17	Cover, Front Bumper
52119	52119-20521-03	Cover, Front Bumper
52119	52119-20521-07	Cover, Front Bumper
52119	52119-20521-08	Cover, Front Bumper
52119	52119-20521-13	Cover, Front Bumper
52119	52119-20521-17	Cover, Front Bumper
52119	52119-20521-18	Cover, Front Bumper
52119	52119-20740-02	Cover, Front Bumper
52119	52119-20740-04	Cover, Front Bumper
52119	52119-20740-08	Cover, Front Bumper
52119	52119-20740-17	Cover, Front Bumper
52119	52119-20942	Cover, Front Bumper
52119	52119-20750-03	Cover, Front Bumper
52119	52119-20750-07	Cover, Front Bumper
52119	52119-20750-08	Cover, Front Bumper
52119	52119-20750-13	Cover, Front Bumper
52119	52119-20750-17	Cover, Front Bumper
52119	52119-20750-18	Cover, Front Bumper
52127	52127-20070	Bracket, Front Turn Signal Lamp Mounting, Rh
52145	52144-20200	Stay, Front Bumper, No.2 Rh
52521	52521-20130	Retainer, Front Bumper, Upper Center
9011906352	90119-06352	New Genuine Part
9011906352	90119-06430	BOLT WWASHER
9011912007	90119-12007	New Genuine Part
9015950050	90159-50050	New Genuine Part
9015950110	90159-50110	SCREW
9017906086	90179-06086	NUT
9017906156	90179-06156	Nut (For Transmission Control Cable)
9018905104	90189-05104	WASHER
9018906018	90189-06018	GROMMET

OEM	Part name	Category
52011-20250	Arm Sub-Assy, Front Bumper, Rh	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52011-20260	Arm Sub-Assy, Front Bumper, Rh	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52012-20210	Arm Sub-Assy, Front Bumper, Lh	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52012-20220	Arm Sub-Assy, Front Bumper, Lh	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52115-20250	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20511-02	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20511-04	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20511-08	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20511-17	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20521-03	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20521-07	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20521-08	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20521-13	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20521-17	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20521-18	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20710	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20740-02	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20740-04	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20740-08	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20740-17	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20750-03	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20750-07	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20750-08	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20750-13	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20750-17	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20750-18	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52119-20942	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52127-20070	Bracket, Front Turn Signal Lamp Mounting, Rh	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52144-20200	Stay, Front Bumper, No.2 Rh	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
52521-20130	Retainer, Front Bumper, Upper Center	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
90119-06352	New Genuine Part	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
90119-06430	BOLT WWASHER	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
90119-12007	New Genuine Part	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
90159-50050	New Genuine Part	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
90159-50110	SCREW	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
90179-06086	NUT	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
90179-06156	Nut (For Transmission Control Cable)	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
90189-05104	WASHER	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
90189-06018	GROMMET	Front Bumper & Bumper Stay ([05.1990 - ] (9005- )AT17#,CT170,ST170)
