Search › Model › AT170

AT170

Toyota CARINA · 1988 · 4,225 parts · 194 categories

4,225 items

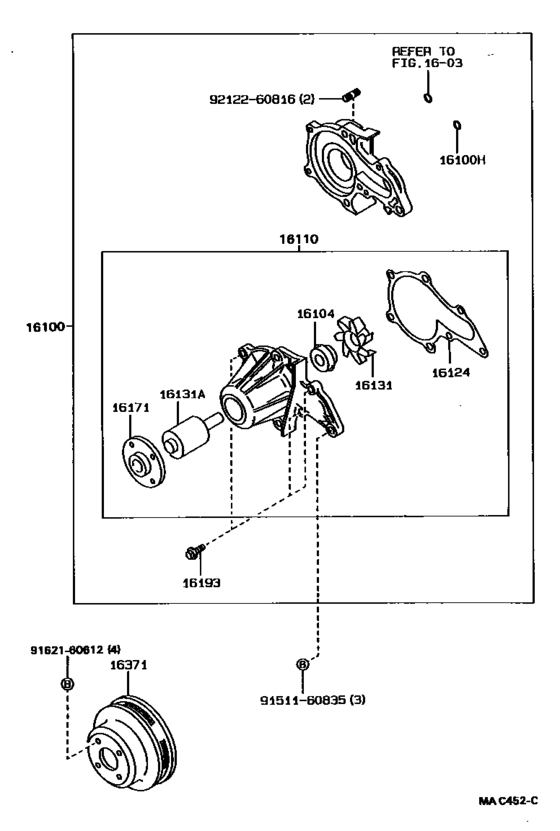

Water Pump ([05.1988 - ] (8805- )4AF#,5AF#) 28

#	OEM	Part name
16100	16100-19205	Pump Assy, Engine Water
16100	16100-19205-84	Pump Assy, Engine Water
16100	96711-24035	Ring, O(For Water Pump)
16100	96761-24035	Ring, O(For Water Pump)
16104	16104-15060	Seal Set, Water Pump
16104	16104-16040	Seal Set, Water Pump
16104	16104-70010	Seal Set, Water Pump
16110	16110-19076	Pump Assy, Water, W/o Coupling
16110	16110-19086	Pump Assy, Water, W/o Coupling
16124	16124-15061	Gasket, Water Pump Cover
16124	16124-16020	Gasket, Water Pump Cover
16131	16131-15070	Rotor, Water Pump
16131	16131-15080	Rotor, Water Pump
16131	90369-35043	Bearing, Water Pump
16131	90369-35071	Bearing, Water Pump
16171	16171-10012	Seat, Water Pump Pulley
16171	16171-15050	Seat, Water Pump Pulley
16171	16171-15070	Seat, Water Pump Pulley
16193	16193-15011	Bolt, Stud(For Water Pump Cover)
16193	16193-15060	Bolt, Stud(For Water Pump Cover)
16193	16193-15100	Bolt, Stud(For Water Pump Cover)
16371	16371-15050	Pulley, Fan
16371	16371-15071	Pulley, Fan
9151160835	91511-60835	Bolt(For Cylinder Head Set Sub)
9151160835	90105-08200	Bolt(For Cylinder Head Set Sub)
9162160612	91621-60612	BOLTWWASHER
9162160612	91621-J0612	BOLT W-WASHER
9212260816	92122-60816	Bolt, Stud(For Water Pump Set)

OEM	Part name	Category
16100-19205	Pump Assy, Engine Water	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16100-19205-84	Pump Assy, Engine Water	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16104-15060	Seal Set, Water Pump	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16104-16040	Seal Set, Water Pump	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16104-70010	Seal Set, Water Pump	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16110-19076	Pump Assy, Water, W/o Coupling	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16110-19086	Pump Assy, Water, W/o Coupling	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16124-15061	Gasket, Water Pump Cover	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16124-16020	Gasket, Water Pump Cover	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16131-15070	Rotor, Water Pump	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16131-15080	Rotor, Water Pump	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16171-10012	Seat, Water Pump Pulley	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16171-15050	Seat, Water Pump Pulley	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16171-15070	Seat, Water Pump Pulley	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16193-15011	Bolt, Stud(For Water Pump Cover)	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16193-15060	Bolt, Stud(For Water Pump Cover)	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16193-15100	Bolt, Stud(For Water Pump Cover)	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16371-15050	Pulley, Fan	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
16371-15071	Pulley, Fan	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
90105-08200	Bolt(For Cylinder Head Set Sub)	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
90369-35043	Bearing, Water Pump	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
90369-35071	Bearing, Water Pump	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
91511-60835	Bolt(For Cylinder Head Set Sub)	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
91621-60612	BOLTWWASHER	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
91621-J0612	BOLT W-WASHER	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
92122-60816	Bolt, Stud(For Water Pump Set)	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
96711-24035	Ring, O(For Water Pump)	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
96761-24035	Ring, O(For Water Pump)	Water Pump ([05.1988 - ] (8805- )4AF#,5AF#)
